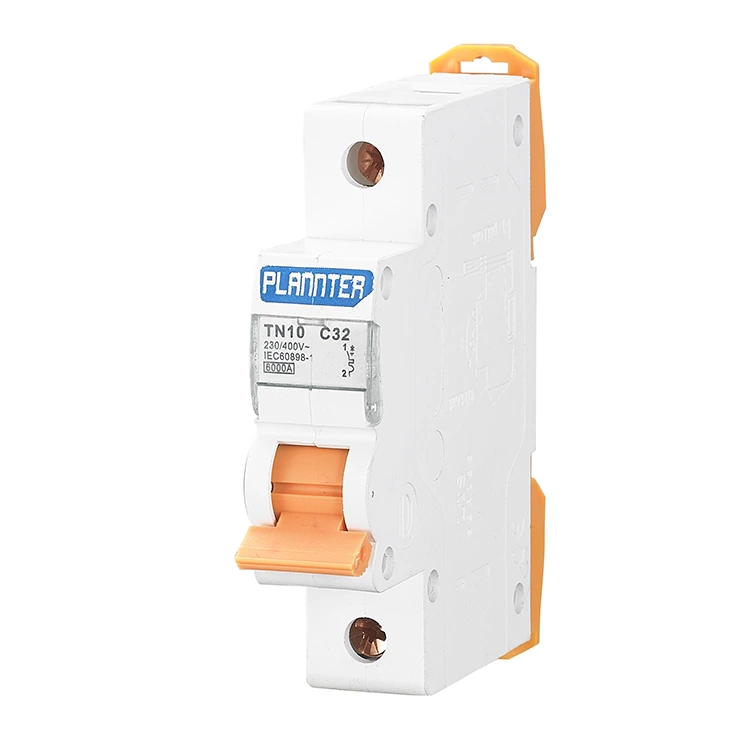

China Knife Switch Fuse Replacement Circuit Breaker Device Manufacturer, Supplier, Factory

Pugao supplies Knife Switch Fuse Replacement Circuit Breaker Device for factories, maintenance teams, and equipment upgrade projects where traditional knife switches with replaceable fuses are still in service. Many older electrical systems continue using fuse-based protection because of their simple structure, but daily operation becomes less efficient when short circuit faults occur.

After a fuse operates, the circuit cannot return to service until the damaged fuse is removed and replaced. This process requires spare fuse inventory, manual intervention, and correct fuse selection. In some workshops, improper replacement practices such as using oversized wire instead of a proper fuse may occur, creating additional electrical risks.

The Knife Switch Fuse Replacement Circuit Breaker Device provides a modernization approach by replacing disposable fuse protection with resettable circuit breaker operation. After troubleshooting the fault condition, operators can restore the circuit through a simple reset action without purchasing and installing a new fuse.

Replacing Fuse-Based Protection In Existing Electrical Systems

Traditional knife switch and fuse combinations were widely used in earlier electrical installations because they provided a straightforward method for circuit control and protection.

However, the maintenance process becomes inconvenient when equipment experiences repeated faults.

Typical problems include:

For factories operating older machinery, these issues can increase maintenance workload and extend equipment downtime.

Replacing the fuse-based arrangement with a circuit breaker changes the maintenance method. Instead of replacing a damaged protective element after every fault, the operator can identify the cause of the trip and restore operation after the issue has been resolved.

This makes the Knife Switch Fuse Replacement Circuit Breaker Device suitable for electrical modernization projects where improving maintenance efficiency is a priority.

From One-Time Fuse Failure To Reusable Circuit Protection

The main difference between fuse protection and circuit breaker protection is the recovery process after a fault.

With a resettable structure, the breaker can be reused after the fault has been identified and corrected.

The operating process becomes:

1. Electrical fault occurs.
2. Breaker detects abnormal current.
3. Circuit disconnects automatically.
4. Technician checks and removes the fault cause.
5. Operator resets the breaker to restore power.

This approach reduces unnecessary replacement work and provides a more standardized maintenance procedure.

Removing The Hidden Risk Behind Improper Fuse Replacement

One of the major concerns with traditional fuse systems is not only the fuse failure itself, but what happens afterward.

In some operating environments, damaged fuses may be replaced incorrectly because of:

A common unsafe practice is replacing a fuse element with copper wire or other unsuitable materials. This changes the intended protection characteristics and may allow excessive current to flow through cables and equipment.

The Knife Switch Fuse Replacement Circuit Breaker Device removes the need for manual fuse substitution by using an integrated protection mechanism.

Benefits for maintenance management include:

For factories upgrading aging electrical systems, replacing fuse-based protection can improve both maintenance control and operational standardization.

Retrofit Existing Equipment Without Rebuilding The Whole Circuit

Modernization projects often need to balance electrical improvement with installation cost and downtime.

Replacing traditional fuse assemblies does not always require a complete redesign of the power system.

The device can be considered for:

Aging Distribution Boxes

Older electrical boxes may still use fuse-based protection components. Replacing outdated protection units can improve maintenance convenience while retaining the existing power distribution concept.

Factory Machinery Upgrades

Many machines remain mechanically functional but use older electrical protection methods.

During refurbishment projects, upgrading the protection device can improve daily operation without replacing the entire machine.

Electrical Panel Renovation

Maintenance contractors can use updated circuit protection components when renewing existing control panels or distribution assemblies.

Before replacement, buyers should confirm:

Correct evaluation helps ensure compatibility between the new protection device and the existing electrical system.

A Modern Alternative To Traditional Knife Switch Assemblies

The Knife Switch Fuse Replacement Circuit Breaker Device combines the familiar role of traditional fuse protection with modern resettable operation.

Compared with a separate knife switch and fuse arrangement, the circuit breaker provides:

The device is based on a low-voltage circuit breaker structure equipped with:

This design allows the breaker to respond to different fault conditions while maintaining a practical operation method for industrial electrical systems.

Protection Technology Inside The Replacement Device

The internal protection system includes two different response mechanisms.

Thermal Release For Overload Conditions

When current exceeds the normal operating range for an extended period, heat accumulates inside the protection element.

The bimetallic strip responds to this temperature increase and activates the release mechanism to disconnect the circuit.

This helps protect:

Electromagnetic Release For Short Circuit Events

Short circuits create a sudden increase in current.

The electromagnetic coil detects this rapid change and generates a magnetic force that activates the trip mechanism.

The contacts separate quickly to interrupt the fault current and reduce damage caused by excessive electrical energy.

Arc Extinguishing Structure

When contacts separate during interruption, an electrical arc is generated.

The internal arc extinguishing device helps control the arc during circuit breaking operation.

Selection Guide For Replacement Projects

Before purchasing a replacement device, buyers should compare the existing electrical system with the required breaker specifications.

The correct selection depends on the original fuse application and the electrical characteristics of the upgraded system.

Upgrade Scenarios Where Fuse Replacement Matters Most

Old Factory Machinery

Many factories operate equipment installed years ago. Replacing outdated fuse protection can simplify maintenance procedures and reduce dependence on replacement parts.

Electrical Control Panel Renovation

Panel builders and maintenance contractors may upgrade protection components during electrical cabinet refurbishment.

Production Line Maintenance Programs

For production environments where downtime affects output, reducing the time required for protection device recovery can improve maintenance efficiency.

Workshop Electrical Improvements

Small and medium workshops may modernize existing power distribution systems by replacing older fuse-based components with resettable protection devices.

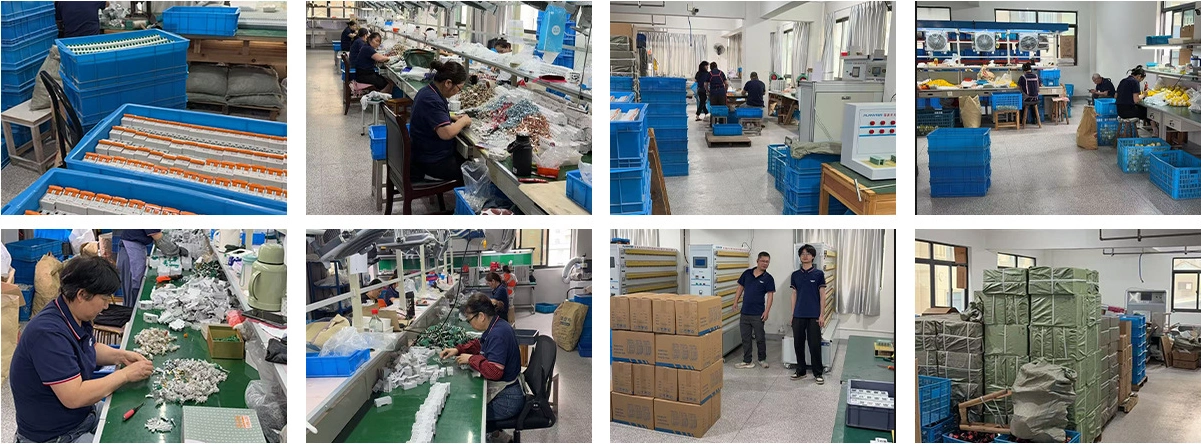

Pugao Manufacturing Capability For Electrical Upgrade Projects

Zhejiang Pugao Electric Power Co., Ltd. (Plannter Electric) has specialized in low-voltage electrical equipment manufacturing since 2011.

Pugao operates manufacturing facilities including:

The company established its Yiwu Foreign Trade Department in 2012 and has mainly served international markets. In 2024, Pugao passed ISO9001 international quality system certification.

Questions Before Starting A Fuse Replacement Project

Why replace a fuse system with a circuit breaker?

A circuit breaker provides resettable protection, while a fuse must be replaced after operation. The breaker reduces routine replacement work and simplifies recovery after faults.

Can the breaker completely replace a knife switch and fuse combination?

The replacement suitability depends on the existing electrical system, voltage, current, installation method, and application requirements.

Does resetting the breaker remove the fault?

No. Resetting should only be performed after the cause of the trip has been identified and corrected.

Why is replacing copper wire for a fuse dangerous?

Copper wire does not provide the same protection characteristics as a correctly selected fuse. It may allow excessive current and increase risks to wiring and equipment.

What information should buyers provide before ordering?

Buyers should provide:

For factories upgrading older electrical systems, the Knife Switch Fuse Replacement Circuit Breaker Device provides a practical transition from disposable fuse protection to resettable circuit protection. By reducing manual replacement work, eliminating improper fuse substitution practices, and supporting modernization projects, Pugao helps distributors, maintenance teams, and equipment builders update traditional electrical protection systems.
