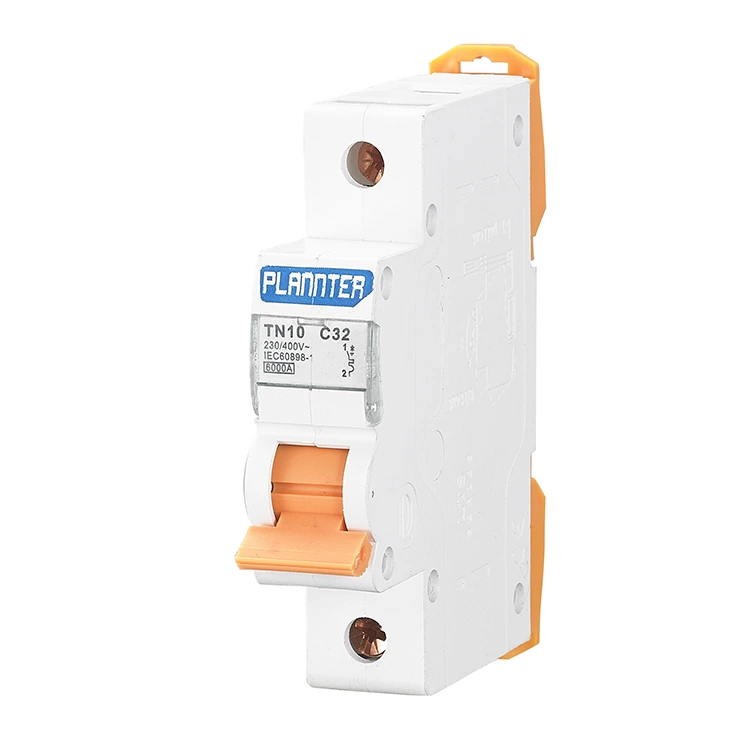

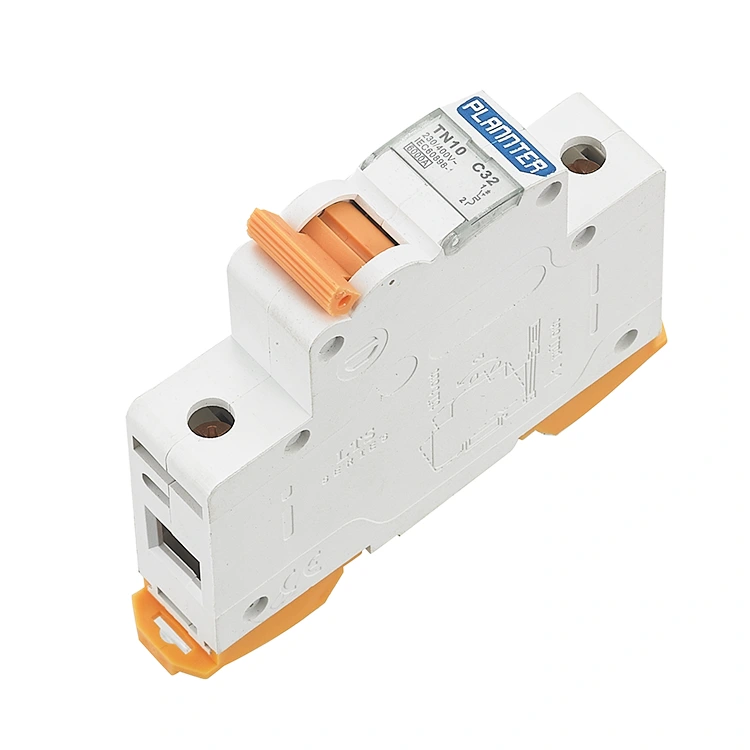

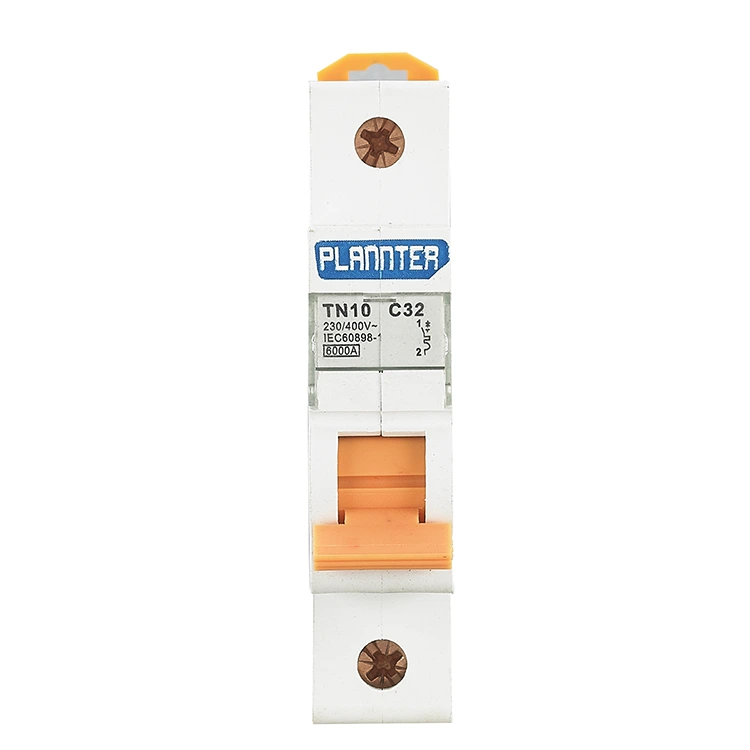

Circuit Breakers for Short Circuit Protection

A Circuit Breakers for Short Circuit Protection is a low-voltage power distribution appliance. It is equipped with an arc extinguishing device that effectively protects the circuit. In domestic and industrial environments, circuit breakers play a similar role to the combination of electrical components such as knife switches, fuses and thermal relays to ensure the safe operation of circuits.

Working Principle

Internally, the circuit breaker features two primary protective mechanisms: a bimetallic strip designed to address gradual overloads, and an electromagnetic coil dedicated to handling short circuits. To ensure the automatic disconnection of the circuit within a matter of milliseconds, the device executes the following operational sequence when triggered:

Instantaneous Sensing: When a short circuit occurs, a massive surge of current flows through the coil located inside the circuit breaker.

Magnetic Force Generation: In accordance with the principles of electromagnetic induction, this exceptionally high current instantly generates an immensely powerful magnetic field.

Mechanical Impact: The force generated by this magnetic field acts like a heavy hammer, delivering an instantaneous impact to the tripping mechanism.

Rapid Disconnection: The electrical contacts are forcibly thrown open within milliseconds, abruptly interrupting the current flow and thereby preventing the wiring from melting due to extreme heat or catching fire.

Types of circuit breaker poles

1. Single-pole circuit breakers: Circuit Breakers for Short Circuit Protections have only one switching contact and are mainly used for single-phase circuits, such as lighting circuits or sockets in the home.

2. Double-pole circuit breakers: double-pole circuit breakers have two switching contacts to control the phase and neutral wires. Double-pole circuit breakers are usually used in scenarios where both the phase and neutral wires need to be controlled at the same time, such as motor controls or two-phase power systems.

3. 3-Pole Circuit Breakers: 3-pole circuit breakers have three switching contacts that control three separate phase wires, such as commercial and industrial equipment, which require simultaneous control of three separate power lines to ensure safe and balanced load distribution.

Advantages

1. This Circuit Breakers for Short Circuit Protections adopts the standard 35mm DIN rail mounting method, and adopts high-precision magnetic-thermal double release mechanism to cope with instantaneous inrush current;

2. Enhanced insulation system design to prevent insulation aging caused by long-term thermal stress;

3. Rated insulation voltage up to AC400V, with over-voltage protection, suitable for photovoltaic power generation and complex power distribution network;

4. From 6A to 63A rated current options, compact and modular design, to meet the residential lighting, sockets, motors, photovoltaic systems and other different scenarios of load demand.

5. The product supports OEM/ODM service, which meets the demand of overseas distribution and brand customization. PUGAO (Plannter Electric) factory has passed ISO9001 international quality system certification.

Application Scenarios

PUGAO’s Circuit Breakers for Short Circuit Protection are utilized across residential, commercial, and industrial power systems, providing reliable protection for a wide variety of settings.

1. Residential Power Distribution Systems

Used in circuits for lighting, power outlets, and household appliances; in the event of a short circuit caused by aging wiring or appliance malfunctions, they rapidly cut off the power supply to prevent wire burnout or the outbreak of fire.

2. Commercial Building Power Systems

Our circuit breakers are suitable for power distribution systems in commercial venues such as shopping malls, office buildings, and hotels. Applied to both main and branch circuits, they prevent short circuits from causing widespread power outages or equipment damage.

3. Industrial Equipment and Production Lines

Deployed across various types of industrial machinery, electric motors, and automated production lines; they rapidly cut power in the event of equipment failure or wiring anomalies, thereby preventing equipment damage and production interruptions while reducing maintenance costs and downtime risks.

4. Power Distribution Cabinets and Control Systems

Can be installed within power distribution cabinets and control panels to serve as core protective components, providing centralized short-circuit protection for multiple circuits. These are commonly utilized in engineering projects and integrated electrical equipment assemblies.

5. High Short-Circuit Current Environments

For circuits located near transformers or power supply sources—or in other areas characterized by high short-circuit current levels—where circuit breakers with high breaking capacity are required, this product serves as an ideal choice.

FAQ

Q: Are short-circuit protection and overload protection the same thing?

A: No. Although they are typically integrated into the same circuit breaker, they operate on different principles. Overload protection guards against prolonged excessive loads, relying on the accumulation of heat; short-circuit protection guards against instantaneous high-magnitude currents, relying on magnetic attraction forces.

Q: Why do some circuit breakers have a rating of 6kA, while others are rated at 15kA?

A: This indicates the breaking capacity. A rating of 6kA means the maximum short-circuit current it can safely interrupt is 6,000 amperes. If the actual short-circuit current exceeds this value, the circuit breaker may explode. Locations with larger transformer capacities require circuit breakers with higher breaking capacities; prior to selection, please allow PUGAO to provide you with professional recommendations or a customized design solution.

Q: Can I clean the circuit breaker? How should I proceed?

A: Yes, but you must ensure that the power supply is completely disconnected beforehand.

Please use a dry cloth to wipe dust from the housing, taking care to prevent dust particles from entering the arc-extinguishing chamber.

Strictly Prohibited: Do not use chemical solvents or water to clean the plastic housing, as this may compromise the performance of the flame-retardant materials or cause internal short circuits.
