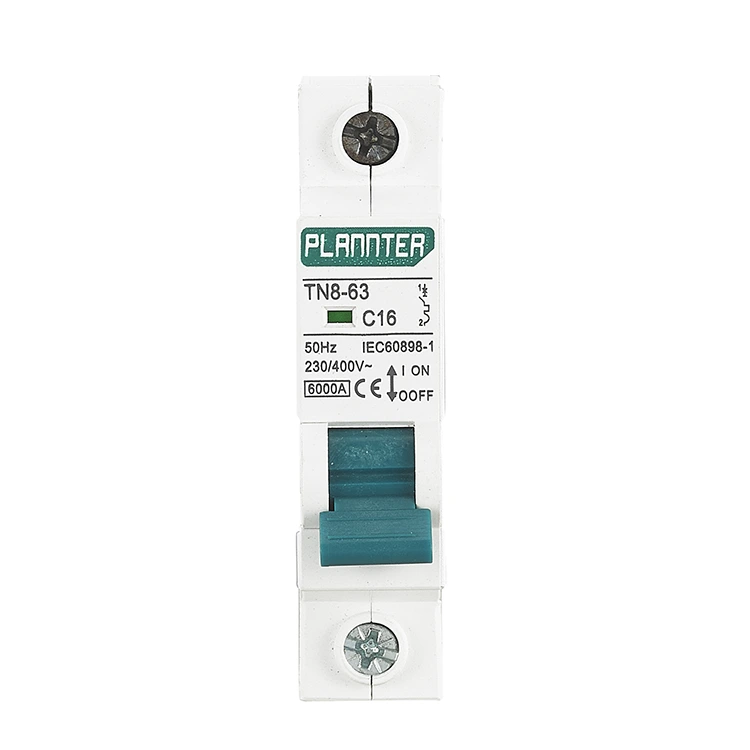

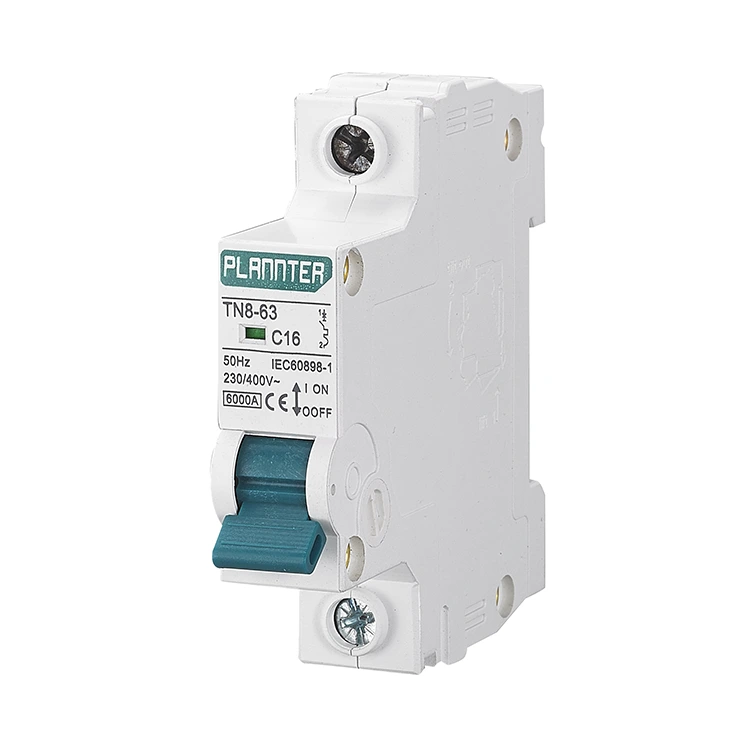

Silver Contact AC Mini Circuit Breaker

PUGAO (Plannter Electric) is a reliable manufacturer and supplier in China, we provide one year warranty service for our products, including the Silver Contact AC Mini Circuit Breaker. During the warranty period, in case of non-man-made damage, we will provide return or replacement according to the agreement, and provide technical support.

Insulated up to AC400V, this circuit breaker supports current breaking capacities up to 6kA and is suitable for a wide range of applications from 6A to 63A. It is mounted on a standard 35mm DIN rail and is CE and ISO9001 certified.

Key Features

1. Superior Conductivity

Silver is the most conductive metal found in nature; its lower contact resistance minimizes energy loss and heat generation. Even when operating under full loads of 32A or 63A, the internal temperature of the circuit breaker remains low, thereby enhancing its operational stability.

2. Enhanced Arc Resistance

When a short circuit causes the breaker to trip, an electric arc generating temperatures of several thousand degrees is formed between the contacts. Silver contacts possess exceptional resistance to arc erosion, enabling them to withstand thousands of electrical switching cycles over their service life.

3. Extended Service Life

In environments characterized by frequent switching or fluctuating loads, the Silver Contact AC Mini Circuit Breaker demonstrates high resistance to erosion. This makes it ideally suited for high-frequency applications. Furthermore, its stable chemical properties reduce the need for frequent replacements and lower maintenance costs.

4. Overload and Short-Circuit Protection

In the design of this product, we have incorporated a standard thermal-magnetic tripping mechanism. This system ensures the rapid disconnection of the circuit in the event of abnormal current conditions, thereby safeguarding both equipment and wiring.

Routine Maintenance

Routine maintenance will extend the life of the Silver Contact AC Mini Circuit Breaker. Do regular inspection, we recommend that a month or a quarter, a comprehensive inspection of the circuit breaker.

1. Periodic Visual Inspection

Frequency: Every 6–12 months

Inspect the Housing: Check the circuit breaker housing for cracks, deformation, or signs of scorching. If discoloration of the housing is observed, it may indicate internal overheating; the unit must be replaced immediately.

Inspect Markings: Ensure that the parameters on the nameplate are clearly visible and not obscured by dust.

Inspect the Handle: The operating handle should be in the correct position, free from looseness or breakage.

2. Tightening Wiring Terminals

Frequency: First inspection 6 months after installation; annually thereafter.

Important Safety Warning: Before performing any inspection, you must disconnect the upstream power supply and use a multimeter to verify that no voltage is present.

Procedure: Using a torque screwdriver, gently tighten the screws to the specific torque value prescribed by PUGAO. Do not apply excessive force, as this may strip the threads or crush the conductors.

3. Cleaning and Dust Removal

Frequency: Varies depending on the environment; facilities with high dust levels require more frequent cleaning.

Clean with Power Off: Use a dry, soft cloth or low-pressure compressed air to blow away dust from the surface of the circuit breaker and its surroundings.

Strictly No Chemicals: Do not use gasoline, alcohol, or other organic solvents to wipe the plastic housing, as this may cause the housing to become brittle or crack.

Keep Dry: Ensure that there is no condensation or accumulated water inside the distribution box. A humid environment can corrode internal metal components.

4. Functional Testing

Frequency: Once annually.

Manual Operation Test: With the power disconnected, quickly toggle the handle between the ON and OFF positions several times. You should feel a distinct "click" and a clear sense of positive engagement. If the handle feels stiff, jams, or fails to remain in the ON position, it indicates wear on the internal mechanical mechanism, and the unit must be replaced.

Leakage Test (RCBO/Earth Leakage Protection Only): With the power connected, press the "Test" button. The circuit breaker should trip immediately; if pressing the button does not cause it to trip, the earth leakage protection function has failed, and the unit must be replaced immediately.

Application

Residential power distribution: overload and short-circuit protection, which can automatically cut off the power supply in the event of abnormal use of electricity, thus effectively preventing fire and other accidents. Often used in home lighting circuits, socket circuits, kitchen and air conditioning equipment.

Protection of household appliances: for example, Silver Contact AC Mini Circuit Breaker is used in air conditioners, washing machines and other household appliances in daily life to provide reliable security for household electricity consumption.

Photovoltaic system: This MCB is used for the overload protection of PV convergence box, inverter grid side and AC side, with the system protection strategy to enhance the operational safety.

Commercial and buildings: lighting and power circuit protection for office buildings and stores to ensure the normal operation of the building power distribution system.

Others: for small power motor and relay circuit protection in control cabinet to prevent circuit abnormality.

FAQ

Q: How can I verify whether my circuit breaker genuinely utilizes silver contacts?

A: Disassembly and Inspection: Disassemble a retired unit; the contact points should exhibit a distinct, bright-white metallic luster. Furthermore, even after numerous tripping cycles, the surface should retain its metallic integrity rather than appearing blackened or carbonized.

Certification Support: PUGAO provides comprehensive inspection reports under our ISO9001 certification, ensuring that the contact material in every production batch strictly adheres to the specifications outlined in the product datasheet.

Q: Will silver contacts oxidize and turn black?

A: Silver does indeed react with sulfur present in the air, causing it to tarnish and turn black. However, the crucial point is this: silver sulfide remains electrically conductive. This constitutes a fundamental difference compared to aluminum oxide; consequently, silver contacts continue to guarantee uninterrupted electrical flow within the circuit.

Q: Are Silver Contact AC Mini Circuit Breakers expensive?

A: Although silver is a precious metal, PUGAO leverages automated mass production and optimized supply chain management to keep costs within a highly competitive range. When weighed against the risks associated with copper-contact circuit breakers—such as the need for frequent replacements and the potential for electrical faults—the superior cost-effectiveness of silver contacts becomes readily apparent. We invite you to contact us for a price quotation.
