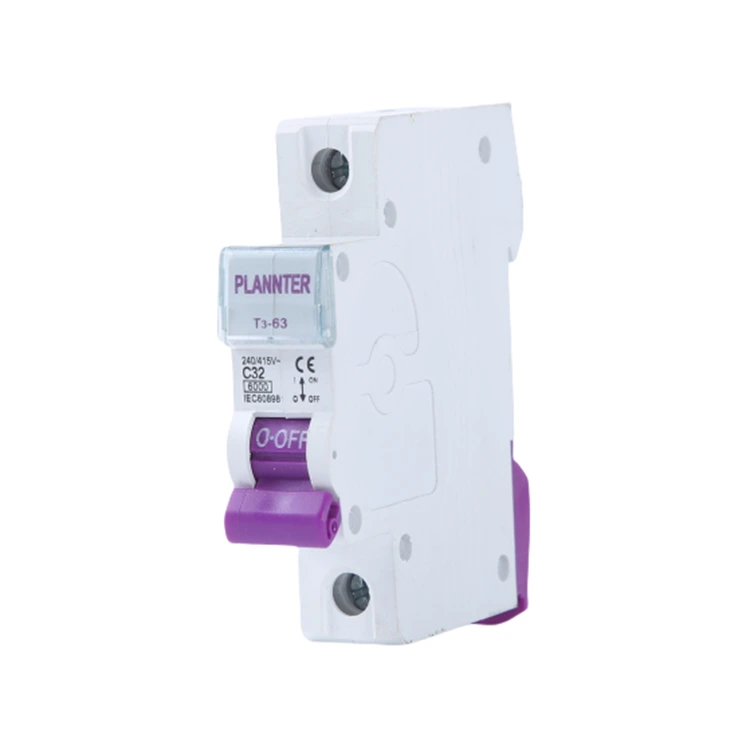

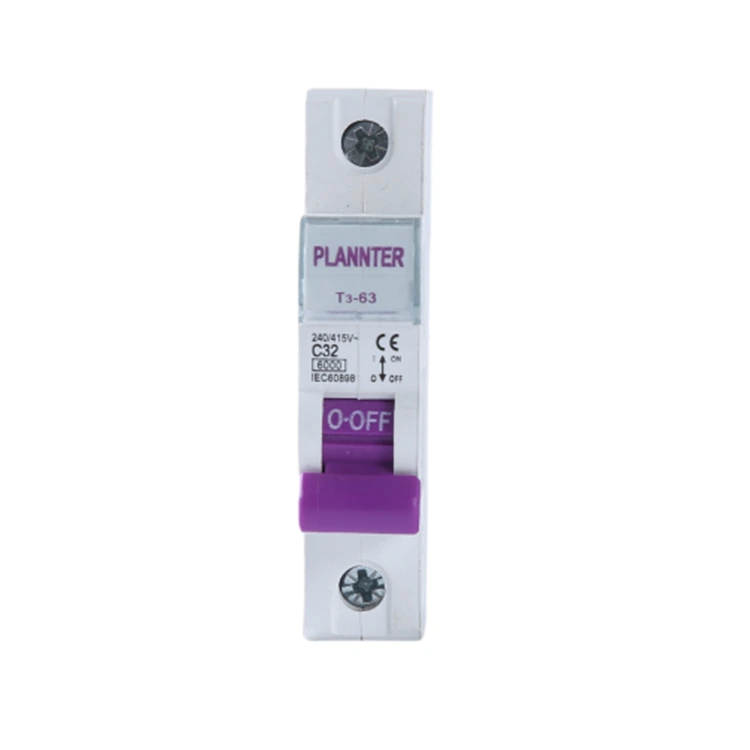

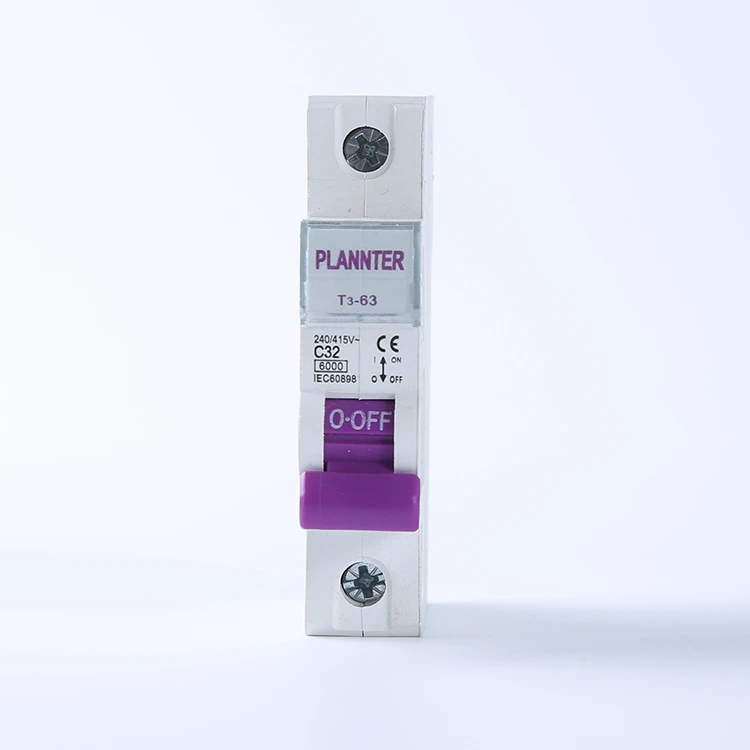

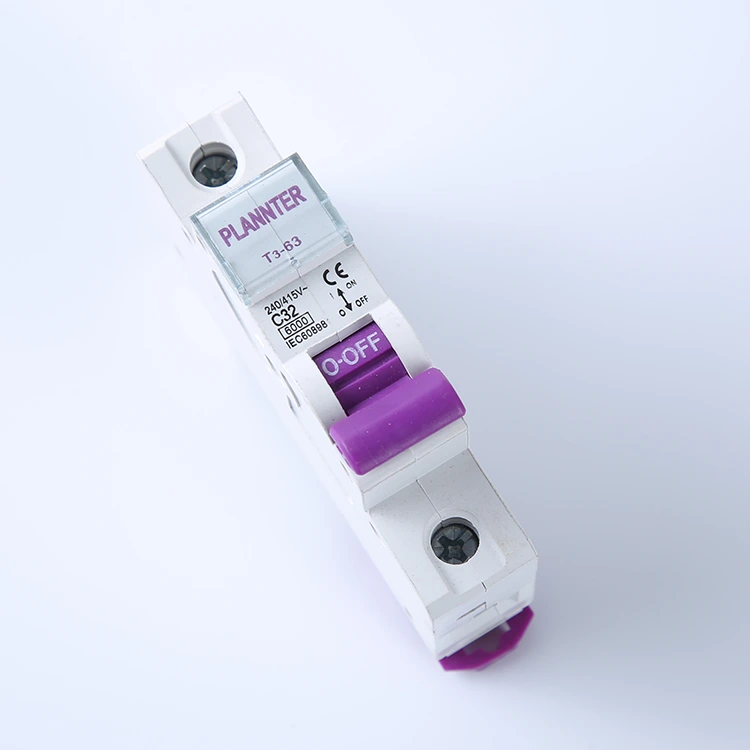

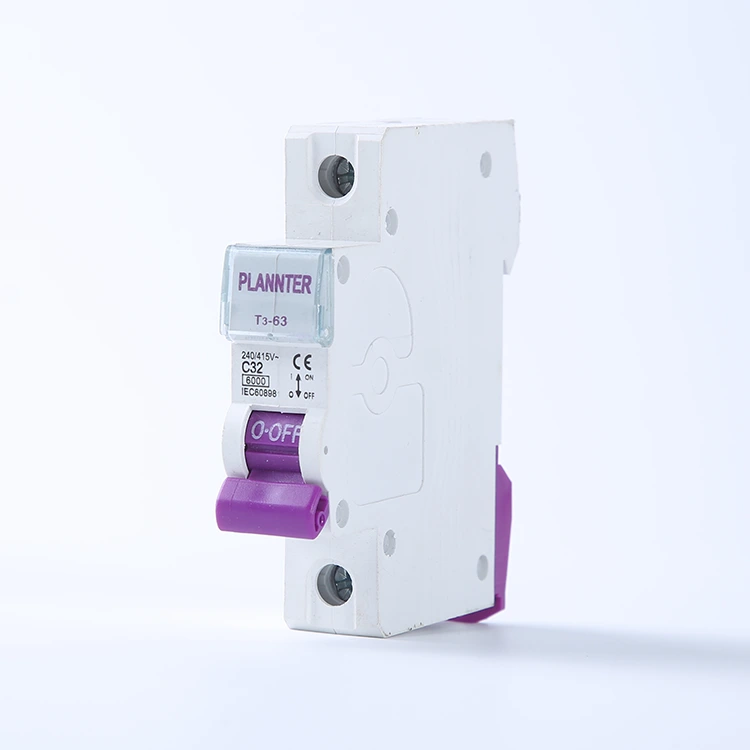

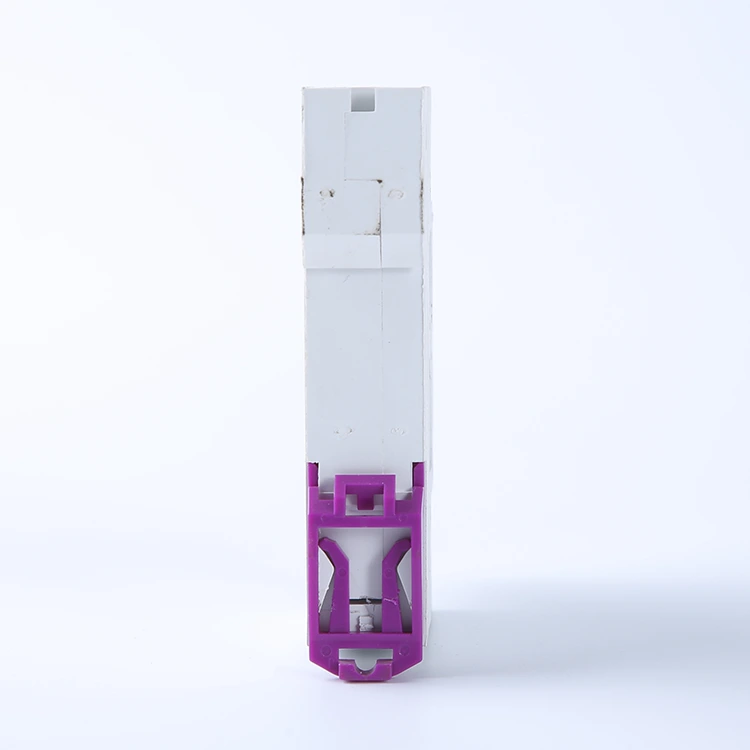

1 Pole AC Circuit Breaker

PUGAO (Plannter Electric) is a professional manufacturer and supplier in China, as one of our advanced products, this 1 Pole AC Circuit Breaker is suitable for AC 50Hz, 230V (single-phase) circuits, providing protection against overloads and short circuits. It's less costly and is mainly used in low voltage circuits and is designed to protect electrical equipment and personal safety by cutting off the circuit.

What Is a Single-Pole Circuit Breaker?

PUGAO specializes in circuit breakers, and the 1-pole AC Circuit Breaker is one of our product types. Its core advantages are its small size and minimal installation space requirement.

1P, or single-pole, refers to a circuit breaker with only one terminal block, used to control a single-phase live wire. It is suitable for ordinary household lighting circuits or low-power equipment, protecting the circuit from overloads, short circuits, and other potential electrical faults. It is a relatively low-cost, cost-effective option, and we have projects involving various residential, commercial, and industrial power distribution applications.

However, please note: When selecting a circuit breaker, you also need to consider the actual situation and choose the appropriate single-pole or multi-pole protection device. Do not blindly choose based on advantages or price.

Core Functions

1 Pole AC Circuit Breaker provides effective protection for single-phase AC circuits through dual thermal and magnetic protection.

1. Overload Protection

The circuit breaker integrates a high-precision bimetallic strip. When too many appliances are connected to the circuit, causing the current to exceed the rated value, the heat generated by the current causes the bimetallic strip to bend.

This delayed tripping function accurately identifies continuous overloads, preventing the insulation layer of wires from spontaneously combusting due to prolonged high temperatures.

2. Instantaneous Short Circuit Protection

The product incorporates a high-performance electromagnetic coil. In the event of a short circuit, the instantaneous surge in current generates a powerful magnetic field, triggering the trip lever to operate within seconds.

Through our design and testing, the single-pole circuit breaker achieves a millisecond-level response speed, cutting off power the instant an electrical spark occurs. This not only protects the circuit but also protects downstream expensive smart home appliances, servers, and industrial control equipment from surge damage.

3. High-Efficiency Arc Extinguishing System

In addition to the thermal and magnetic protection design, this AC circuit breaker is also equipped with a multi-layer metal arc-extinguishing grid. The electric arc generated at the moment of disconnection is rapidly drawn into the grid for segmentation, cooling, and extinguishing.

The arc extinguishing system effectively reduces contact erosion. Thanks to PUGAO's fully automated spot welding process, the contacts are more durable, maintaining extremely low contact resistance and excellent conductivity even after multiple fault trips.

Key Features of PUGAO AC Circuit Breaker

We provide customized solutions service and support high insulation voltage up to 400V AC to provide electrical isolation and protection against leakage.

We can provide satisfactory solutions according to your parameter requirements. Provide 6A- 63A circuit breakers, as an example, such as solar energy system, or daily life residential power distribution can be satisfied.

No need to worry about safety, high safety, if the voltage is overloaded will automatically cut off the power supply, reduce the risk of fire.

Our 1 Pole AC Circuit Breakers are all factory compliant with CE, CCC and ISO certifications. Each production process has been rigorously tested to meet international quality standards.

Common Troubleshooting and Solutions

PUGAO, as the manufacturer of 1-Pole AC Circuit Breakers, provides related technical support services. Remote technical guidance is available if product issues arise. Complete installation and maintenance instructions, including common faults and solutions, will be included with your product delivery.

1. Frequent Unexplained Circuit Breaker Tripping

Possible Causes: Overload or excessively high ambient temperature.

The total power of the appliances connected to the line exceeds the circuit breaker's rated value, or the circuit breaker has been operating in a closed, high-temperature distribution box for a long time, causing the thermal protection metal plate to trip prematurely.

Solution: Please check the line load. We recommend upgrading to a higher rated current and ensuring the wire diameter is compatible.

If environmental factors are the cause, we recommend improving the ventilation of the distribution box. PUGAO products are designed with temperature rise in mind. If the environment is extreme, please contact us for appropriate adaptation adjustments during the selection and solution development stage.

2. Overheating or Burning Odor at Terminals

Possible Causes: Loose crimping or incorrect wire diameter.

Loose screws increase contact resistance; thin wires cause high temperatures at the connection point under high current. Both of these situations can lead to problems.

Solution: Immediately disconnect the power, check and retighten the wiring screws. Our products use thickened tunnel-type terminals with a high designed torque; we recommend using a professional insulated screwdriver to tighten to the standard value. Ensure the wire is fully inserted into the terminal hole with no exposed wire core.

3. Handle cannot be closed, cannot be moved up

Possible causes: Persistent short circuit or mechanism lock-up.

A short circuit still exists in the circuit. The magnetic trip mechanism is forcibly refusing to close for safety, or the internal arc-extinguishing chamber may be damaged by a large current surge.

Solution: Do not force the circuit to close in this situation! First, check for short circuits in downstream appliances or damage to the wiring.

If the circuit still cannot be closed after ruling out external faults, the 1P AC circuit breaker has completed its protective mission. To further confirm the product's condition, replacement may be necessary. Contact Planner.

4. Downstream equipment has no power after closing the switch

Possible causes: Incorrect wiring or internal mechanism failure.

Incoming and outgoing lines are reversed, or the wire clamp is on the insulation; although the handle is in the ON position, the internal contacts are not closed.

Solution: Use a multimeter to measure the voltage at the outgoing terminals and check if the wire clamp is pressing on the wire insulation.

Every PUGAO product undergoes polarity and continuity testing on an automated workbench. If there is still no voltage despite correct wiring, please contact our technical support team.

FAQ:

Do you accept customized service?

Yes, we have over 10 years of experience in the 1 Pole AC Circuit Breakers industry. We provide OEM/ODM service and can print your brand logo on the products. We can also provide customized solutions according to your drawings and parameter requirements.

How long is your delivery lead time ?

It depends on the requirement and quantity of the products you purchase.
