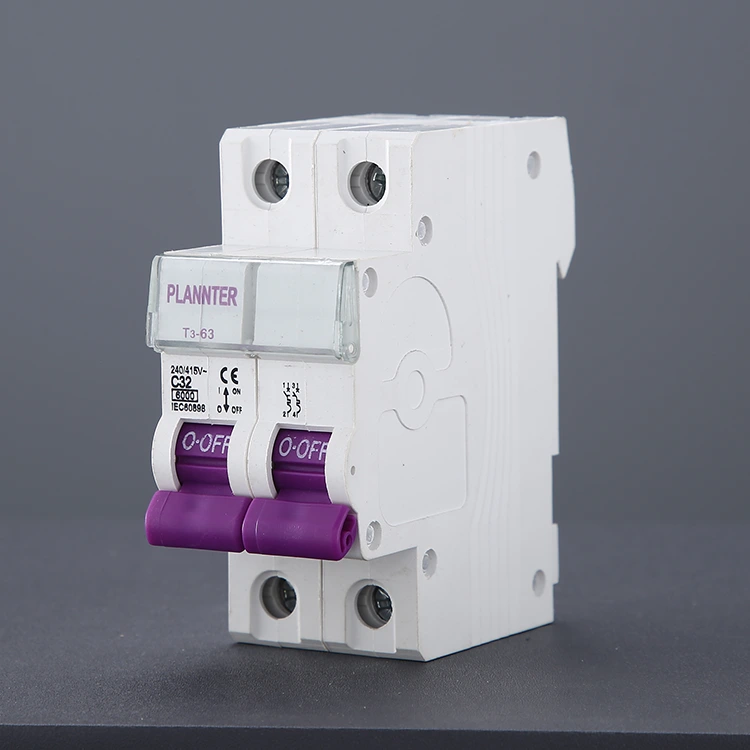

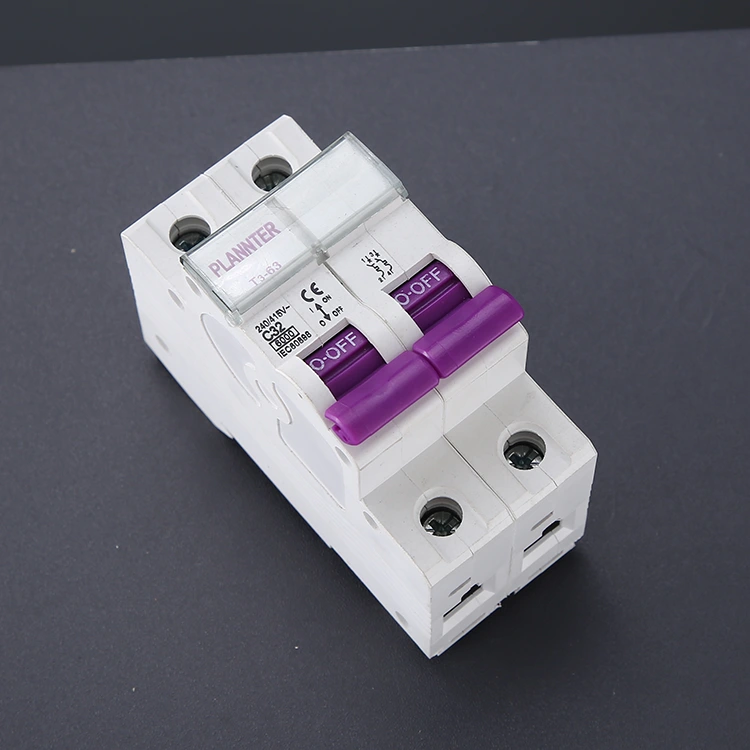

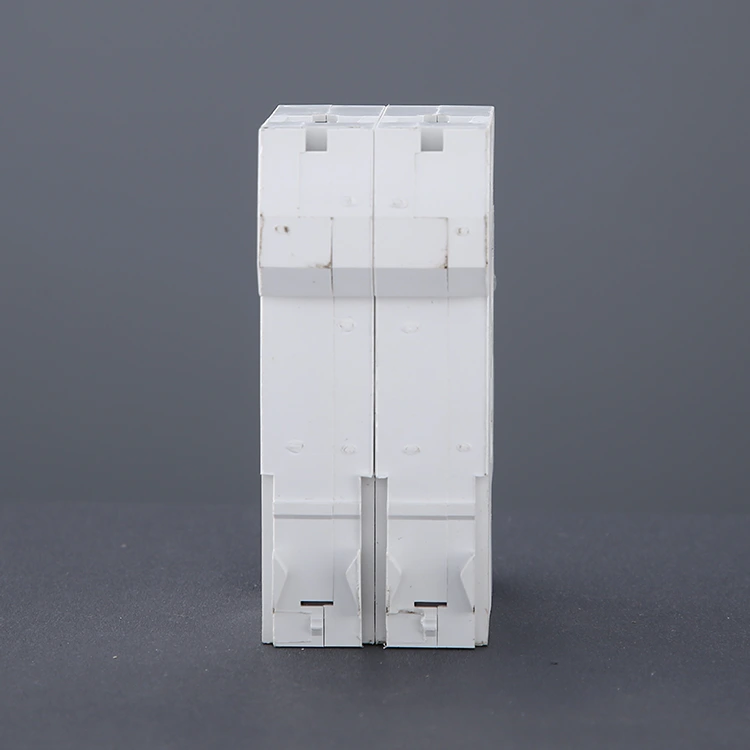

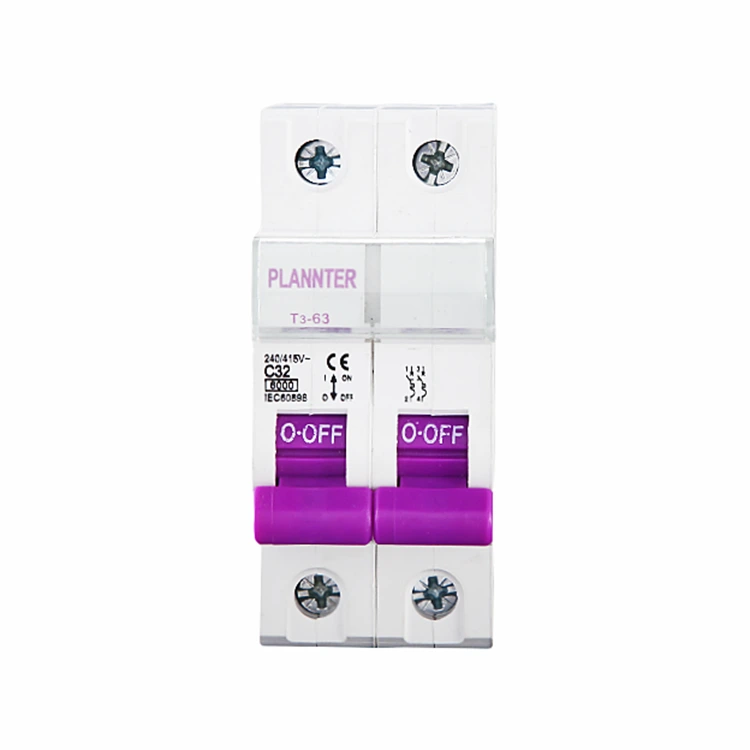

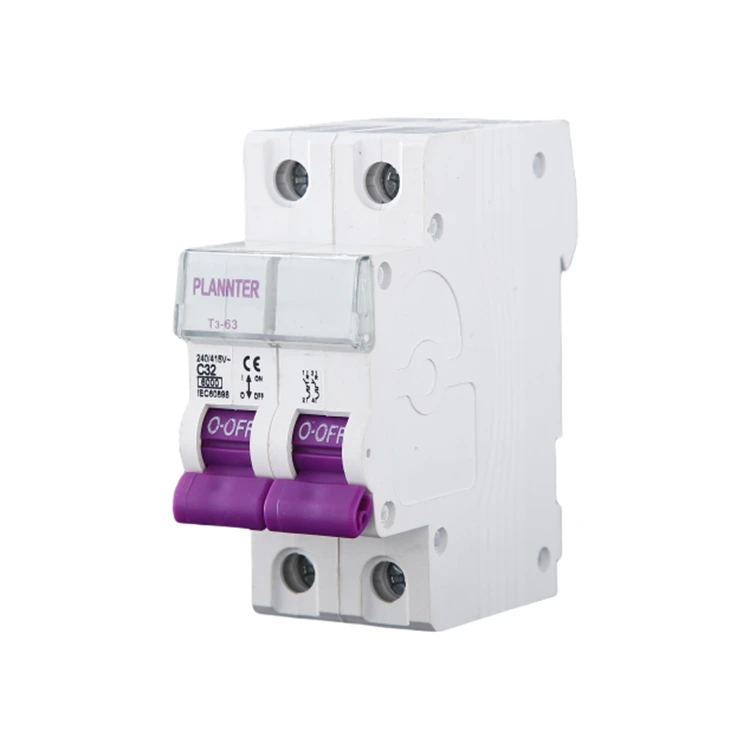

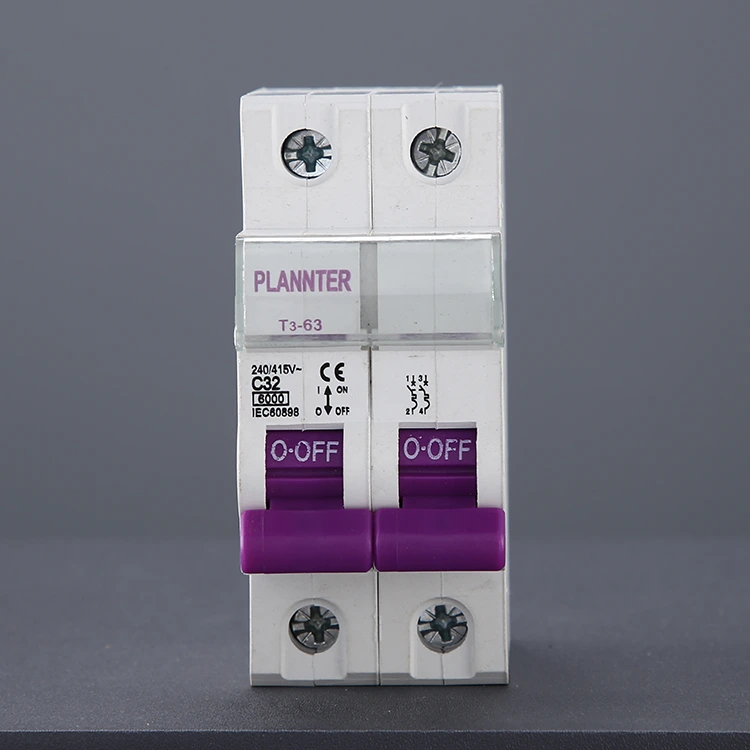

2 Pole AC Circuit Breaker

PUGAO (Plannter Electric) is a 2 pole AC circuit breaker from China. For this product, we use high-quality flame-retardant materials and high-temperature resistant copper. It is recommended that the main switch be equipped with a residual current device (RCD). For humid or water-using environments, we recommend using a separate sub-switch with RCD protection.

Why Is Bipolar Protection Necessary?

PUGAO's 2-Pole AC Circuit Breaker provides effective bipolar protection. Why is its protective function so important for electrical systems? The core reason lies in its complete isolation safety and prevention of the risk of miswiring.

Compared to a 1P circuit breaker that only disconnects the live wire while the neutral wire remains connected, a 2P circuit breaker completely physically isolates the live and neutral wires upon disconnection. During electrical maintenance or use in humid environments, complete isolation eliminates the risk of electric shock caused by a live neutral wire, making it the preferred choice.

In some power systems, where the live and neutral wires are accidentally reversed, a 1P circuit breaker may fail, meaning only the neutral wire is disconnected while the live wire remains energized. A 2P circuit breaker, however, will ensure that the dangerous power source is disconnected regardless of the connection method.

What is the difference between single-stage and double-stage circuit breakers?

1. Functions and application scenarios are not the same: single-stage circuit breakers can play a protective role in, for example, household power, commercial power, small factory power and other places. If the power is larger, you need to use a 2 Pole AC Circuit Breakers to ensure circuit safety, after all, multi-stage circuit breaker can be more than one circuit breaker connection, more complex circuit is more suitable.

2. The cost is not the same: single-stage circuit breaker price cost is lower, cheaper and more affordable, however, 2 Pole AC Circuit Breakers because of more complex functions, the price is relatively high.

3. Internal composition structure is not the same: single-pole circuit breaker, the control line is only one, while the double-pole circuit breaker contains two wires, respectively, to control the fire line and zero line.

When is a 2-Pole AC Circuit Breaker Necessary?

Planner offers customized, one-stop solutions; please contact us for details. However, for typical project applications, we recommend a 2-Pole AC Circuit Breaker.

● Main Incoming Switch:

The main inlet to the distribution box in homes, shops, or small factories.

Why Choose This: When the entire circuit needs maintenance, a 2-P circuit breaker completely disconnects both the live and neutral wires, ensuring that maintenance personnel will not be electrocuted by a live neutral wire. This is the safest main switch.

● High-Power Single-Phase Equipment:

Instantaneous water heaters, large air conditioners, commercial ovens, electric vehicle charging stations.

Why Choose This: These devices draw high current, and the neutral current is the same as the live current. If the neutral wire fails, a 2-P circuit breaker provides protection against fire caused by a burned-out neutral wire.

● Special Environments and Locations with High Safety Requirements:

Bathrooms, swimming pools, outdoor distribution boxes, and power supply for medical equipment.

Why Choose This: In humid or high-risk environments, electrical standards such as IEC 60364 typically require the simultaneous disconnection of all live conductors, including the neutral wire, to minimize the risk of electric shock.

● Areas with Poor Power Grid Quality:

In some older power grid areas, the neutral wire voltage fluctuates significantly, potentially leading to a live neutral wire.

Why Choose This: A 2P circuit breaker effectively isolates abnormal neutral wire voltage from the power grid side, protecting downstream equipment from damage.

Why Choose PUGAO's 2-Pole AC Circuit Breaker?

As a source manufacturer with 14 years of experience, PUGAO prioritizes synchronization and durability in its production of double-pole AC circuit breakers. These are key considerations for many of our customers, ultimately contributing to our industry leadership.

Our products utilize automated assembly processes, controlling the closing and opening time difference between the two poles to the microsecond level, preventing arc damage caused by asynchronous breaking.

They boast a high breaking capacity of 6kA, standard on our products, easily handling the more severe short-circuit impacts in 220V/240V systems.

Each pole of the circuit breaker incorporates an independent bimetallic strip and electromagnetic coil, ensuring that a problem in any one wire triggers a system-wide trip.Each product undergoes rigorous calibration on PUGAO's automated testing platform, achieving ISO9001 certification quality, providing you with robust power protection.

FAQ

Can you provide samples?

We support samples for trial. Sample cost and transportation cost are negotiable. We have stock and also support bulk purchase.

Do you support OEM/ODM service?

Yes, we do. The factory has more than ten years of experience and can customize the appearance, logo, current specification, etc. according to your needs.

How long is the production lead time?

The 2 Pole AC Circuit Breaker lead time is about 15-45 days; it depends on the quantity and requirements of the order.
