Pugao supplies 3 Pole Industrial Short Circuit Protection Breaker for industrial electrical systems where three-phase loads require coordinated interruption and dependable fault protection. In factories, machinery assemblies, and power distribution cabinets, the selection of a suitable breaker directly affects how effectively the system responds to overloads and short circuit events.
Three-phase equipment does not simply require a higher current rating. The protection device must match the electrical structure of the load, the expected fault conditions, and the installation location. A breaker that only interrupts part of the circuit may leave an abnormal power condition, while an unsuitable breaking capacity may fail to handle the available fault energy.
Designed for three-phase distribution requirements, this breaker combines three linked poles, thermal protection, magnetic short circuit release, and a compact DIN rail structure for industrial electrical integration.
Selecting The Right Breaker For Three-Phase Industrial Loads
Industrial buyers usually select circuit breakers based on more than voltage and current. The electrical characteristics of the connected equipment determine whether a 3-pole protection device is appropriate.
Three-phase loads commonly include:
Industrial motors.
Production machinery.
Factory distribution circuits.
Control panels.
Electrical equipment assemblies.
Compared with single-phase circuits, three-phase systems contain multiple phase conductors working together. The protection device needs to disconnect these phases in a coordinated manner when abnormal conditions occur.
The 3 Pole Industrial Short Circuit Protection Breaker is suitable for applications where three separate phase lines require simultaneous control.
When selecting the breaker, buyers should evaluate:
Number of poles required.
Rated current of the circuit.
System voltage.
Expected short circuit current.
Installation method.
Correct selection helps ensure the breaker matches the electrical design instead of simply replacing a general-purpose switch.
Three Poles, One Protection Point
The three-pole configuration is the main difference between industrial three-phase breakers and single-phase protection devices.
A 3-pole structure provides:
Three independent switching contacts.
Mechanical linkage between poles.
Simultaneous interruption of three phase lines.
For motor-driven equipment, synchronized operation is especially important. If only part of a three-phase supply is disconnected, the remaining energized phases may create abnormal operating conditions.
The mechanical connection between poles allows the breaker to act as one protection unit rather than three separate switches.
This structure is commonly used in:
Motor branch circuits.
Industrial machinery power inputs.
Three-phase distribution systems.
Factory electrical cabinets.
Matching Breaking Capacity With Fault Energy
Short circuit protection depends not only on whether a breaker can trip, but also whether it can safely interrupt the fault current available at the installation point.
When a short circuit occurs:
-
A very high current flows through the circuit.
-
The electromagnetic release detects the rapid current increase.
-
The trip mechanism activates.
-
The contacts separate and the arc extinguishing system limits the electrical arc.
Breaking capacity selection should consider the location of the breaker within the power system.
For example:
Equipment farther from the transformer may experience different fault levels compared with main distribution points.
Circuits close to power sources may require higher interrupting capability.
Industrial projects should evaluate actual system conditions before selection.
The 3 Pole Industrial Short Circuit Protection Breaker uses a thermal-magnetic double release design to address both gradual overload and instantaneous short circuit conditions.
Protection Functions Inside One Modular Device
Instead of using separate components for different fault conditions, the breaker integrates multiple protection functions into one compact unit.
Thermal Release For Overload Protection
The internal bimetallic strip responds to continuous excessive current.
Operation process:
Current overload generates heat.
The bimetal element changes shape.
The release mechanism disconnects the circuit.
This function protects cables and equipment from prolonged overheating.
Electromagnetic Release For Short Circuit Protection
The electromagnetic coil responds to sudden high-current faults.
Operation process:
Fault current creates a strong magnetic field.
Magnetic force activates the trip mechanism.
Contacts open rapidly.
The combination of thermal and magnetic protection allows one breaker to manage different electrical fault conditions.
Arc Extinguishing Structure
During circuit interruption, an electrical arc is generated between separating contacts. The internal arc extinguishing device helps control this process and supports safer breaking operation.
Built For Distribution Cabinets And Industrial Equipment Integration
The 3 Pole Industrial Short Circuit Protection Breaker adopts a modular structure suitable for common electrical cabinet designs.
Typical installation positions include:
Industrial Distribution Cabinets
Used as branch protection components for factory power distribution systems.
Applications include:
Production workshop circuits.
Equipment power supply lines.
Engineering electrical assemblies.
Motor Control Systems
Suitable for small-capacity motor circuits requiring short circuit and overload protection.
Applications include:
Machine drives.
Industrial equipment motors.
Automated production systems.
Control Panels
The compact design allows integration into control cabinets where space utilization and modu
DIN Rail Installation And Electrical Configuration
The breaker adopts the standard 35mm DIN rail mounting method, allowing convenient installation in modular electrical systems.
|
Item
|
Specification
|
|
Product name
|
3 Pole Industrial Short Circuit Protection Breaker
|
|
Mounting method
|
35mm DIN rail
|
|
Release type
|
Thermal-magnetic double release
|
|
Rated insulation voltage
|
Up to AC400V
|
|
Rated current options
|
6A-63A
|
|
Main applications
|
Motors, distribution systems, lighting, photovoltaic systems
|
|
Protection functions
|
Overload protection and short circuit protection
|
The compact modular structure helps electrical installers arrange protection components efficiently inside distribution equipment.
Application Positions In Industrial Power Networks
The 3 Pole Industrial Short Circuit Protection Breaker can be applied in multiple positions within low-voltage electrical systems.
Equipment Incoming Power
Installed near machinery power input points to provide local circuit protection.
Factory Branch Distribution
Used in branch circuits where individual equipment protection is required.
Electrical Integration Projects
Applied in assembled control systems and distribution equipment requiring standardized protection components.
Photovoltaic And Complex Distribution Networks
The breaker’s insulation performance and modular structure allow use in photovoltaic-related and other low-voltage distribution applications according to system requirements.
Pugao Production Control Behind Electrical Components
Zhejiang Pugao Electric Power Co., Ltd. (Plannter Electric) has specialized in low-voltage electrical equipment manufacturing since 2011.
The company focuses on products including:
Power distribution switches.
Control equipment.
Motors.
Instrumentation.
Electrical protection components.

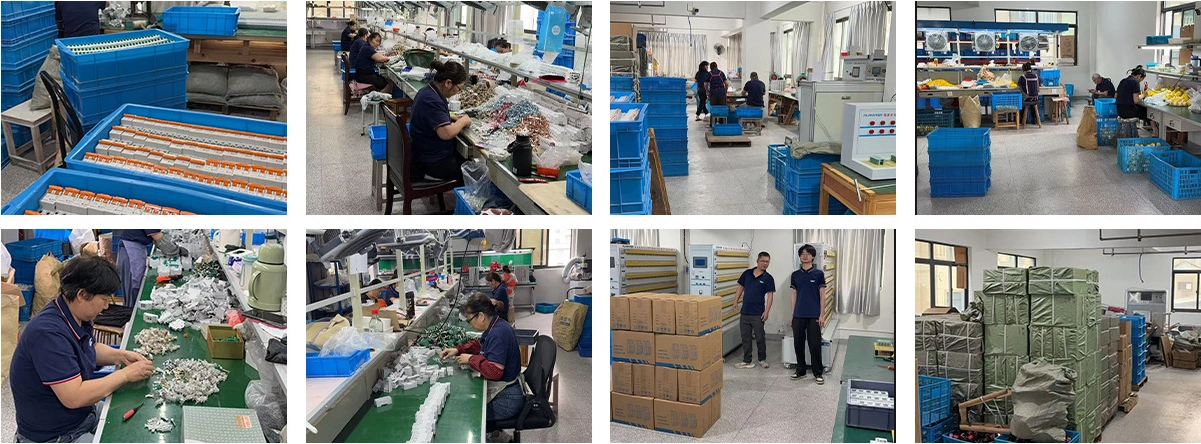

Pugao production facilities include:
Automated small circuit breaker semi-production lines.
Automatic packaging and laminating production lines.
Fully automatic punching machines.
Product inspection and validation workbenches.
Automated product laser marking equipment.
Semi-automatic pad printing machines.
Multiple manual production lines.
Semi-automatic spot welding machines.
In 2024, Pugao passed ISO9001 international quality system certification and obtained intellectual property management system certification.
Technical Questions Before Ordering
How does a 3-pole breaker differ from a single-pole breaker?
A single-pole breaker controls one circuit conductor, while a 3-pole breaker controls three separate phase lines through a linked mechanism. Three-pole models are commonly used in three-phase industrial systems.
What protection functions are included?
The breaker combines overload protection through a bimetallic strip and short circuit protection through an electromagnetic release.
What current ratings are available?
The product supports rated current options from 6A to 63A. The correct rating should be selected according to the connected load and electrical system design.
Why is breaking capacity important?
Breaking capacity indicates the maximum short circuit current the breaker can safely interrupt. The required value depends on the installation location and expected fault conditions.
Can this breaker be installed in electrical cabinets?
Yes. The 35mm DIN rail mounting structure is suitable for distribution cabinets, control panels, and modular electrical assemblies.
For industrial three-phase systems requiring coordinated phase interruption and short circuit protection, the 3 Pole Industrial Short Circuit Protection Breaker provides a compact protection option combining three-pole mechanical linkage, thermal-magnetic release technology, and DIN rail installation.
