Industrial AC Molded Case Breaker

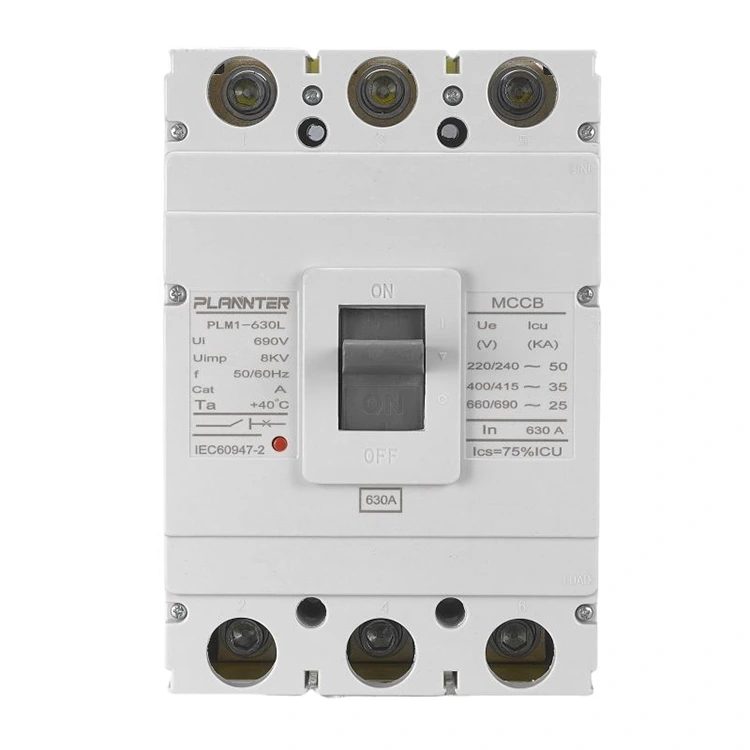

As a leading China supplier with 14 years of manufacturing excellence, PUGAO (Plannter Electric) offers the Industrial AC Molded Case Breaker 630A series. Engineered for heavy-duty power distribution, this breaker combines high breaking capacity with rigorous durability to safeguard large-scale electrical infrastructures.

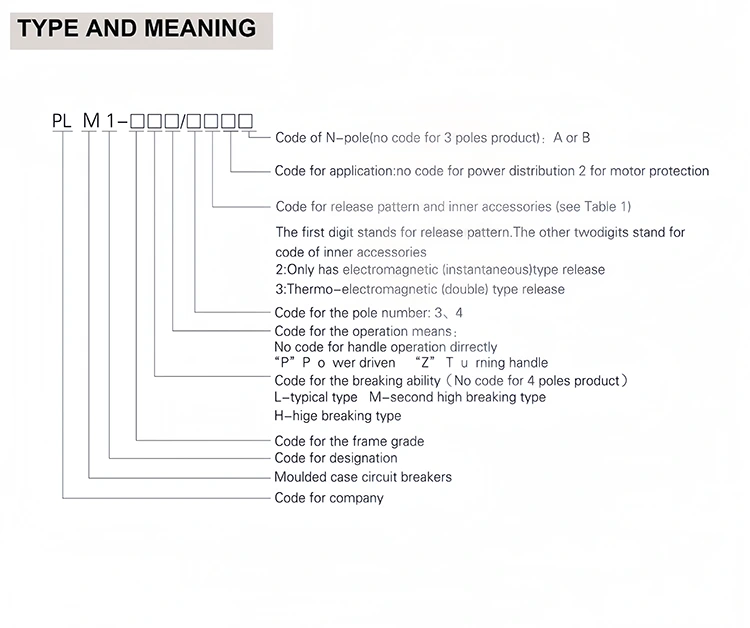

What Is an Industrial AC Molded Case Breaker?

The Industrial AC Molded Case Breaker is a heavy-capacity protective device designed to handle high-current loads while providing precise defense against overloads and short circuits. It acts as the primary safety gate in industrial networks, ensuring that downstream equipment remains protected even under extreme fault conditions.

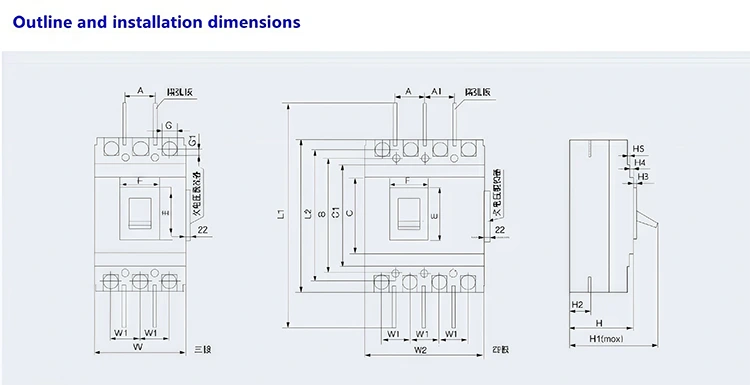

Case Design: Superior Insulation & Durability

• Molded Housing: Built with high-strength, flame-retardant composite materials that provide exceptional dielectric strength.
• Compact Footprint: Optimized design allows for high-density installation within switchgears and power cabinets without compromising thermal dissipation.
• Environmental Resilience: The case is sealed to protect the internal mechanism from industrial dust, humidity, and chemical vapors.

Current Ratings: Optimized for Heavy Loads

Our Industrial AC Molded Case Breaker is specifically engineered for high-demand applications:

• Rated Current: 630A, ideal for main distribution boards and large machinery.
• Breaking Capacity: Features a high Ics (Rated Service Breaking Capacity) of 50 kA and Icu (Ultimate Breaking Capacity) of 65 kA, ensuring the unit remains operational even after interrupting severe faults.
• Stable Operation: Calibrated to remain stable at 1.05 times the rated current to prevent nuisance tripping in busy industrial environments.

Mechanism: Precision & Rapid Response

The internal mechanism of the Industrial AC Molded Case Breaker is designed for both accuracy and longevity:

• Adjustable Instantaneous Trip: Magnetic trip settings (Im) can be adjusted from 3.15 kA to 6.3 kA to match specific line impedances.
• Ultra-Fast Interruption: Capable of quenching arcs and disconnecting circuits within 20 ms during a short-circuit event.
• Endurance Tested: Confirmed for a mechanical life of 20,000 operations and an electrical life of 5,000 cycles at full 630A load.
• Short-Time Withstand: Can endure high-current impulses of 55 kA for 1 second, providing excellent dynamic and thermal stability.

Key Features and Characteristics

The Industrial AC Molded Case Breaker 630A series is built to handle the rigorous demands of modern infrastructure. From precision engineering to modular flexibility, these features ensure your electrical systems remain safe, efficient, and compliant with international standards.

1. High Interrupting Capacity

Our Industrial AC Molded Case Breaker is designed to manage extreme electrical faults without failure.

• Icu/Ics Performance: Reaching up to 65kA ultimate breaking capacity, with service breaking capacity (Ics) maintained at 50kA.
• Fault Isolation: Rapidly quenches arcs within 20ms to prevent damage to downstream industrial machinery.

2. Adjustable Trip Settings

Flexibility is key in industrial environments. The Industrial AC Molded Case Breaker allows for fine-tuning to prevent nuisance tripping while maintaining a solid protective barrier.

• Overload Adjustment: Stable operation at 1.05x rated current; reliable disconnection within one hour at 1.3x rated current.
• Instantaneous Magnetic Trip: Adjustable settings (Im) ranging from 3.15 kA to 6.3 kA to suit various line impedances.

3. Thermal-Magnetic and Electronic Trip Units

As a professional China supplier, we offer diverse trip technologies to meet different protection profiles:

• Thermal-Magnetic: Reliable bimetallic and electromagnetic protection for standard industrial loads.
• Electronic Trip (Optional): Enhanced precision for complex power distribution networks requiring digital logic and faster response times.

4. Wide Current Range

The 630A frame serves as a robust solution for medium-to-large power requirements, ensuring consistent protection across a wide spectrum of connected loads and lines in your distribution network.

5. Compact & Modular Design

Space efficiency is critical in modern switchgear. The Industrial AC Molded Case Breaker features a high-strength molded housing that maximizes dielectric strength while minimizing the overall footprint for high-density cabinet installations.

6. Multi-Pole Protection

Our standard 3-pole design ensures synchronized operation across all phases. This linked mechanism is vital for protecting three-phase motors and ensuring complete system isolation during a fault.

7. Accessories & Communication

Enhance your Industrial AC Molded Case Breaker with a variety of field-installable accessories:

• Shunt Trips & Undervoltage Releases: For remote emergency shutdown and voltage monitoring.
• Auxiliary & Alarm Contacts: For real-time status feedback to centralized control rooms or PLCs.

8. Environmental Robustness

Manufactured in our China factory with strict ISO9001 quality controls, these breakers are tested for:

• Dynamic & Thermal Stability: Capable of withstanding 55kA short-term impulses for 1 second.
• Longevity: Proven mechanical endurance of 20,000 operations and 5,000 electrical cycles at full load.

FAQ

What is the Difference Between an Industrial and Commercial MCCB?

While both provide circuit protection, an Industrial AC Molded Case Breaker is specifically built for heavier duties compared to commercial-grade units:

• Voltage/Current Handling: Industrial models, like our 630A series, are designed for higher continuous loads and significantly higher short-circuit interrupting capacities (up to 65kA).
• Robustness: Industrial units feature enhanced thermal and dynamic stability to withstand high-current impulses (e.g., 55kA for 1 second) common in factory settings.
• Adjustability: Unlike fixed-setting commercial breakers, industrial versions offer wide adjustment ranges for both thermal and magnetic trips to accommodate diverse machinery.

What are the Common Applications for Industrial MCCBs?

The Industrial AC Molded Case Breaker is a versatile component found in various high-demand environments:

• Motor Protection: Ideal for safeguarding large three-phase motors, handling high inrush currents without nuisance tripping while providing precise overload protection.
• Panelboards and Switchboards: Acts as the main incoming or outgoing protection unit in distribution boards, ensuring the safety of entire branch circuits.
• Industrial Automation: Integrated into complex production lines and PLC-controlled systems to provide reliable, automated power isolation during electrical faults.

What is the Difference Between an MCCB and an ACB?

Understanding the distinction is vital for selecting the right protection for your facility:

• Role: An MCCB (Molded Case Circuit Breaker) is generally used for currents up to 1600A and offers a compact, sealed design. An ACB (Air Circuit Breaker) is used for much higher current applications (up to 6300A) and usually serves as the main incoming breaker for an entire plant.
• Maintenance: The Industrial AC Molded Case Breaker is largely maintenance-free due to its sealed "molded case" design. In contrast, ACBs have accessible internal parts that require regular lubrication and contact inspection.

Why Choose PUGAO Industrial AC Molded Case Breaker?

As a professional supplier based in China, PUGAO leverages 14 years of manufacturing expertise to offer Industrial AC Molded Case Circuit Breakers—the preferred choice for power distribution systems worldwide:

Exceptional Breaking Performance: Featuring an ultimate breaking capacity (Icu) of up to 65kA and a service breaking capacity (Ics) of 50kA, these breakers ensure that equipment remains fully operational and efficient even after clearing short-circuit faults, thereby significantly reducing replacement costs.

Precise Protection Mechanisms: With stable thermal-magnetic tripping, the units remain immune to nuisance tripping at 1.05 times the rated current; furthermore, they boast an instantaneous short-circuit response time of less than 20ms, establishing a robust line of defense for your industrial loads.

Extreme Industrial Durability:Having passed rigorous testing, these breakers offer a mechanical lifespan of 20,000 cycles and an electrical lifespan of 5,000 cycles under full load conditions, while also capable of withstanding short-time thermal stability surges of 55kA for 1 second.

Comprehensive Manufacturing System: Benefiting from the geographical advantages of our China-based factory, we strictly adhere to ISO 9001 standards and incorporate machine vision inspection technology to support OEM/ODM customization, thereby guaranteeing the consistent quality and reliability of every single product we deliver.
