What Makes a 2-Pole Plastic Miniature Circuit Breaker Reliable for Modern Electrical Protection?

2026-08-07 0 Leave me a message

A 2-Pole Plastic Miniature Circuit Breaker is an essential component for protecting electrical systems from overloads and short circuits. With compact design, reliable switching performance, and improved safety features, it is widely used in residential, commercial, and industrial applications. This article explains how these circuit breakers work, their advantages, selection factors, installation considerations, and why choosing a dependable manufacturer such as Zhejiang Pugao Electric Power Co., Ltd. can help users achieve safer and more stable electrical protection.

1. Understanding the 2-Pole Plastic Miniature Circuit Breaker
2. Structure and Working Principle
3. Key Advantages and Performance Benefits
4. Common Applications
5. How to Choose the Right Circuit Breaker
6. Comparison Between Different Circuit Breaker Types
7. Installation and Maintenance Tips
8. Future Trends in Miniature Circuit Protection
9. Frequently Asked Questions

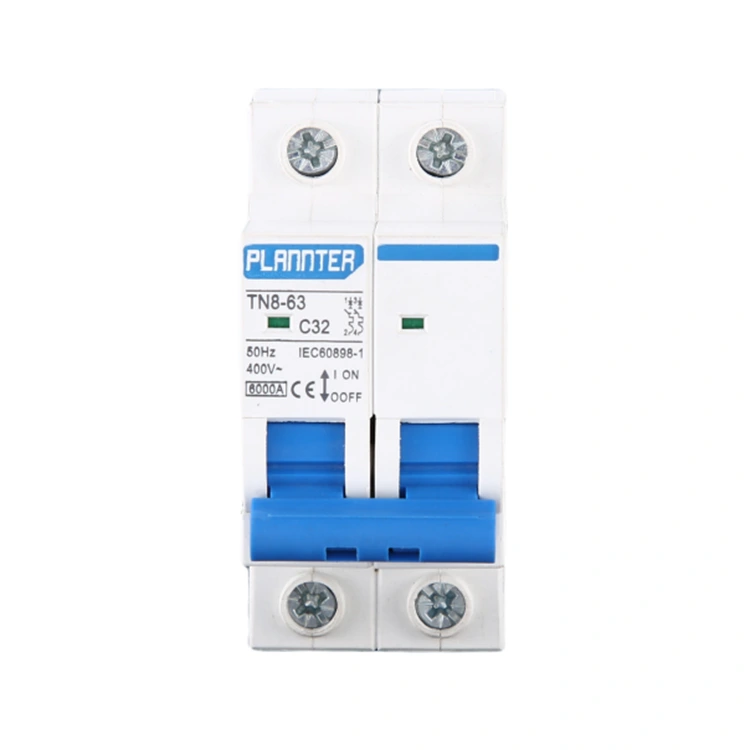

1. Understanding the 2-Pole Plastic Miniature Circuit Breaker

Electrical safety has become increasingly important as modern buildings depend on more electronic devices and complex power networks. A 2-Pole Plastic Miniature Circuit Breaker provides effective protection by automatically disconnecting the electrical circuit when abnormal current conditions occur.

Unlike traditional fuses that need replacement after operation, miniature circuit breakers can be reset and reused, reducing downtime and maintenance costs. The plastic housing provides insulation protection while maintaining a lightweight and compact structure suitable for various electrical distribution systems.

		Main functions include:

				Protection against electrical overload.

				Fast response during short circuit events.

				Safe manual circuit switching.

				Reliable isolation during maintenance operations.

2. Structure and Working Principle

A 2-pole miniature circuit breaker contains two protected poles, allowing it to control and disconnect both live and neutral lines or two independent circuits depending on system requirements.

Component	Function
Plastic Insulated Housing	Provides electrical insulation and protects internal components.
Thermal Release Mechanism	Detects long-term overload conditions and disconnects the circuit.
Magnetic Release System	Provides rapid protection against sudden short circuits.
Contact System	Controls current connection and interruption.
Operating Handle	Allows manual ON/OFF operation and reset control.

When excessive current flows through the circuit, the thermal mechanism responds to heat generated by overload conditions. For sudden high-current faults, the magnetic mechanism quickly activates to disconnect the circuit and prevent equipment damage.

3. Key Advantages and Performance Benefits

The popularity of 2-pole plastic miniature circuit breakers comes from their balance between safety, efficiency, and installation convenience.

Enhanced Electrical Safety: Quickly interrupts abnormal current to reduce fire and equipment risks.
Compact Installation: Saves space inside distribution boxes and control panels.
Long Service Life: Designed for repeated switching operations.
Easy Maintenance: Resettable operation reduces replacement frequency.
Strong Insulation Performance: Plastic housing improves user protection.

For electrical contractors and system designers, these advantages help create safer power distribution solutions while reducing long-term operating costs.

4. Common Applications

A 2-Pole Plastic Miniature Circuit Breaker is suitable for many electrical environments due to its flexible design.

Application Area	Usage Purpose
Residential Buildings	Protects household lighting, sockets, and appliances.
Commercial Facilities	Provides stable protection for office and retail electrical systems.
Industrial Equipment	Protects machinery control circuits and power distribution systems.
Solar Power Systems	Supports safe DC and AC circuit management.
Automation Systems	Protects sensitive control equipment.

5. How to Choose the Right Circuit Breaker

Selecting an unsuitable circuit breaker may result in unnecessary trips, insufficient protection, or electrical safety problems. Buyers should evaluate several important factors before purchasing.

Selection Factor	Important Consideration
Rated Current	Choose a current rating suitable for the connected electrical load.
Rated Voltage	Ensure compatibility with the electrical system voltage.
Breaking Capacity	Higher capacity provides stronger short circuit protection.
Installation Environment	Consider temperature, humidity, and operating conditions.
Certification Requirements	Confirm compliance with relevant electrical standards.

Working with an experienced manufacturer helps customers avoid incorrect specifications and ensures reliable electrical performance.

6. Comparison Between Different Circuit Breaker Types

Feature	2-Pole Plastic Miniature Circuit Breaker	Traditional Fuse	Single Pole Breaker
Reset Function	Yes	No	Yes
Protection Range	Two circuit poles	Basic overload protection	One circuit pole
Maintenance Cost	Low	Higher due to replacement	Low
Safety Performance	High	Moderate	High

7. Installation and Maintenance Tips

Proper installation ensures that a miniature circuit breaker performs effectively throughout its service life.

Always confirm electrical specifications before installation.
Install the breaker inside a suitable distribution enclosure.
Tighten terminal connections properly to prevent overheating.
Regularly inspect for signs of damage or abnormal operation.
Replace products that show mechanical or electrical failure.

Professional installation is recommended for commercial and industrial electrical systems to ensure compliance and operational safety.

8. Future Trends in Miniature Circuit Protection

As electrical systems become smarter, miniature circuit breakers are developing toward higher efficiency, improved monitoring capability, and better compatibility with modern energy solutions.

Integration with intelligent energy management systems.
Improved materials for stronger insulation performance.
More compact designs for limited installation spaces.
Higher reliability for renewable energy applications.

Manufacturers are continuously improving product design to meet increasing demands for safer and more efficient electrical infrastructure.

9. Frequently Asked Questions

Q1: What is a 2-Pole Plastic Miniature Circuit Breaker used for?

It is used to protect electrical circuits from overloads and short circuits while providing convenient switching and isolation functions.

Q2: Why choose a plastic housing for a miniature circuit breaker?

Plastic housing provides excellent insulation, lightweight construction, and additional protection against accidental electrical contact.

Q3: How long can a miniature circuit breaker operate?

Service life depends on product quality, operating conditions, and switching frequency. High-quality breakers can provide reliable long-term performance.

Q4: How can I select a suitable 2-pole circuit breaker?

Consider rated current, voltage, breaking capacity, installation environment, and certification requirements before making a selection.

Conclusion

A reliable 2-Pole Plastic Miniature Circuit Breaker plays a critical role in modern electrical protection systems. Its compact structure, reusable operation, and strong safety performance make it an ideal solution for residential, commercial, and industrial applications.

Zhejiang Pugao Electric Power Co., Ltd. focuses on providing dependable electrical protection products designed to meet different application requirements. With professional manufacturing capabilities and strict quality control, the company helps customers build safer and more efficient electrical systems.

Looking for a reliable electrical protection solution? Contact us today to discuss your requirements and find the right 2-Pole Plastic Miniature Circuit Breaker solution for your project.
