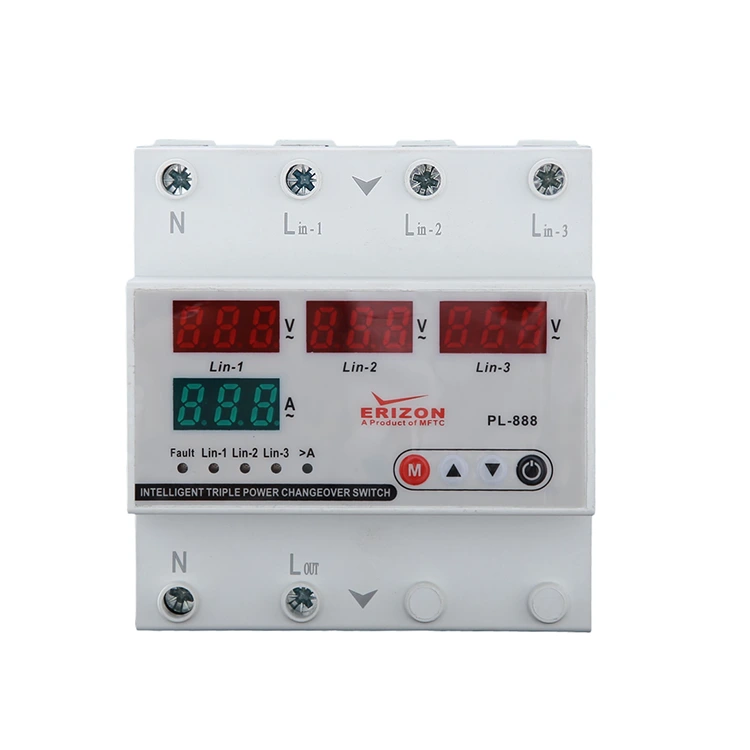

What Is a 3 Phase Four-Display Voltage Protector and Why Is It Essential for Modern Power Systems?

2026-03-02 0 Leave me a message

In industrial and commercial electrical environments, voltage instability is one of the leading causes of equipment damage, unexpected downtime, and financial loss. A 3 Phase Four-Display Voltage Protector is a specialized protection device designed to monitor and safeguard three-phase electrical systems in real time. This article provides a comprehensive exploration of its functions, technical principles, benefits, installation considerations, and real-world applications. Whether you are an electrical contractor, factory manager, system integrator, or distributor, this guide will help you understand how to choose the right voltage protection solution and avoid costly electrical failures.

1. Introduction to Three-Phase Voltage Protection
2. Why Voltage Instability Is a Serious Risk
3. Core Functions of a 3 Phase Four-Display Voltage Protector
4. How Does a 3 Phase Four-Display Voltage Protector Work?
5. Technical Specifications and Performance Parameters
6. Comparison: Traditional Voltage Relay vs Four-Display Protector
7. Key Application Scenarios
8. Installation Guidelines and Best Practices
9. Common Customer Pain Points and Solutions
10. Why Choose Yueqing Plannter Electric Factory
11. Frequently Asked Questions
12. Final Thoughts

1. Introduction to Three-Phase Voltage Protection

Three-phase power systems are widely used in industrial plants, commercial buildings, manufacturing workshops, elevators, HVAC systems, and heavy machinery. Compared with single-phase systems, three-phase systems provide higher efficiency and stable power transmission. However, they are also more complex and vulnerable to voltage irregularities.

A 3 Phase Four-Display Voltage Protector is specifically designed to monitor all three phases (A, B, C) simultaneously and display multiple parameters in real time. Unlike basic protection relays, it offers enhanced visibility, intelligent fault detection, and automated disconnection when abnormal conditions occur.

2. Why Voltage Instability Is a Serious Risk

Voltage irregularities can cause severe consequences in three-phase systems. The most common issues include:

Overvoltage
Undervoltage
Phase loss
Phase sequence error
Phase imbalance
Neutral failure

When these problems occur, motors may overheat, compressors may fail, circuit boards may burn, and production lines may stop abruptly. For factories operating 24/7, even a few minutes of downtime can result in significant losses.

Without proper voltage protection, sensitive equipment such as CNC machines, refrigeration systems, elevators, and industrial automation systems remain exposed to unpredictable power conditions.

3. Core Functions of a 3 Phase Four-Display Voltage Protector

A modern 3 Phase Four-Display Voltage Protector integrates multiple intelligent protection features into one compact device.

Function	Description	Customer Benefit
Overvoltage Protection	Disconnects power when voltage exceeds preset threshold	Prevents insulation damage and overheating
Undervoltage Protection	Cuts off supply during low voltage conditions	Prevents motor stalling and excessive current draw
Phase Loss Detection	Detects missing phase instantly	Avoids motor burnout
Phase Sequence Monitoring	Ensures correct phase rotation	Protects compressors and pumps
Phase Imbalance Monitoring	Measures deviation between phases	Improves operational stability
Four Real-Time Displays	Shows voltage values clearly	Easy monitoring and troubleshooting

4. How Does a 3 Phase Four-Display Voltage Protector Work?

The device continuously samples the voltage values of each phase using internal sensing circuits. A microcontroller processes the data and compares it with user-defined protection thresholds.

If abnormal conditions are detected, the internal relay disconnects the contactor coil circuit, cutting power to the load. Once voltage returns to normal, the system automatically reconnects after a preset delay.

The four-display interface typically shows:

Phase A voltage
Phase B voltage
Phase C voltage
Fault status or system parameter

This real-time visualization eliminates guesswork and reduces maintenance time.

5. Technical Specifications and Performance Parameters

When selecting a 3 Phase Four-Display Voltage Protector, consider the following specifications:

Parameter	Typical Range
Rated Voltage	380V / 400V / 415V AC
Frequency	50Hz / 60Hz
Overvoltage Setting	Adjustable (e.g., 380V–460V)
Undervoltage Setting	Adjustable (e.g., 300V–380V)
Response Time	< 1 second
Reset Delay	Adjustable 1–600 seconds
Mounting	DIN Rail

6. Comparison: Traditional Voltage Relay vs Four-Display Protector

Many customers still use conventional voltage relays. However, there are significant differences:

Feature	Traditional Relay	Four-Display Protector
Display	Limited or none	Real-time digital display
Adjustability	Manual knobs	Digital precision setting
Accuracy	Moderate	High accuracy microprocessor
Fault Diagnosis	Basic	Advanced fault codes
Ease of Monitoring	Low	High

7. Key Application Scenarios

Industrial manufacturing plants
Cold storage systems
Elevators and escalators
HVAC systems
Water pumps and compressors
Commercial buildings
Data centers

In these environments, stable power is critical. A 3 Phase Four-Display Voltage Protector acts as a frontline defense.

8. Installation Guidelines and Best Practices

Install on standard DIN rail inside distribution panel.
Connect three-phase input lines properly.
Wire relay output to contactor control circuit.
Set protection parameters based on load requirements.
Test system before full operation.

Always ensure wiring complies with local electrical standards.

9. Common Customer Pain Points and Solutions

Pain Point 1: Frequent motor burnouts
Solution: Implement phase loss and imbalance protection.

Pain Point 2: Hard-to-diagnose electrical faults
Solution: Use four-display monitoring for real-time voltage visibility.

Pain Point 3: Unexpected downtime
Solution: Automatic reconnection after voltage normalization.

Pain Point 4: Complex maintenance
Solution: Clear digital interface simplifies troubleshooting.

10. Why Choose Yueqing Plannter Electric Factory

Yueqing Plannter Electric Factory specializes in manufacturing high-quality voltage protection devices with stable performance and strict quality control. With years of experience in electrical protection solutions, the company provides reliable products suitable for global industrial markets.

Advantages of Yueqing Plannter Electric Factory include:

Advanced production equipment
Strict testing procedures
Customizable voltage settings
Competitive factory pricing
Professional technical support

By choosing Yueqing Plannter Electric Factory, customers gain access to dependable protection technology designed for demanding environments.

11. Frequently Asked Questions

Q1: Can this device replace a circuit breaker?
No. It complements circuit breakers by providing voltage-specific protection.

Q2: Is it suitable for generator systems?
Yes, provided the voltage and frequency match the rated specifications.

Q3: Does it support adjustable delay time?
Yes, reset delay can typically be configured according to application needs.

Q4: What happens after a voltage fault is resolved?
The device reconnects automatically after the preset delay.

Q5: Is installation complicated?
Installation is straightforward for qualified electricians.

12. Final Thoughts

A 3 Phase Four-Display Voltage Protector is not just an optional accessory; it is a critical safeguard for modern electrical systems. By providing real-time monitoring, intelligent protection, and automatic recovery, it minimizes equipment damage and operational losses.

Yueqing Plannter Electric Factory continues to deliver dependable protection solutions trusted by professionals worldwide. If you are looking for reliable three-phase voltage protection devices tailored to your project requirements, contact us today to get expert guidance and competitive quotations.
