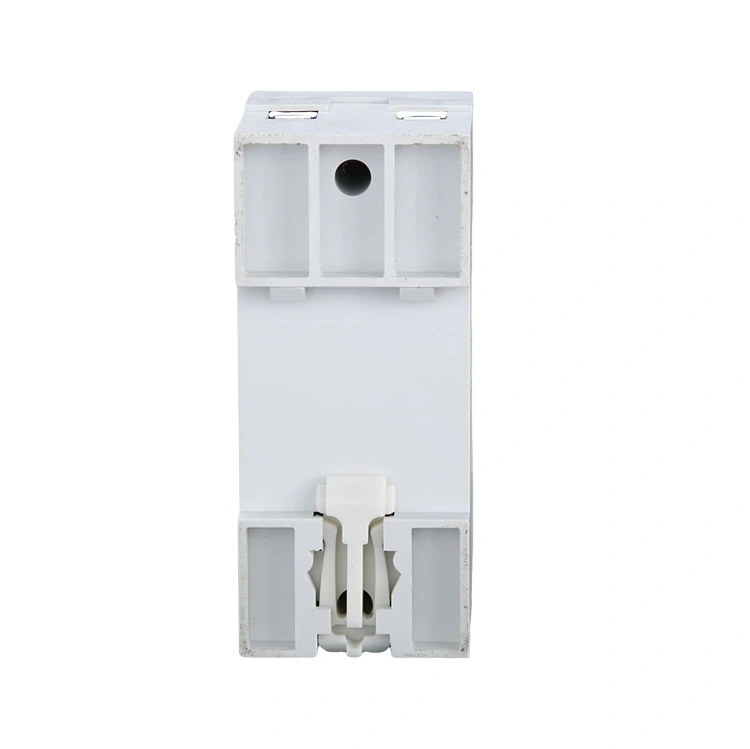

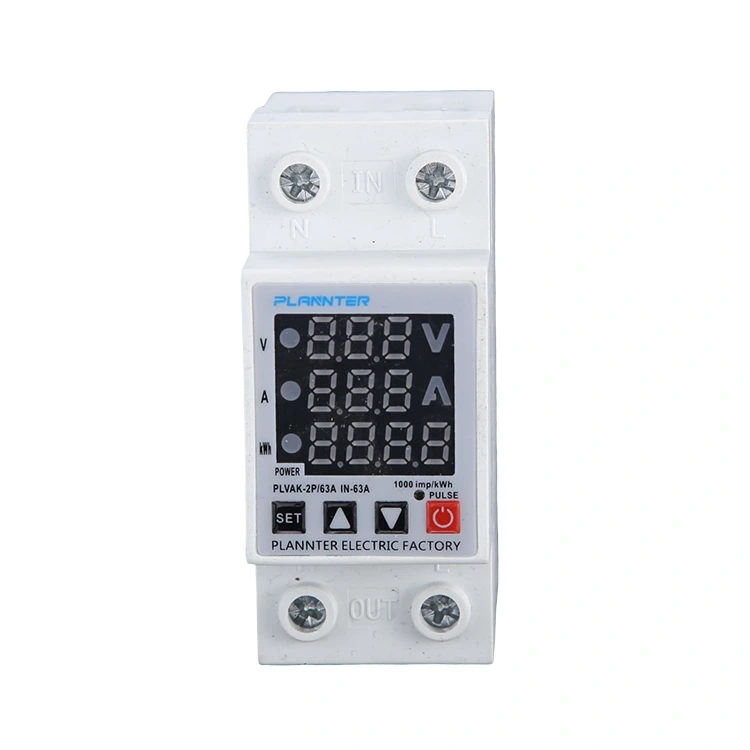

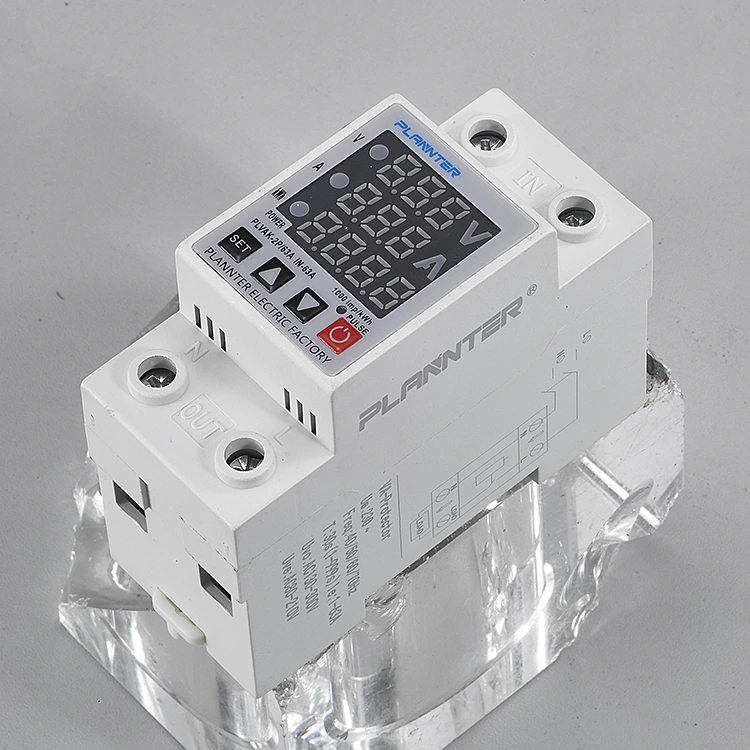

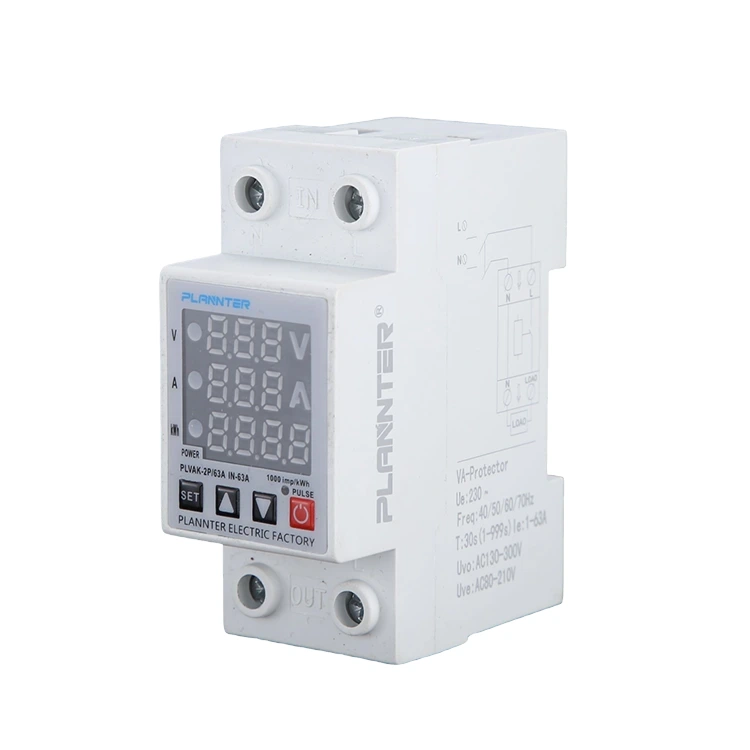

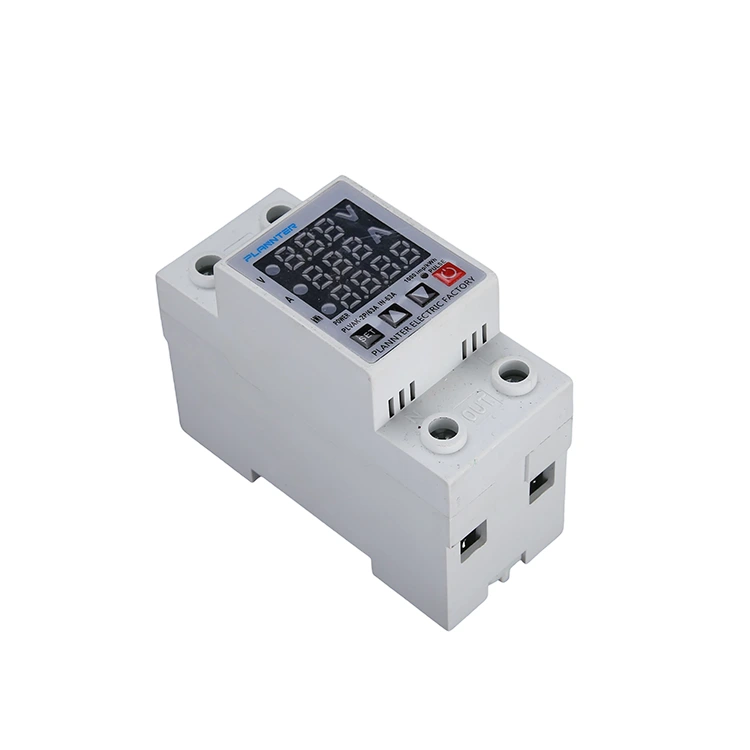

220V AC Power Protector

As the manufacturer and supplier in China, Pugao(PLANNTER) offer 220V AC Power Protector in high quality but cheap price. 220V DIN rail automatic reset adjustable voltage and current protector, this product current optional 40A and 63A, with over-voltage protection, under-voltage protection, over-current protection and other functions in one. When there is over-voltage, under-voltage or over-current in the line, it will cut off the circuit instantly to avoid the damage of electrical equipment.

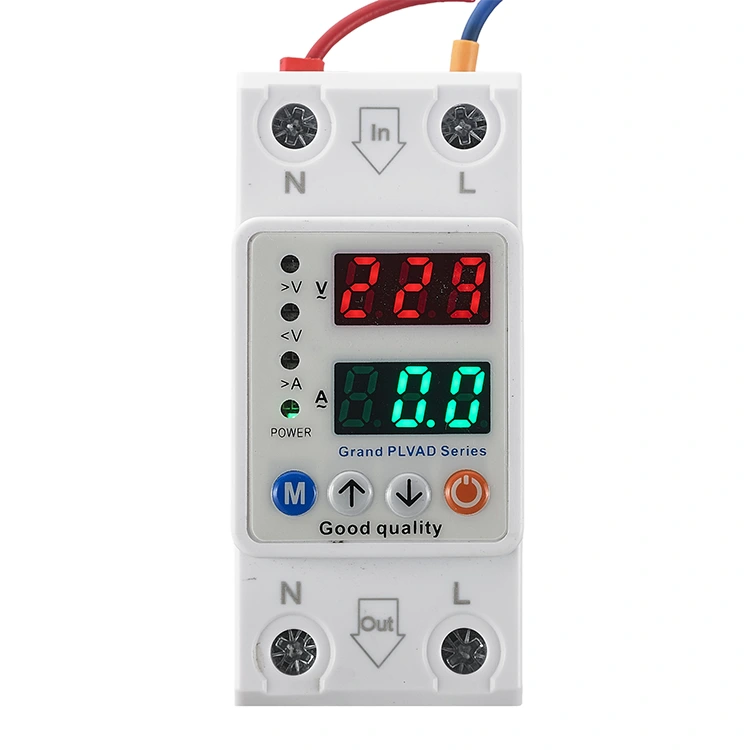

What Is a 220V AC Power Protector?

A 220V AC Power Protector is an intelligent automatic reset device that acts as a sentinel for your electrical system. It monitors the line 24/7 and instantly cuts the circuit if voltage or current fluctuates beyond safe limits. Unlike traditional fuses, it features an adjustable automatic reset, meaning it restores power once the grid stabilizes, significantly reducing maintenance downtime.

Normal Operating Conditions

1. Ambient temperature: not exceeding +55°C and not below -20°C.

2. Installation altitude: not exceeding 2000 meters.

3. Humidity: not exceeding 60%.

4. Pollution Degree 3

Installation conditions

The 220V AC Power Protector can be installed vertically or horizontally in the distribution cabinet. It should be installed in an environment free from explosion hazards. It should be installed in a place free from rain and snow. The electromechanical life of the protector can be up to 10,000 cycles.

Use

Once the 220V AC Power Protector is installed, I can wire it, please choose the wire cross section that meets the standard. Pay attention to the input and output wires of the protector can not be connected wrongly to avoid damage to the product or power failure.

Product Features

Adjustable parameters: the set parameters can be customized through the keys and display on the panel of the device.

Overvoltage protection value: If the voltage is abnormally high and exceeds the previously set upper limit, the protector will start the protection function.

Undervoltage protection value: If the input voltage is too low and lower than the lower limit set before, the 220V AC Power Protector will start the protection function.

Overcurrent protection value: the protector will quickly cut off the circuit when the circuit current continuously exceeds the set safety threshold.

Fault delay and reset delay: Adjustable delay function can effectively avoid wrong operation caused by instantaneous fluctuation and improve system stability.

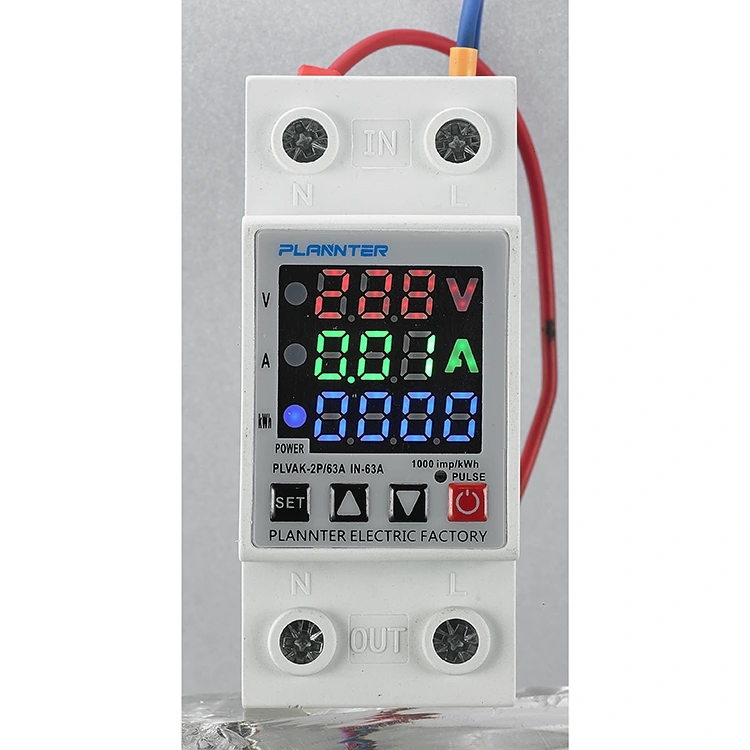

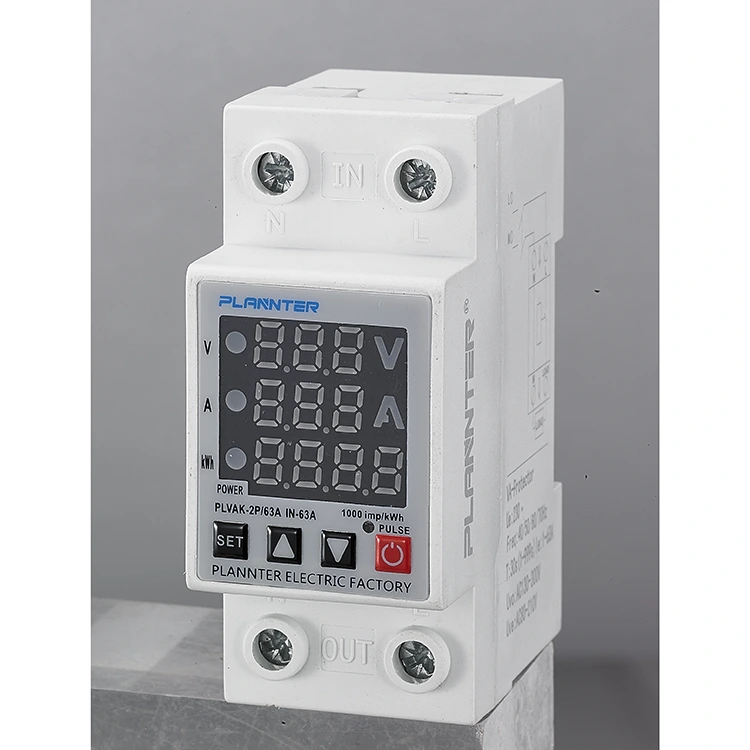

Intelligent status indication and alarm: 220V AC Power Protector is equipped with a clear LED display and indicator, real-time display of the current voltage and current values. Once a fault occurs, the corresponding fault indicator will light up and the value on the display will flash, while the relay will disconnect and cut off the power supply to avoid equipment damage and accidents.

Critical Selection Criteria for Voltage Protection

Selecting the right 220V AC Power Protector is a balance between technical compatibility and safety overhead. As a leading China manufacturer, PUGAO (Plannter Electric) recommends evaluating these four critical criteria to ensure your electrical system remains resilient against grid instability.

1. Clamping Voltage (Protection Threshold)

The clamping voltage is the "cutoff line" where the protector activates to shield your equipment.

• Precision Customization: Our 220V AC Power Protector features adjustable overvoltage settings from 230V to 300V. This allows you to set a clamping limit that is specific to the tolerance of your high-value assets.
• Safety Margin: It is essential to set the clamping voltage low enough to protect sensitive electronics, yet high enough to avoid nuisance tripping during minor, safe fluctuations.

2. Joule Rating & Energy Absorption

The Joule rating represents how much energy the protector can absorb before it fails. In industrial and residential environments, this determines the unit's "lifespan" in the face of surges.

• Component Quality: Our protectors utilize high-insulating, flame-retardant materials designed to withstand high-current impulses without compromising the internal relay mechanism.
• Durability: With an electromechanical life of 10,000 cycles, our units are built to handle repetitive low-to-medium energy surges common in unstable power grids.

3. Current Rating (Amps)

The current rating must match the total load of the circuit it is protecting. Choosing a rating that is too low will cause the protector to trip under normal operating conditions.

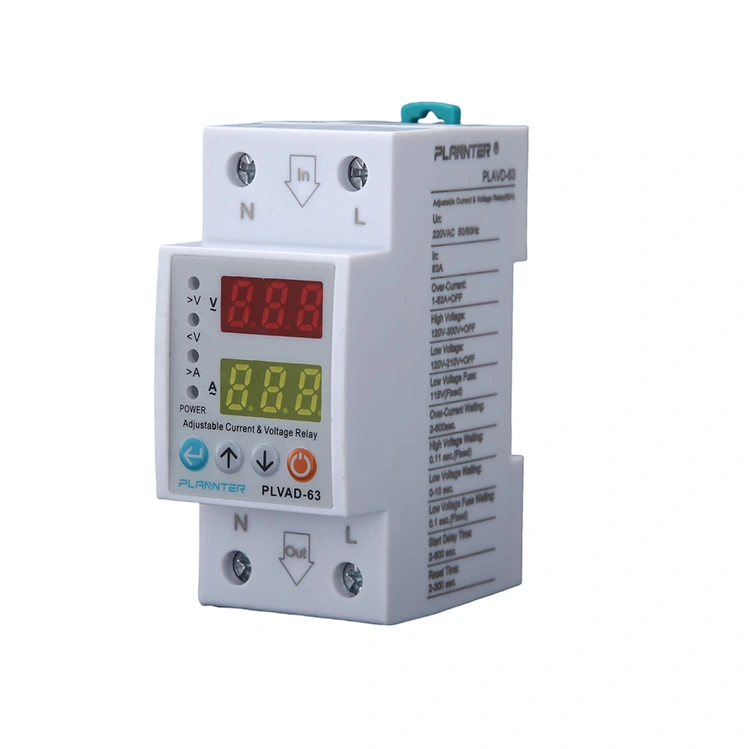

• Flexible Options: We offer 40A and 63A models. A 40A unit is typically sufficient for standard home branch circuits, while the 63A 220V AC Power Protector is recommended for whole-house protection or heavy appliances like central air conditioners and pumps.
• Overcurrent Protection: The built-in overcurrent trip adds a second layer of safety, preventing wiring fires if your appliances pull more current than the circuit can safely handle.

4. Certifications & Safety Standards

• International Compliance: Every 220V AC Power Protector from our factory is CE, CCC, and ISO certified. These are not just labels; they represent successful type tests in international laboratories.
• Pollution & Altitude Ratings: Our devices are rated for Pollution Degree 3 and altitudes up to 2000 meters, ensuring they perform reliably in dusty industrial environments and various geographical locations.

5. Response & Recovery Time

A protector's utility is also defined by how quickly it disconnects and how safely it restores power.

• Instantaneous Action: Our protectors are designed to cut the circuit instantly upon detecting a fault to prevent millisecond-level surges from reaching motherboards.
• Smart Reset: The adjustable reset delay ensures that power is only restored after the grid has stabilized for a set period, preventing the damaging "rebound" effect of a fluctuating power line.

FAQ

What is the difference between a surge protector and a voltage stabilizer?

A Surge Protector limits sudden high-voltage spikes (like lightning). A Voltage Stabilizer (AVR) constantly adjusts voltage to a steady 220V. Our 220V AC Power Protector serves as a high-speed "cutoff" switch that disconnects power entirely when levels become dangerous, offering a more robust safety barrier than a simple surge strip.

Do I need a whole-house protector or a plug-in unit?

Whole-House Protectors: Installed at the main breaker, they protect every appliance in the building simultaneously. Plug-In Units: Only protect the single device plugged into them. For complete peace of mind, a rail-mounted whole-house unit is the most efficient and cost-effective choice.

What happens if I don't use a protector?

Without a 220V AC Power Protector, equipment is exposed to "silent killers" like undervoltage, which causes motors to overheat and fail prematurely, or overvoltage spikes that can fry sensitive motherboards in computers and smart appliances instantly.
