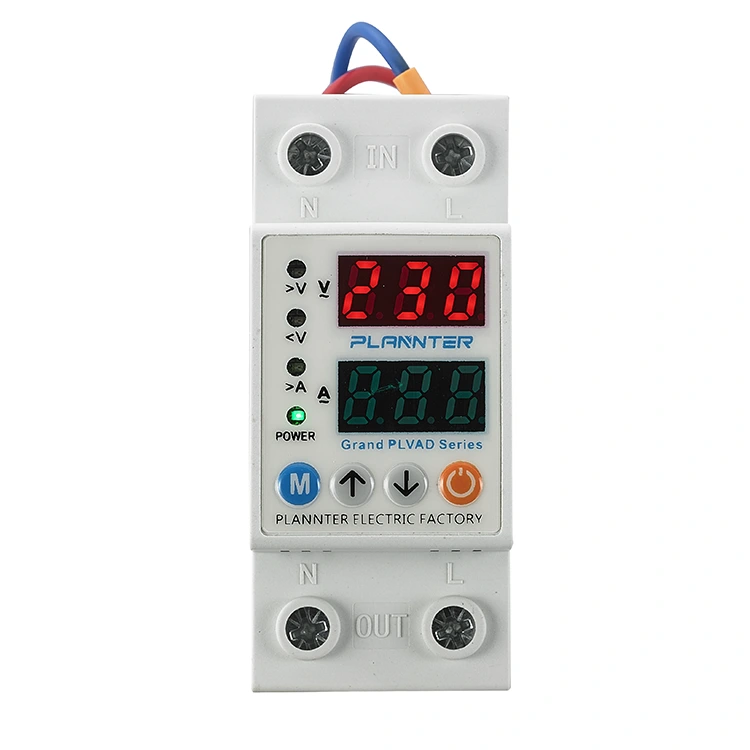

Automatic Recovery Voltage Undervoltage Relay
Pugao supplies Automatic Recovery Voltage Undervoltage Relay helping unattended electrical systems restore power after temporary voltage faults. With automatic reconnection and adjustable delay settings from 1s to 500s, it reduces downtime for homes, monitoring systems, and remote equipment.
A power interruption becomes more troublesome when nobody is available to restart the system. A short voltage abnormality during the night, a business trip, or a holiday may leave important equipment disconnected for hours. The real challenge is not only stopping abnormal voltage conditions, but also ensuring that normal power can return without waiting for manual operation.
Pugao Automatic Recovery Voltage Undervoltage Relay is developed for this situation. It acts as an intelligent power recovery controller that disconnects the load during abnormal voltage conditions and automatically reconnects the circuit after the voltage returns to a stable range and the preset delay time has finished.
For applications where continuous operation matters, this automatic recovery function provides a practical alternative to traditional protection devices that remain switched off after a fault event.
The Hidden Loss Behind an Unattended Power Trip
A short interruption can create long consequences
Not every electrical fault lasts for a long time. In many cases, the grid returns to normal shortly after the protection device disconnects the circuit. However, the connected equipment may remain without power because nobody is available to reset the system.
Typical consequences include:
Food spoilage caused by refrigerator shutdown.
Security cameras disconnecting after power loss.
Network equipment stopping operation.
Smart home devices becoming unavailable.
Automatic feeding systems losing power.
For residential users, the problem may happen during travel or working hours. For commercial and remote applications, manual recovery may require additional labor and unnecessary visits.
Protection and recovery require different functions
A conventional protection device focuses on one action:
Detect abnormal condition → Disconnect power
However, unattended electrical systems often require another step:
Confirm recovery → Wait safely → Restore power
The Automatic Recovery Voltage Undervoltage Relay combines these two processes by adding automatic reconnection capability after the electrical condition returns to normal.
Automatic Reconnection Creates Continuous Power Availability
The relay continues working after a fault occurs
After detecting abnormal voltage, the relay does not simply remain disconnected.
Its operating sequence includes:
-
Monitoring incoming voltage conditions.
-
Disconnecting output during over-voltage or under-voltage events.
-
Checking whether the supply returns to the normal range.
-
Starting the recovery timer.
-
Reconnecting power automatically after the preset delay.
This working method allows electrical systems to recover without requiring someone to physically access the distribution box.
Adjustable delay matches different equipment requirements
Immediate reconnection is not always suitable for every application. Some electrical devices require a waiting period before receiving power again.
Pugao relay supports adjustable recovery delay:
|
Delay Setting
|
Application Consideration
|
Purpose
|
|
Short delay
|
Equipment requiring faster restoration
|
Reduce unnecessary downtime
|
|
Medium delay
|
General household and commercial loads
|
Balance recovery speed and stability
|
|
Longer delay
|
Equipment sensitive to repeated startup
|
Allow power conditions to stabilize
|
The adjustable delay range of 1s-500s gives installers flexibility when configuring different electrical environments.
A Smarter Way to Manage Voltage Abnormalities
Over-voltage events
Voltage spikes may appear because of grid disturbances or abnormal electrical conditions.
When voltage exceeds the configured protection value:
The relay disconnects the output.
Connected equipment is separated from abnormal supply conditions.
The device continues checking voltage recovery.
Under-voltage situations
Low voltage can affect equipment performance, especially devices with motors or electronic control systems.
When voltage drops below the selected threshold:
The relay stops output power.
The system waits for normal voltage restoration.
Automatic reconnection begins after the delay period.
Recovery without manual attendance
The main difference appears after the fault disappears.
Traditional relay behavior:
Abnormal voltage → Power cut → User resets manually
Pugao recovery relay behavior:
Abnormal voltage → Power cut → Voltage monitoring → Delay countdown → Automatic restart
This operating logic makes it suitable for electrical systems that cannot always be supervised.
Where Automatic Recovery Brings Practical Benefits
Homes during absence periods
Modern homes contain many devices that depend on continuous electricity.
Common applications:
Refrigerators.
Freezers.
Home security equipment.
Internet routers.
Smart home controllers.
When residents are away, the Automatic Recovery Voltage Undervoltage Relay helps restore operation after temporary electrical events without requiring a person to return home.
Security and communication equipment
Power interruption can affect devices that need continuous availability.
Applications include:
CCTV systems.
Monitoring equipment.
Communication terminals.
Access control systems.
Automatic recovery reduces the time these devices remain offline after temporary voltage problems.
Commercial locations without full-time staff
Small businesses may operate equipment outside normal working hours.
Examples:
Retail equipment.
Office electrical systems.
Automatic machines.
Unattended facilities.
The recovery function helps reduce downtime caused by temporary grid conditions.
Remote installations
Some electrical equipment is installed in locations where frequent manual inspection is inconvenient.
Examples:
Agricultural equipment.
Outdoor control boxes.
Remote power systems.
|
Scenario
|
Main Concern
|
Without Auto Recovery
|
Pugao Relay Response
|
|
Home vacation period
|
Appliance shutdown
|
Requires someone to restart power
|
Restores power automatically
|
|
Security system
|
Camera offline
|
Monitoring interruption continues
|
Reconnects after recovery
|
|
Commercial equipment
|
Unexpected downtime
|
Manual inspection needed
|
Automatic restart after delay
|
|
Remote installation
|
Difficult access
|
Higher maintenance cost
|
Self-managed recovery process
|
Installation and Parameter Adjustment
Designed for practical electrical integration
The relay is designed for low-voltage distribution applications where automatic recovery is required.
Installation considerations include:
Integration into distribution boxes.
Connection with residential and commercial circuits.
Adjustable protection parameters.
Convenient maintenance access.
Configuration according to operating conditions
Users can adjust settings based on different electrical requirements, including:
Over-voltage protection value.
Under-voltage protection value.
Recovery delay time.
This allows installers to configure suitable operation behavior instead of using fixed protection settings for every application.
Pugao Experience in Low-Voltage Electrical Manufacturing
Manufacturing systems built around consistency
Reliable electrical protection equipment requires controlled production processes.
Since 2011, Zhejiang Pugao Electric Power Co., Ltd. has focused on low-voltage electrical equipment manufacturing and international supply.
The factory operates with:
Automated circuit breaker production equipment.
Product inspection and validation workstations.
Automatic packaging lines.
Laser marking equipment.
Multiple production and assembly lines.
These manufacturing resources support stable Automatic Recovery Voltage Undervoltage Relay supply for electrical distributors and OEM partners.
Quality management and compliance support
Pugao follows a production inspection workflow:
Incoming material checking.
Process monitoring.
Finished product sampling.
Aging testing.
Final factory inspection.
The company obtained ISO9001 international quality system certification in 2024 and provides supporting documents including:
EMC Compliance Verification.
Declaration of Conformity (DoC).
Eurofins Compliance Verification.
UDEM Electromagnetic Compatibility Attestation.
ECM Certificate of Compliance.
OEM Cooperation for Global Protection Equipment Markets
Supporting customized supply requirements
Pugao works with customers requiring:
OEM branding.
Customized identification.
Export packaging.
Bulk order support.
The factory provides export-standard cartons, protective packing materials, pallet packing options, and logistics coordination for international shipments.
For customers selecting Automatic Recovery Voltage Undervoltage Relay solutions, the key value is not only disconnecting power during abnormal voltage conditions. It is maintaining electrical availability after the problem disappears. By combining voltage protection with automatic delayed reconnection, Pugao helps create safer and more convenient unattended electrical systems.
Pugao continues to support global electrical projects with manufacturing experience, quality management capability, and reliable automatic recovery protection solutions.
