630A AC Magnetic Trip Circuit Breaker

High-Efficiency 630A AC Magnetic Trip Circuit Breaker | Advanced Power Protection

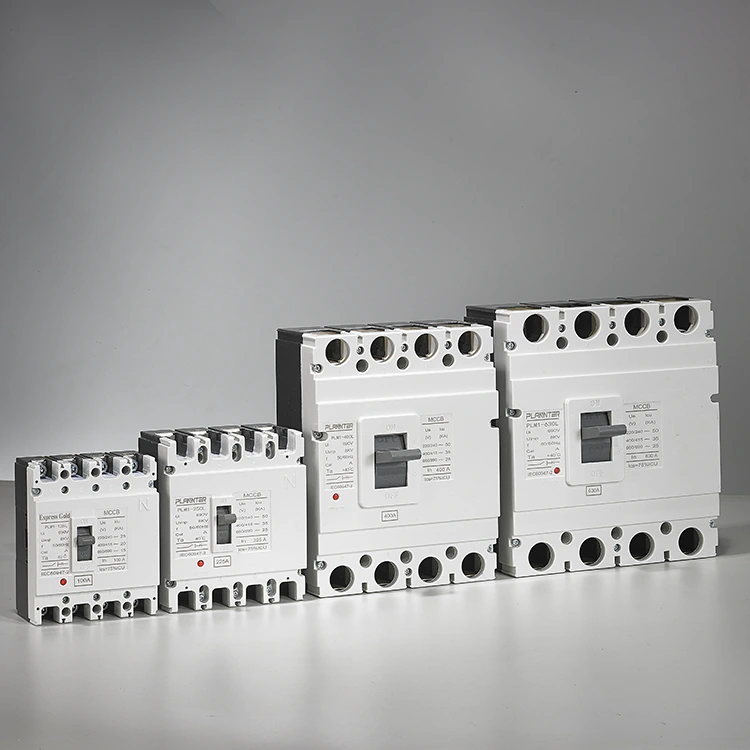

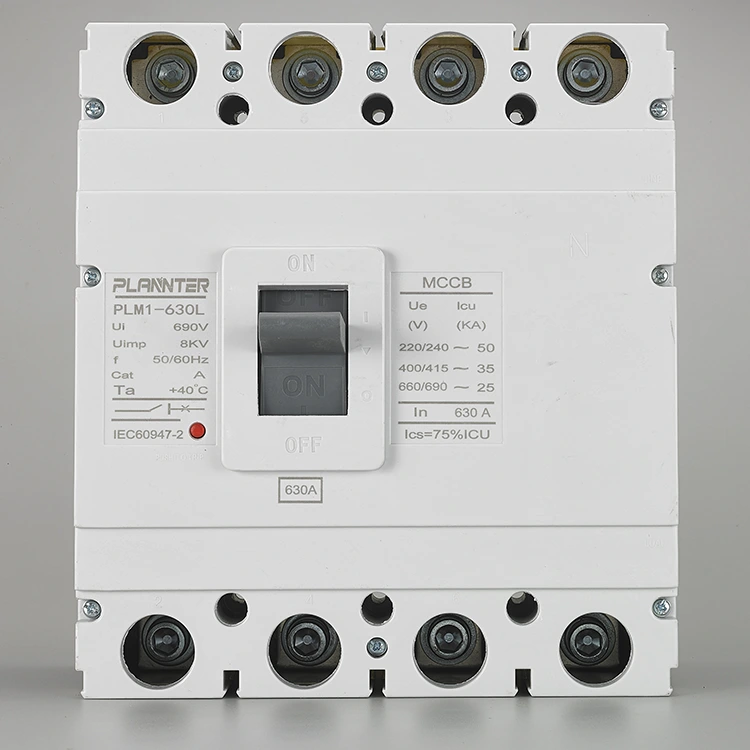

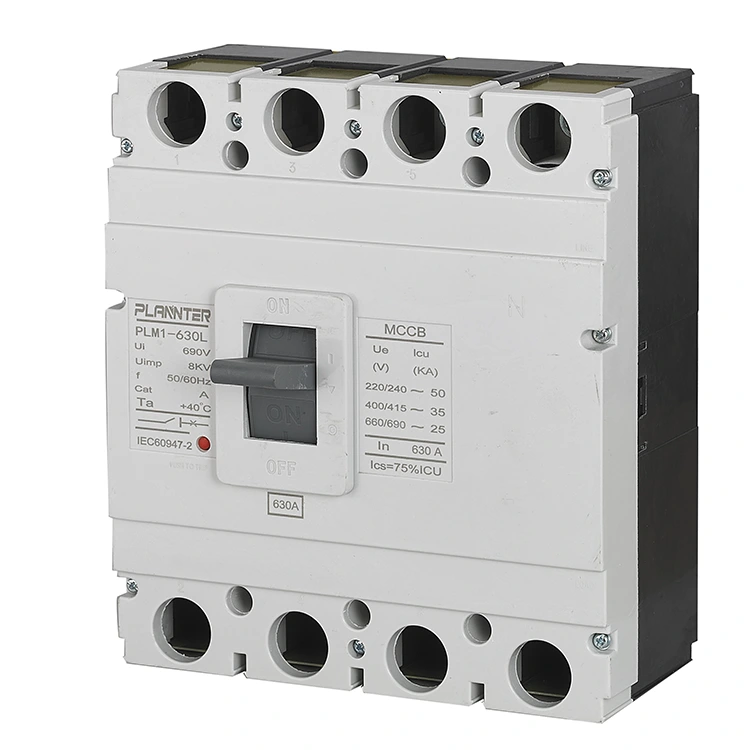

As a specialized China manufacturer, PUGAO (Plannter Electric) presents the 630A AC Magnetic Trip Circuit Breaker. This 4-pole molded case circuit breaker (MCCB) is engineered to solve the complexities of modern three-phase four-wire systems, providing total isolation and superior protection against harmonic interference.

1. What is a 630A AC Magnetic Trip Circuit Breaker?

The 630A AC Magnetic Trip Circuit Breaker is a high-capacity protective device designed to simultaneously disconnect all phase lines and the neutral line. Its primary role is to ensure the complete safety of downstream personnel and equipment by preventing neutral line potential drift—a common hazard in unbalanced or harmonic-heavy power environments.

2. Core Advantages & Selling Points

• Full Isolation Safety: Unlike standard 3-pole units, our 4-pole design isolates the neutral line, eliminating risks from fault currents due to load imbalance.
• Harmonic Resilience: Specifically built to handle nonlinear loads (UPS, VFDs) that cause harmonic current superposition on the neutral line.
• Optimized Selective Coordination: Precise magnetic trip behavior ensures only the affected branch is disconnected, preventing widespread outages (cascade tripping).
• Price Advantage: By leveraging Yueqing’s mature supply chain, we offer high-end performance at a competitive price point for small to medium-sized projects.

3. Technical Specifications

4. Key Application Fields

The 630A AC Magnetic Trip Circuit Breaker is trusted in mission-critical installations:

• Automatic Transfer Switches (ATS): Synchronous opening of neutral and phase lines ensures safe power switching without voltage spikes.
• Data Centers & Medical Facilities: Provides clean power protection by managing harmonic issues inherent in UPS and precision electronics.
• Industrial Asset Protection: Dedicated switch for high-power motors and heavy production machinery.

5. Quality Assurance & Certification

Our commitment to EEAT (Experience, Expertise, Authoritativeness, Trust) is backed by rigorous testing:

• Factory Standards: ISO9001, ISO14001, and ISO45001 certified manufacturing.
• Testing: Every 630A AC Magnetic Trip Circuit Breaker undergoes multi-stage inspections, including machine vision checks and lifespan validation.
• Endurance: Tested for up to 20,000 mechanical operations and 5,000 electrical cycles.

6. Why Choose Us Over Competitors?

• Integrated Service: We provide a "one-stop" system for design, installation, commissioning, and maintenance.
• Grounding Compatibility: Seamlessly works across TN-S, TN-C-S, and other grounding configurations.
• Manufacturing Agility: Direct China supplier advantages mean faster delivery (10-15 days) and direct R&D support for OEM/ODM requests.

7. FAQ

Why is 4-pole isolation necessary for a 630A breaker?

In systems with nonlinear loads, the neutral line can carry significant current. The 4-pole 630A AC Magnetic Trip Circuit Breaker ensures the neutral is safely disconnected alongside phases, protecting maintenance crews and preventing neutral potential drift.

What is the warranty and sample policy?

We provide a standard 12-24 month warranty on the 630A AC Magnetic Trip Circuit Breaker. Sample support is available for strategic project evaluations, including third-party test reports upon request.

How does your pricing stay competitive?

As a China factory in Yueqing, we minimize daily expenses by simplifying organization and utilizing local supply chains, passing those direct savings to our clients without compromising on high-quality components.

8. Logistics & Customization

Packaging: Secure, industrial-grade packaging optimized for international shipping to prevent vibration damage.
Customization: Full support for OEM branding, custom trip parameters, and auxiliary accessory integration (Shunt Trips, Auxiliary Contacts).
