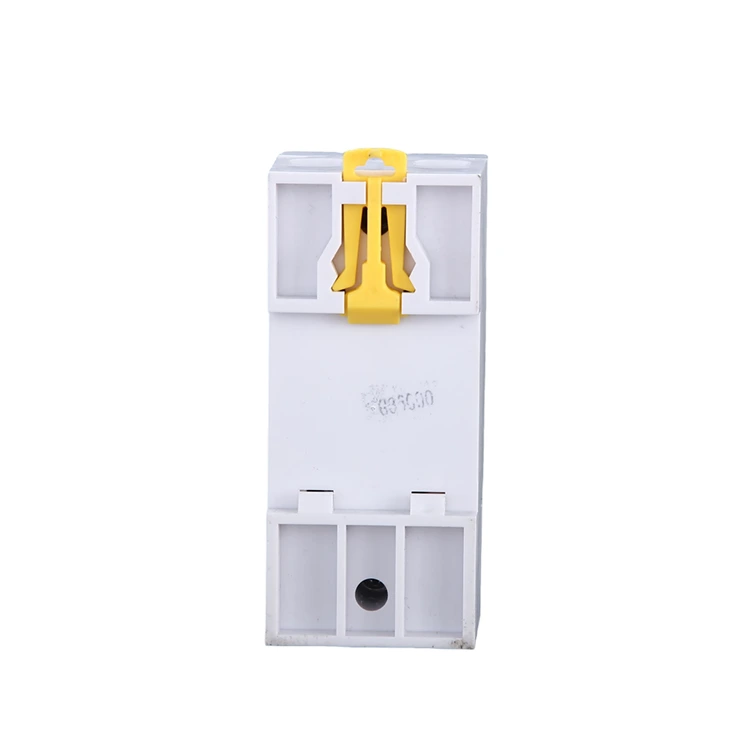

Intelligent Digital Voltage Protector

The Intelligent Digital Voltage Protector is designed for single-phase AC 220V systems with rated currents up to 63A. It is a device that monitors over-voltage, under-voltage, over-current, and surge conditions and prevents malfunctions caused by power supply voltages and overloads. Please adjust the overcurrent, high and low voltage settings according to the load's operating current and voltage values.

● Over Voltage Protection

● Under Voltage Protection

● Reset Mode Protective Device

Guideway voltage protector relay, 63A 230V adjustable, overvoltage and undervoltage surge protector. The main feature is that when the line overvoltage or undervoltage, overcurrent and other conditions, do can instantly cut off the power supply, to protect the power equipment from damage; when the line voltage is back to normal, the Intelligent Digital Voltage Protector can automatically and normal work, do not need to manually repeat the operation, the service life of 10,000 times.

Advantage

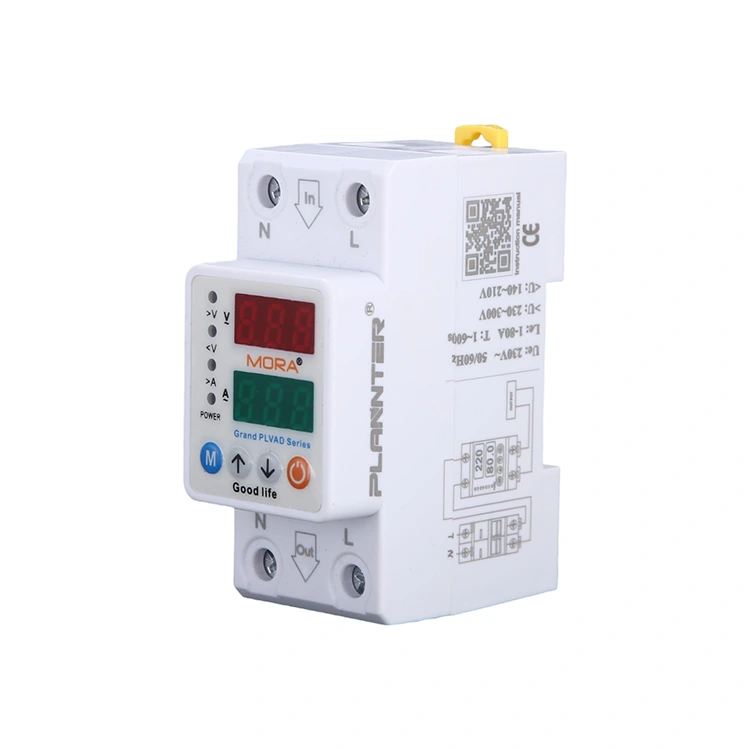

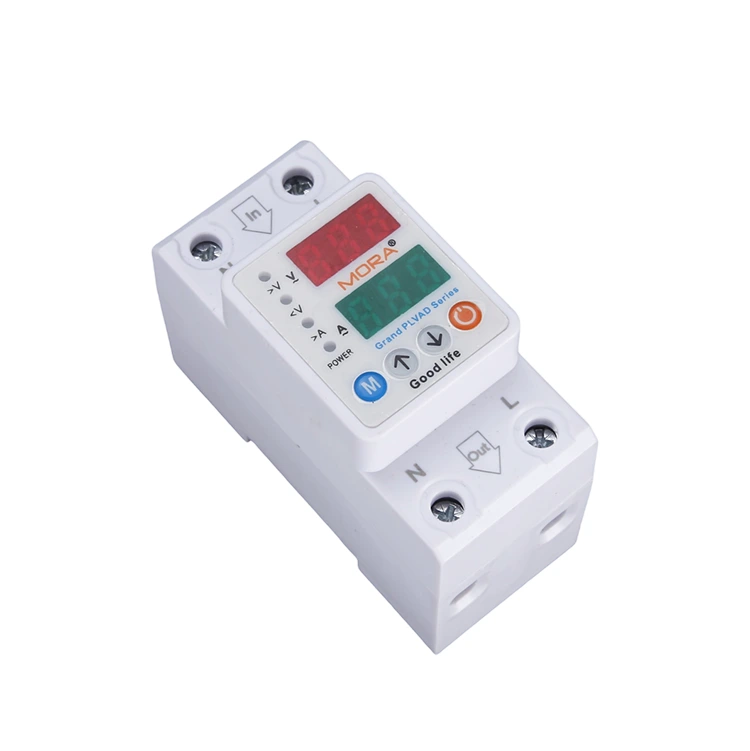

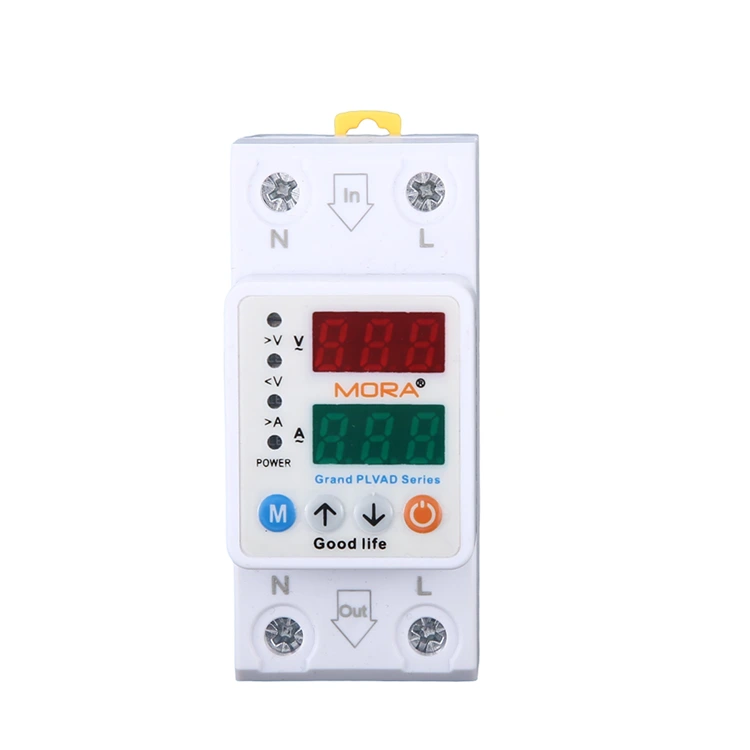

Dual LED display: clear and concise display shows numerical information such as voltage and current.

Over-voltage protection: over-voltage protection, under-voltage protection and other functions to protect equipment damage and avoid fire accidents.

Adjustable delay time: the Intelligent Digital Voltage Protector can be customized to set the over-voltage value, under-voltage value, over-current protection and fault recovery delay time is adjustable, when an abnormal situation is detected, it will automatically cut off the power output.

Applications:

Residential: Home appliances such as air conditioners, refrigerators, washing machines and other high power equipment will use this Intelligent Digital Voltage Protector to avoid being affected by electrical faults and to improve the safety and service life of the equipment.

Commercial: Current and voltage values can be set as required to protect office equipment, retail machinery and other commercial electrical equipment.

Industrial: Protect single-phase industrial equipment from abnormal voltage and current, reducing downtime and maintenance costs during construction.

After-sales service

Pugao(PLANNTER), as a professional factory, provides full support from inquiry to after-sales service. Specific procurement process: inquiry to confirm the model number to order to production to quality inspection to packaging to delivery to after-sales service. Normal delivery time is 10-15 working days, depending on order quantity and customization requirements.

We have certificates of ISO9001, ISO14001, ISO45001, IEC standard type test report, etc. Each Intelligent Digital Voltage Protector is fully tested. In case of quality problems, customers can provide detailed photos and our technical team will propose a solution within 2 days.

Important Considerations

To maximize the efficiency and safety of your electrical distribution system, it is crucial to understand the operational standards and capabilities of your protection devices. Here are the key factors to consider when deploying the Intelligent Digital Voltage Protector in your infrastructure.

Safety Standards and Ratings

Ensuring compatibility with your electrical system is the first step in preventing malfunctions. This device is specifically engineered for single-phase AC 220V systems with a rated current capacity of up to 63A. Key safety considerations include:

• Rated Capacity: Verify that your total load does not exceed the 63A limit to prevent overheating.
• Comprehensive Protection: The unit is designed to handle multiple fault conditions, including over-voltage, under-voltage, over-current, and surge events, significantly reducing the risk of fire and equipment damage.
• Service Life: Built for durability, the device supports up to 10,000 operational cycles, ensuring long-term reliability for both residential and industrial applications.

Monitoring and Visibility

Real-time data is essential for proactive maintenance. Unlike standard breakers that only trip, this protector features a dual LED display that provides clear and concise numerical information.

• Voltage Monitoring: Continuously displays the current line voltage, allowing you to detect grid instability immediately.
• Current Tracking: Shows the real-time amperage draw, helping you identify potential overloads before they trigger a shutdown.

Customization and Adjustability

One size does not fit all when it comes to electrical protection. To ensure optimal performance, the Intelligent Digital Voltage Protector allows for precise customization based on your specific load requirements:

• Threshold Adjustment: You can manually set the specific over-voltage and under-voltage limits to match the tolerance of your connected appliances (e.g., sensitive electronics vs. heavy motors).
• Over-Current Settings: Adjust the trip current according to the operating current of your load to prevent nuisance tripping.
• Delay Configuration: The fault recovery delay time is adjustable. This is critical for preventing "short-cycling" in appliances like refrigerators and air conditioners, allowing the system to stabilize before re-energizing.

FAQ

Understanding how electrical protection works is key to safeguarding your equipment. Below are the answers to common questions regarding the Intelligent Digital Voltage Protector and general electrical safety concepts.

What is the difference between a voltage protector and a surge protector?

While both devices protect against electrical issues, they serve different functions:

• Voltage Protector: This device (like the Intelligent Digital Voltage Protector) continuously monitors the line voltage. It cuts off power if the voltage stays too high (over-voltage) or too low (under-voltage) for a specific duration. It protects against sustained grid instability that can burn out motors or circuit boards.
• Surge Protector (SPD): An SPD is designed to divert extremely fast, high-voltage spikes (transients) to the ground, typically lasting microseconds. It protects against sudden events like lightning strikes or large appliances turning on/off, but it does not typically disconnect power for sustained low or high voltage issues.

What do "overvoltage" and "undervoltage" mean?

These terms refer to deviations from the standard voltage level (e.g., 220V/230V):

• Overvoltage: This occurs when the supply voltage rises significantly above the safe operating limit (e.g., above 260V). Causes can include neutral wire failure or grid switching. It can cause overheating, insulation breakdown, and permanent damage to sensitive electronics.
• Undervoltage (Brownout): This happens when the voltage drops below the required level (e.g., below 170V). This is particularly dangerous for motors in air conditioners and refrigerators, as they draw more current to compensate for the low power, leading to overheating and eventual burnout.

What is the purpose of the time delay function?

The time delay (or recovery delay) is a critical feature for appliance safety and system stability:

• Compressor Protection: For appliances like refrigerators and air conditioners, immediate power restoration after an outage can damage the compressor. The delay ensures the system waits (e.g., 30 seconds to several minutes) before reconnecting, allowing internal pressures to equalize.
• Grid Stabilization: When power is first restored after an outage, the voltage can be unstable. The Intelligent Digital Voltage Protector uses the delay to monitor the line and ensure the voltage remains within the safe range before allowing electricity to flow to your devices.
