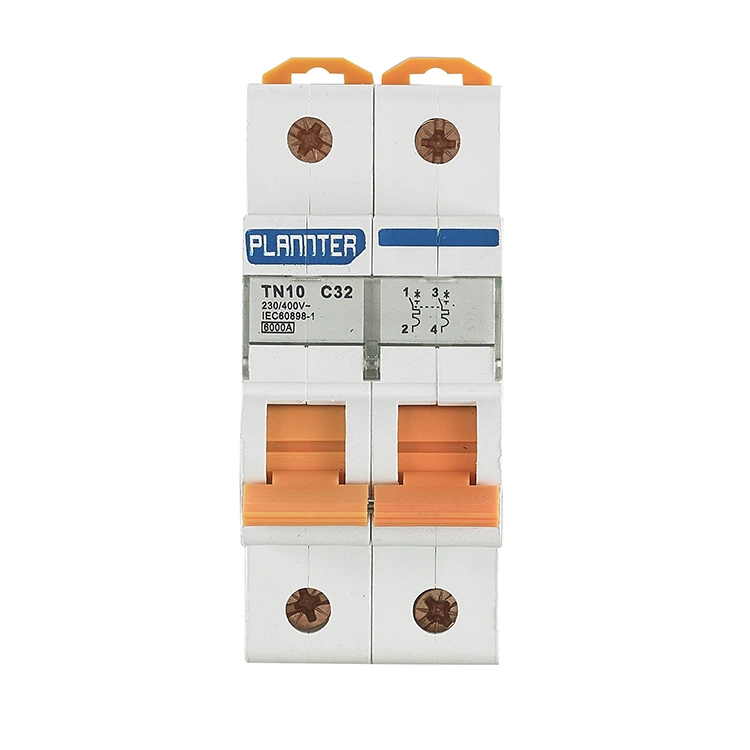

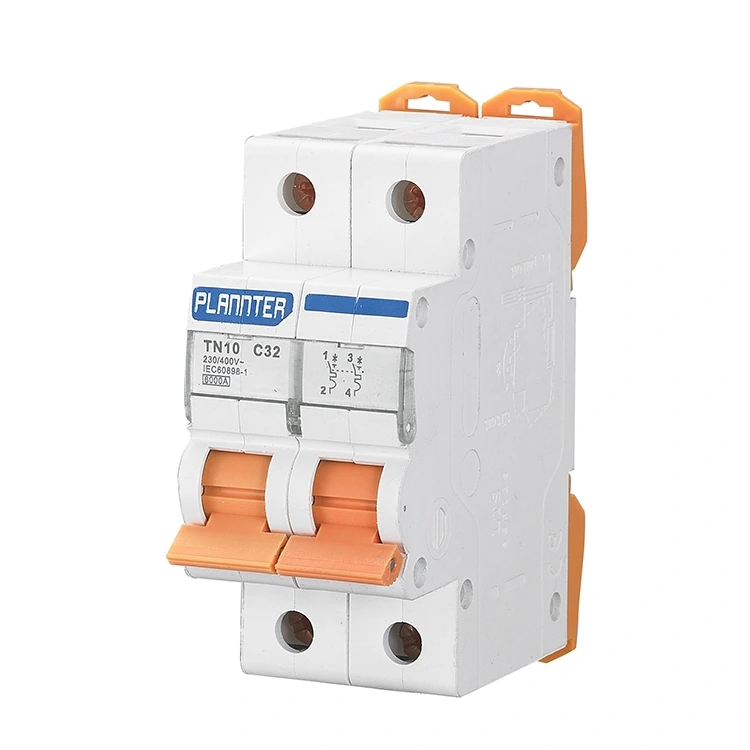

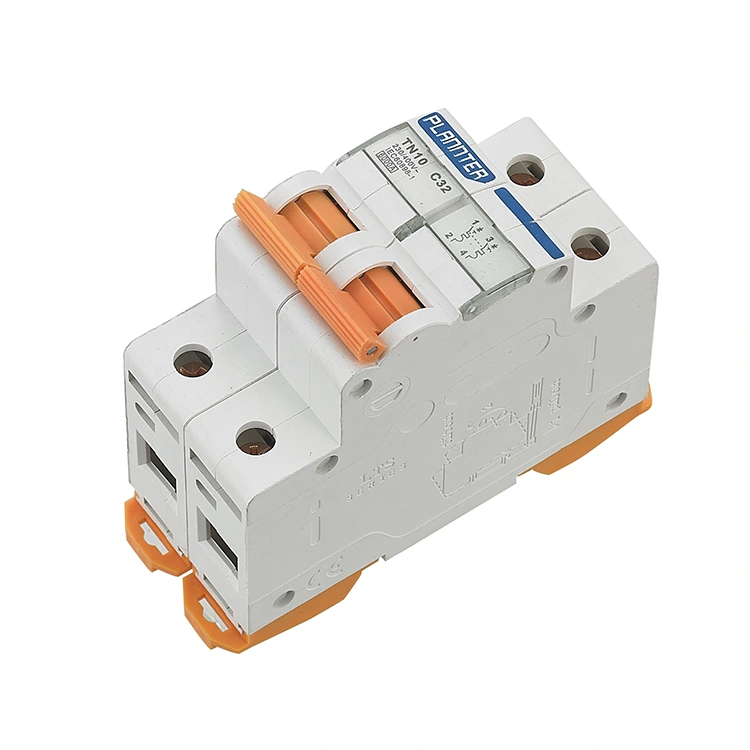

32A High Breaking Capacity Mini Circuit Breaker

PUGAO (Plannter Electric) 32A High Breaking Capacity Mini Circuit Breaker is a protection device that controls both poles (Fire and Zero) at the same time. Compared with a single pole circuit breaker that only cuts off the Fire wire, it realizes complete isolation of the circuit and provides a higher level of safety. When an overload or short-circuit fault occurs in the circuit, the product will respond quickly to cut off the current path of both poles synchronously, effectively preventing the potential safety hazards that may be caused by a charged zero line.

The rated current range of the product is from 6A to 63A, covering the needs of most application scenarios. The interrupting capacity is up to 6kA, which ensures that the fault current can still be reliably cut off in case of severe short-circuit.

What is a 32A High Breaking Capacity Mini Circuit Breaker?

A 32A High Breaking Capacity Mini Circuit Breaker is a low-voltage protection device with a rated current of 32 amperes and a high short-circuit breaking capacity; it is primarily designed to provide safety protection for electrical circuits operating in environments characterized by high fault currents.

Like standard circuit breakers, it serves to protect circuits rated at 32 amperes (typically corresponding to 6mm² or 10mm² cabling) and is suitable for applications such as air conditioners, water heaters, or small-scale industrial equipment.

The term "breaking capacity" refers to the maximum current magnitude that this circuit breaker can safely interrupt during a short-circuit fault without suffering damage—specifically, without the contacts welding together, exploding, or catching fire.

Standard circuit breakers typically have a breaking capacity of 4.5kA or 6kA, whereas high breaking capacity models feature a rating of 10kA or higher.

In the event of a severe short circuit, the instantaneous current can surge to as high as 8,000A. If a standard 6kA breaker were used in such a scenario, the device could potentially explode; however, a 10kA high breaking capacity breaker would be able to safely interrupt the power supply without sustaining any damage.

Application:

Residential power distribution system: as the main switch or branch circuit protection of home distribution box, to ensure the safety of home electricity consumption.

Commercial: This 32A High Breaking Capacity Mcb is used in lighting and socket circuits in shopping malls, office buildings and hotels to provide reliable leakage and overload protection.

Industrial environments: used in control cabinets, distribution boxes and other equipment to protect single-phase motors and other important loads.

Public facilities: this 32A High Breaking Capacity Mcb plays a key protective role in the power distribution system of schools, hospitals, stations and other public places

Temporary power supply: Provide safety protection in construction sites, outdoor activities and other temporary power supply occasions

In Which Scenarios Do We Recommend Selecting Circuit Breakers with a High Breaking Capacity?

1. Proximity to Transformers or Distribution Rooms

Principle: The closer the device is to the power source, the higher the potential short-circuit current. At the output of a transformer, the short-circuit current can easily exceed 10 kA.

Risk: Standard circuit breakers are unable to withstand such loads; therefore, high-breaking-capacity breakers must be employed as the primary line of defense.

2. Industrial Power Grids and Long Cable Runs

Principle: Industrial busbars are robust and possess low impedance, resulting in immense short-circuit energy.

Risk: Standard circuit breakers often lack sufficient arc-extinguishing capability; this failure to extinguish the arc can lead to fires within the distribution cabinet.

3. Cascaded Protection

Principle: In multi-tier power distribution systems, upstream circuit breakers require a higher breaking capacity to withstand the energy reflected back from downstream devices.

Risk: To ensure selective protection, the circuit breakers at the terminal end of the system often also require upgrading to models with a higher breaking capacity.

FAQ

Q: Is the 32A High Breaking Capacity Circuit Breaker suitable for motor starting loads?

A: Yes, provided the correct tripping curve is selected. For inductive loads such as electric motors, we recommend choosing a Type D tripping curve. This ensures that the circuit breaker does not nuisance trip when the motor generates a starting current of 5 to 8 times its nominal value; simultaneously, by leveraging its high breaking capacity, it provides the highest level of safety protection in the event of an internal short-circuit fault within the motor.

Q: Why does PUGAO's 32A circuit breaker exhibit lower temperature rise under heavy loads?

A: Temperature rise is a critical metric for assessing the quality of high-current circuit breakers. We utilize a fully automated spot-welding process to secure internal current-carrying components, resulting in extremely low contact resistance.

Combined with an optimized internal airflow design for heat dissipation, internal heat generation remains well below international standard limits—even when operating at a full load of 32A. This significantly extends the service life of both the circuit breaker and the wire insulation.

Q: Can the 32A High Breaking Capacity Mini Circuit Breaker be installed in a standard residential distribution box?

A: Absolutely. It features a standard 18mm modular design and is compatible with 35mm DIN rail mounting systems. Although it delivers industrial-grade protection performance, it retains a compact form factor.
