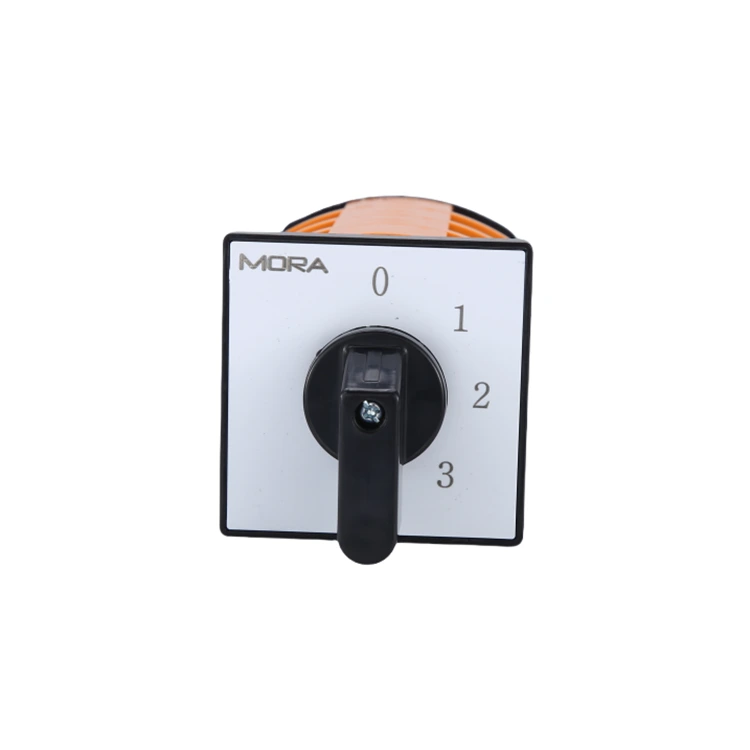

Padlock Type Power Cut Off Switch For Safety LOTO
Buy Pugao Padlock Type Power Cut Off Switch For Safety LOTO for controlled power isolation during equipment maintenance. The lockable handle prevents unintended switching, supports safe shutdown procedures, and fits AC/DC low-voltage applications including motors and lighting circuits.
During industrial maintenance, disconnecting power is only the first step. The more critical requirement is preventing someone else from restoring power while another person is working on the equipment. A visible OFF position cannot always stop unintended operation, while a mechanically locked handle creates a clearer separation between maintenance work and power control.
Why Lockable Power Isolation Matters In Maintenance Operations?
Equipment maintenance often involves multiple workers, different shifts, and shared access to electrical panels. In these situations, accidental switching can occur when the operator does not know that maintenance work is underway.
The Padlock Type Power Cut Off Switch For Safety LOTO addresses this issue through a physical locking method. After moving the handle to the OFF position, authorized personnel can install a safety padlock to prevent the switch from being turned back on without approval.
The locking function helps maintenance teams achieve:
Controlled power shutdown: The disconnected state remains under the control of the person performing maintenance.
Reduced accidental operation risk: Other personnel cannot easily change the switch position during servicing.
Clear maintenance identification: The locked handle shows that the circuit is intentionally isolated.
Improved workflow coordination: Different teams can recognize equipment status before operation.
Rather than relying only on warning labels or communication between workers, the lockable mechanism adds a direct physical control point to the electrical system.
Mechanical Structure Behind The Locking Function
The operating mechanism of the Padlock Type Power Cut Off Switch For Safety LOTO is based on a direct mechanical transmission structure. Unlike electronic isolation devices that depend on control signals, this switch changes the circuit status through physical movement of internal components.
The main components include:
|
Component
|
Working Function
|
Value For Users
|
|
Rotating shaft
|
Transfers handle movement to the internal switching mechanism
|
Maintains direct mechanical control
|
|
Cam
|
Changes contact position according to handle rotation
|
Controls circuit connection and disconnection
|
|
Contact seat
|
Provides the electrical contact path
|
Supports stable switching operation
|
|
Positioning mechanism
|
Keeps the selected gear position fixed
|
Prevents unintended position movement
|
|
Handle assembly
|
Controls switching and accepts padlock locking
|
Allows visible isolation management
|
How The Locking Process Works
The operation process is straightforward:
-
The operator rotates the handle to the OFF position.
-
Internal contacts separate to interrupt the circuit.
-
A safety padlock is installed through the locking point on the handle.
-
The handle remains fixed until the authorized person removes the lock.
This method allows maintenance personnel to maintain control over the energy source during servicing. The switch does not replace complete electrical safety procedures, but it provides a practical mechanical isolation point within those procedures.
Electrical Parameters And Application Limits
Selecting an isolation switch requires matching the device with the actual electrical environment. The Padlock Type Power Cut Off Switch For Safety LOTO is intended for low-voltage circuits where manual connection and disconnection are required.
|
Parameter
|
Specification
|
|
Applicable frequency
|
AC 50Hz
|
|
Applicable voltage
|
AC 380V / DC 220V
|
|
Motor control capability
|
Direct starting of small-capacity motors below 5KW
|
|
Control applications
|
Motor forward/reverse operation and lighting circuits
|
|
Recommended switching frequency
|
15–20 times per hour or below
|
The switch is mainly used for occasional switching operations. It is not intended for applications requiring frequent automatic switching cycles.
For procurement teams, confirming operating frequency, voltage requirements, and installation environment before ordering helps avoid mismatching the switch with the electrical system.
Applications Where Manual Isolation Is Required
The Padlock Type Power Cut Off Switch For Safety LOTO is commonly selected for equipment where operators need a visible and manually controlled power interruption point.
Industrial Control Cabinets
In electrical control panels, the switch can serve as a main isolation component. Maintenance personnel can disconnect the incoming power before checking wiring, replacing components, or carrying out repairs.
Small Motor Equipment
For motors below 5KW, the switch can be used in direct starting circuits and forward/reverse control applications. It offers operators a local method to disconnect power before equipment adjustment.
Lighting And Power Introduction Circuits
The switch can also be applied in lighting circuits and power entry points where operators require a clearly identifiable manual ON/OFF control position.
Maintenance Zones
Factories, workshops, and equipment rooms often require clear responsibility for power access. A lockable isolation switch helps separate normal operation from maintenance activities.
Pugao Manufacturing Capability For Electrical Switch Production
Zhejiang Pugao Electric Power Co., Ltd. (Plannter Electric) has manufactured low-voltage electrical equipment since 2011. The company focuses on products including power distribution switches, control equipment, motors, instrumentation, and related electrical components for international markets.

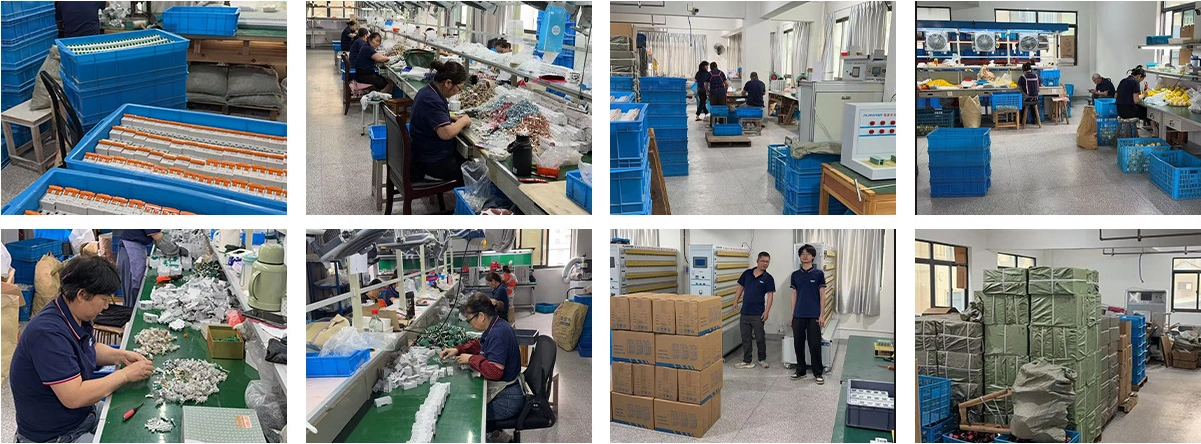

The production system includes:
Automated small circuit breaker semi-production lines.
Automatic packaging and laminating production lines.
Fully automatic punching machines.
Product inspection and validation workbenches.
Automated laser marking equipment.
Semi-automatic pad printing machines.
Multiple manual production assembly lines.
Semi-automatic spot welding machines.
These facilities support key manufacturing stages such as component processing, assembly, marking, packaging, and inspection.
For distributors and equipment manufacturers, production consistency depends not only on equipment capability but also on process control. Pugao maintains inspection procedures throughout production to verify product performance before shipment.
Compliance Documents And Quality Management
Pugao established its quality management system according to international manufacturing requirements and obtained ISO9001 international quality system certification in 2024.
The company has obtained or completed the following compliance verification documents:
|
Document
|
Organization
|
|
Verification of EMC Compliance
|
GTS
|
|
Declaration of Conformity – EMC Directive
|
—
|
|
Verification of Compliance
|
Eurofins
|
|
Electromagnetic Compatibility Directive Attestation of Conformity
|
UDEM
|
|
Certificate of Compliance
|
ECM
|
These documents support overseas customers evaluating electrical equipment compliance requirements for different markets.
Why International Buyers Work With Pugao
Purchasing electrical components from overseas suppliers requires more than checking product specifications. Buyers usually need to evaluate production capability, quality control process, communication efficiency, and the supplier’s ability to handle customized requirements.
Pugao has focused on low-voltage electrical manufacturing since 2011 and has developed experience serving international customers in power distribution and control equipment fields.
Manufacturing Experience Based On Long-Term Production
Since establishment, Zhejiang Pugao Electric Power Co., Ltd. has continuously expanded its production capability:
2011: Company established.
2012: Yiwu Foreign Trade Department established.
2013: Registered the “PLANNTER” trademark.
2016: Factory staff reached 50, including technical personnel.
2018: Sales reached nearly $10 million, mainly from international markets.
2020: New factory building of approximately 5,000 square meters completed.
2021: Automated miniature circuit breaker packaging line established.
2024: Obtained ISO9001 international quality system certification and intellectual property management system certification.
This production history allows Pugao to understand the requirements of overseas distributors, electrical equipment manufacturers, and industrial users.
Customization Support For Different Electrical Requirements
Different markets and equipment applications may require adjustments in product configuration.
Pugao provides technical communication regarding:
Electrical parameter requirements.
Product configuration adjustments.
Functional modification requirements.
Packaging and identification requirements.
For buyers developing new electrical equipment or replacing existing components, early technical confirmation helps ensure the selected switch matches the intended application.
Service Process For Overseas Customers
Pugao’s cooperation process includes:
-
Confirming product specifications and application requirements.
-
Reviewing technical details before production.
-
Manufacturing according to confirmed requirements.
-
Conducting inspection before shipment.
-
Providing after-sales communication after delivery.
This process helps reduce misunderstandings between suppliers and buyers during international purchasing.
Frequently Asked Questions
The switch is used to disconnect electrical circuits during maintenance, inspection, or equipment adjustment. Its lockable handle allows operators to secure the OFF position and reduce the possibility of accidental power restoration.
Can the switch remain locked in the ON position?
The primary safety application is locking the switch in the OFF position. This prevents unauthorized energization while maintenance work is being performed. The exact locking function depends on the selected cam configuration.
What type of padlocks can be used?
The handle is designed to accommodate safety padlocks. It can also work with group lockout hasps when several maintenance personnel need individual locking control.
Where is this switch normally installed?
Typical installation locations include:
Industrial control panels.
Motor circuits for small-capacity motors below 5KW.
Lighting control circuits.
Power supply introduction circuits.
The installation method should be selected according to the electrical design requirements of the equipment.
What operating conditions should buyers confirm before purchase?
Before ordering, buyers should verify:
Voltage requirement.
AC or DC system type.
Required switching frequency.
Motor power level if used for motor control.
Installation environment.
The switch is designed for systems where switching operations are relatively infrequent, with recommended operation frequency not exceeding 15–20 times per hour.
Choose Pugao For Controlled Electrical Isolation Applications
The Padlock Type Power Cut Off Switch For Safety LOTO represents a practical approach to manual power isolation where maintenance safety and unauthorized operation prevention are important considerations.
With manufacturing experience since 2011, documented quality management practices, compliance verification records, and production equipment for electrical component manufacturing, Pugao supports international buyers looking for stable low-voltage switch supply.
For distributors, control panel builders, and equipment manufacturers, Pugao can provide technical communication and manufacturing support based on specific electrical application requirements.
