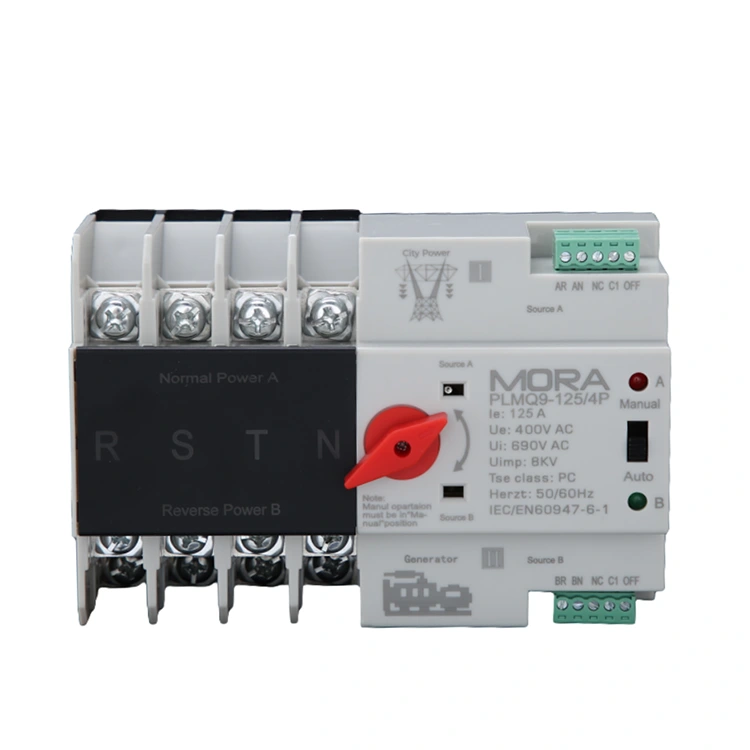

Din Rail Mount Solar Battery Changeover Switch
Pugao Din Rail Mount Solar Battery Changeover Switch supplier delivers reliable dual-power switching solutions with DIN rail compatibility, ≤1.5s conversion, compact PZ30 installation design, and OEM/ODM support for global electrical distributors.
Many installers experience a common problem when selecting transfer switches: the device may not match existing distribution boxes, the mounting structure may require modification, or the overall depth may affect cabinet installation. Pugao developed this DIN rail solution to simplify field installation. The compact design allows direct mounting on standard 35mm DIN rails and is suitable for commonly used modular distribution boxes, including PZ30-type applications.
The design concept focuses on practical installation efficiency — a Plug & Play solution that allows installers to replace or install the switch without unnecessary distribution cabinet reconstruction.
DIN Rail Design Developed for Easy Cabinet Integration
A transfer switch used in solar backup systems must not only provide electrical switching but also fit the physical requirements of the installation environment. Incorrect dimensions or incompatible mounting structures can increase labor costs and delay project completion.
The Din Rail Mount Solar Battery Changeover Switch is designed with a standard modular installation structure to support easier integration into existing electrical panels.
Installation Advantages
Standard 35mm DIN rail mounting structure.
Suitable for compact modular distribution boxes.
Designed for PZ30 standard distribution box applications.
Compact housing helps save internal cabinet space.
Simplifies replacement, maintenance, and system upgrades.
Reduces the need for additional panel modification during installation.
For electrical contractors and distributors, installation compatibility is an important purchasing factor. A switch that fits existing cabinet systems helps improve project efficiency and reduces unexpected installation adjustments.
Reliable Dual Power Switching for Solar Backup Applications
Solar energy storage systems require dependable switching equipment to manage power source changes between utility supply and backup power sources.
The Din Rail Mount Solar Battery Changeover Switch enables switching between primary power and backup sources such as solar batteries or generators. It supports both automatic electric operation and manual emergency operation, allowing flexible control according to different application requirements.
Core Performance Features
Fast conversion:
Conversion time ≤1.5 seconds helps reduce the impact of power interruption.
Flexible operation:
Automatic switching mode for normal backup power management.
Manual switching mode for emergency operation.
Broad electrical application:
Suitable for AC 50/60Hz systems.
Rated voltage up to 400V.
Rated current up to 100A.
Long-term switching durability:
Silver alloy contacts provide wear resistance and arc resistance.
Mechanical life ≥10,000 operations.
Electrical life ≥5,000 operations.
Technical Specifications
|
Item
|
Specification
|
|
Product Name
|
Din Rail Mount Solar Battery Changeover Switch
|
|
Brand
|
Pugao
|
|
Manufacturer
|
Zhejiang Pugao Electric Power Co., Ltd.
|
|
Installation Type
|
35mm DIN rail mounting
|
|
Application
|
Solar battery backup systems, generators, emergency power systems
|
|
Rated Voltage
|
Up to 400V
|
|
Rated Frequency
|
AC 50/60Hz
|
|
Rated Current
|
Up to 100A
|
|
Conversion Time
|
≤1.5 seconds
|
|
Operation Mode
|
Automatic electric operation / manual emergency operation
|
|
Contact Material
|
Silver alloy
|
|
Mechanical Life
|
≥10,000 operations
|
|
Electrical Life
|
≥5,000 operations
|
|
Housing Material
|
Flame-retardant ABS
|
|
Protection Level
|
IP20
|
Engineering Considerations for Solar Battery Transfer Systems
Selecting a suitable changeover switch requires more than checking electrical ratings. Buyers should consider installation space, switching requirements, protection features, and long-term maintenance.
Key Selection Factors
1. Installation Compatibility
Before purchasing, confirm:
DIN rail mounting requirements.
Distribution box dimensions.
Available installation depth.
Connection arrangement.
The compact modular structure of Din Rail Mount Solar Battery Changeover Switch helps meet common residential and small commercial installation requirements.
2. Switching Requirements
Different projects may require different operating methods:
Automatic transfer for systems requiring faster response.
Manual operation for emergency control situations.
Dual-mode operation for flexible system management.
3. Protection Requirements
The switch includes:
Overload protection function.
Short-circuit protection function.
Flame-retardant ABS housing.
IP20 protection design.
These features help improve operational safety inside enclosed distribution environments.
Manufacturing Experience Behind Pugao Electrical Solutions
Zhejiang Pugao Electric Power Co., Ltd. was established in 2011 and has specialized in low-voltage electrical equipment manufacturing for 14 years. The company mainly exports power distribution switches, control equipment, motors, instrumentation, and related electrical products to international markets.
Pugao operates a manufacturing facility equipped with:
Automated small circuit breaker semi-production lines.
Automatic packaging and laminating production lines.
Fully automatic punching machines.
Product inspection and validation workstations.
Automated laser marking equipment.
Semi-automatic product pad printing machines.
Multiple manual production lines.
Semi-automatic spot welding machines.
These production resources support stable manufacturing processes and consistent supply capability for overseas customers.
Quality Management and International Market Supply
Pugao maintains a comprehensive quality management system and has obtained ISO9001 international quality system certification. The company has also obtained EMC-related compliance verification documents from professional organizations, including:
EMC Compliance Verification.
Declaration of Conformity related to EMC requirements.
Eurofins compliance verification.
UDEM electromagnetic compatibility conformity attestation.
ECM certificate of compliance.
Pugao electrical products have been supplied to overseas markets including the Middle East, Central Asia, and Africa, supporting customers requiring reliable low-voltage electrical solutions.
Why Do Global Buyers Choose Pugao Solar Switching Solutions?
Purchasing electrical components for international projects requires more than competitive pricing. Buyers need stable manufacturing capability, reliable product consistency, and flexible cooperation support.
Pugao provides value through a combination of manufacturing experience, quality management, and customization capability.
Advantages for Distributors and Electrical Contractors
Factory-direct manufacturing support
Pugao is a manufacturer of low-voltage electrical equipment rather than a trading company. Direct factory production allows better control of product quality, production scheduling, and customization requirements.
Stable production capability
With automated production equipment, inspection workstations, and multiple assembly lines, Pugao supports continuous supply for overseas customers.
Application-focused design
The Din Rail Mount Solar Battery Changeover Switch is developed around practical installation requirements, especially for projects where cabinet space, mounting compatibility, and maintenance convenience are important.
OEM/ODM customization capability
Pugao supports customized solutions according to customer drawings, technical specifications, and project requirements.
OEM and ODM Service Process
Different markets and electrical projects may require customized parameters, appearance designs, or packaging solutions. Pugao provides a structured customization process to support international buyers.
Customization Procedure
-
Customer provides drawings, specifications, or technical requirements.
-
Pugao engineering team reviews application requirements.
-
Technical solution and production details are confirmed.
-
Manufacturing and quality inspection are completed before shipment.
This process helps distributors and electrical brands develop products suitable for their target markets while maintaining manufacturing consistency.
Applications of Din Rail Mount Solar Battery Changeover Switch
The switch is suitable for electrical systems where reliable power transfer between different sources is required.
Typical Application Areas
Residential backup power systems
Used in homes equipped with solar energy storage systems where continuous electricity supply is important.
Commercial electrical installations
Suitable for small commercial facilities requiring backup power switching capability.
Industrial auxiliary power systems
Applicable to industrial environments where power interruption may affect equipment operation.
Areas with unstable grid supply
Provides a practical solution for switching between grid power and backup energy sources.
Installation Recommendations
Proper installation is important to ensure safe operation and reliable performance.
Before Installation
Confirm:
Rated voltage and current requirements.
Distribution cabinet compatibility.
DIN rail installation space.
Wiring requirements according to electrical standards.
During Installation
Recommended practices:
Install on a compatible 35mm DIN rail.
Ensure correct wiring according to system design.
Verify switching operation before putting the system into service.
Application Limitation
The switch is designed for enclosed electrical distribution environments. With IP20 protection, additional protection measures are required when used in locations exposed to outdoor conditions or direct environmental impact.
Frequently Asked Questions
What is the difference between a solar battery changeover switch and a standard transfer switch?
A solar battery changeover switch is designed specifically for backup power systems where the secondary source may come from solar energy storage or battery systems. Compared with general transfer switches, it focuses on compact installation, flexible source switching, and compatibility with residential or small commercial power distribution systems.
Why is 35mm DIN rail mounting important for this type of switch?
A standard 35mm DIN rail design allows the switch to be installed directly into modular electrical cabinets without additional mounting brackets or panel modification. This structure is widely used in distribution boxes and helps simplify installation, replacement, and maintenance work.
Can a DIN rail changeover switch be installed in a PZ30 distribution box?
Yes. The compact DIN rail structure is suitable for PZ30-type modular distribution box applications. Before installation, users should confirm cabinet depth, available mounting space, wiring arrangement, and electrical ratings to ensure proper compatibility.
When should an automatic and manual changeover function be used?
Automatic switching is suitable for applications requiring faster power transfer when the main supply fails. Manual operation provides additional control during maintenance, troubleshooting, or emergency situations where direct switching is required.
How does contact material affect changeover switch performance?
Contact materials influence electrical conductivity, wear resistance, and switching durability. This switch uses silver alloy contacts, which provide good conductivity and resistance against repeated switching wear during normal operation.
What factors should be considered when selecting a solar battery changeover switch?
Important factors include rated voltage, rated current, switching mode, installation method, cabinet compatibility, and application environment. For AC 50/60Hz systems, selecting a switch that matches the electrical parameters is essential for safe operation.
Why is IP20 protection suitable for modular electrical installations?
IP20 protection is commonly used for enclosed electrical equipment installed inside distribution cabinets. It helps reduce accidental contact with internal conductive parts but requires additional enclosure protection for outdoor or exposed environments.
Conclusion
Pugao manufactures Din Rail Mount Solar Battery Changeover Switch solutions designed for reliable dual power management, compact cabinet installation, and flexible international project requirements. With 14 years of low-voltage electrical manufacturing experience, certified quality management systems, automated production equipment, and OEM/ODM support, Pugao provides practical switching solutions for global distributors, contractors, and electrical system suppliers.
