MCB Miniature Circuit Breaker

Pugao is an MCB Miniature Circuit Breaker factory that runs internal performance test benches for each batch of MCBs. Our MORA TM10s r series miniature circuit breakers strictly comply with the IEC standard 60898-1. We provide clear travel curve selection documents, stable batch consistency, flexible proprietary OEM, and export optimized bulk packaging. We support small trial orders from global electrical wholesalers, cabinet panel manufacturers, and system integrators, up to full box loading. CFR, CIF, DAP. You can designate your own freight forwarder or use our long-term cooperative freight partner.

Mora ELECTRIC TM10s series MCB is miniature circuit breaker without residual current protection, available in 1P,2P,3P,4P versions, rated current C63. Rated voltage 230/400V AC 50Hz, breaking capacity 6000A. It adopts C-curve trip characteristic.

It complies with IEC/EN 60898-1 and GB/T10963.1 standards with CE mark. It provides overload and short-circuit protection for electrical circuits. It can be mounted on standard 35mm DIN rail.

1P for single-phase branch circuit; 2P for single-phase main circuit; 3P for three-phase loads; 4P for three-phase four-wire main switch. Widely used in residential, commercial and industrial distribution boxes.

When purchasing miniature circuit breakers, electrical distributors and panel manufacturers repeatedly face avoidable on-site failures:

1. Mismatch of trip curves leads to on-site faults: Many general suppliers transport default C-curve devices without clear selection guidance. The installation personnel installed the C-curve on sensitive lighting circuits or the B-curve on motor loads, resulting in disruptive tripping or insufficient short-circuit protection, leading to on-site rework and warranty claims.

2. Poor quality bimetallic strips and magnetic coils can result in different trip thresholds for different production batches, which cannot be detected through simple visual inspection.

3. Import compliance risk: Missing or incomplete IEC test reports may pose a risk of customs detention for container level goods.

Many factories only accept huge minimum order quantities for their own label marking; We do not support mixed rated mixed pole packaging with distributor inventory.

4. Ordinary inner bag packaging can cause scratches on the outer shell and damage to the lever during long-distance shipping container vibration.

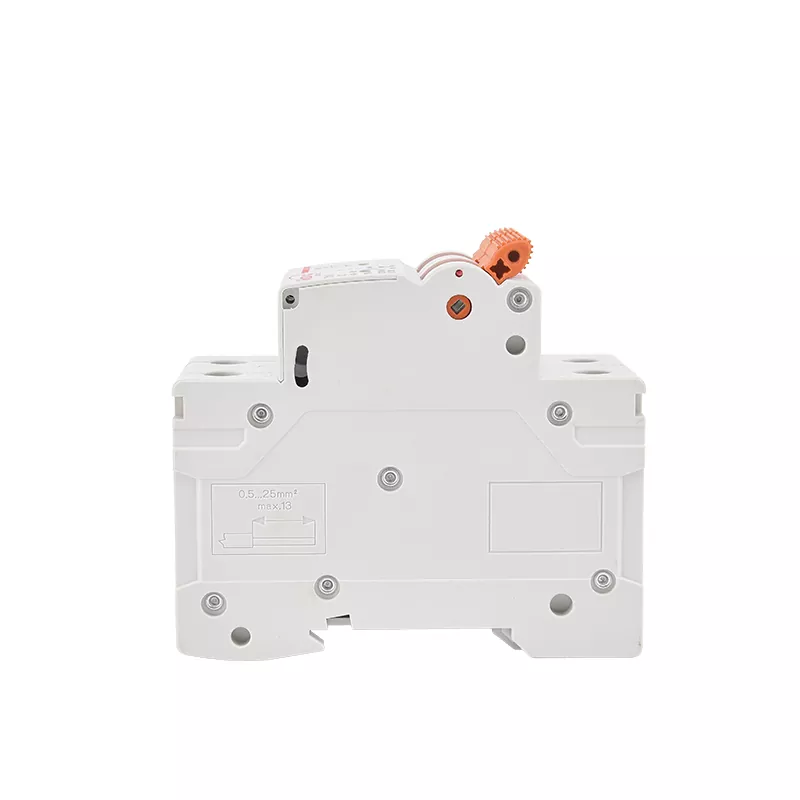

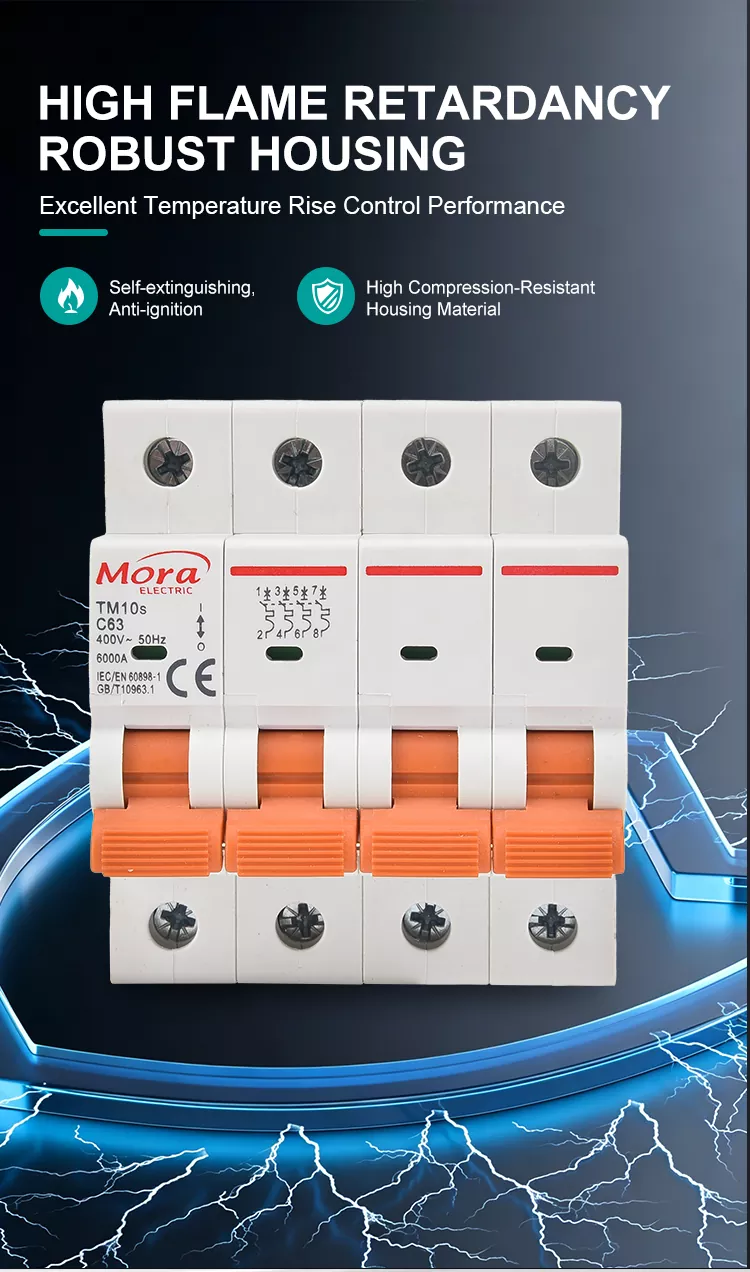

MCB Miniature Circuit Breaker is a modular rail mounted electromechanical protection component used in AC low-voltage distribution systems. It provides dual protection: thermal bimetallic overload protection and electromagnetic coil short circuit protection. Unlike disposable fuses, it can be manually reset after troubleshooting without the need to replace components. The shell is made of high-quality flame-retardant thermoplastic material, suitable for dense installation inside distribution boxes and control cabinets.

Product interpretation:

Mora TM10s series MCB miniature circuit breaker (air switch, without leakage)

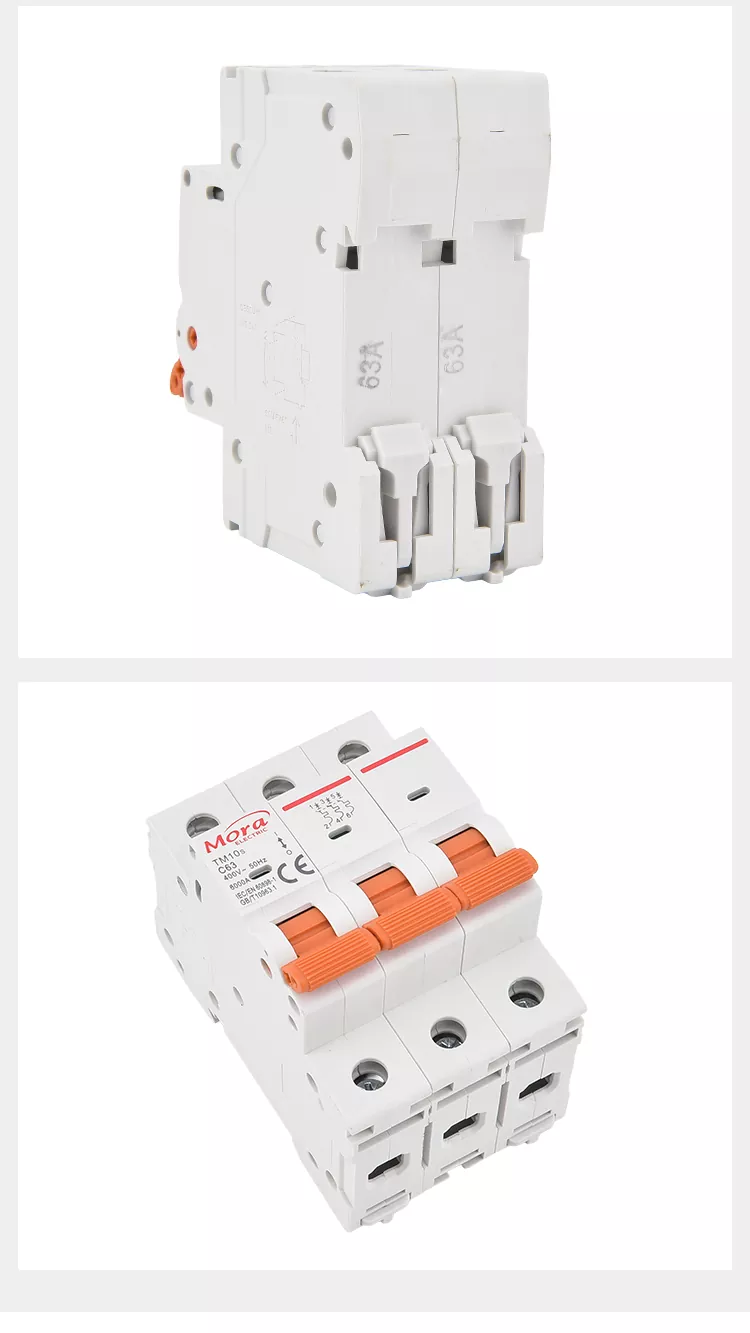

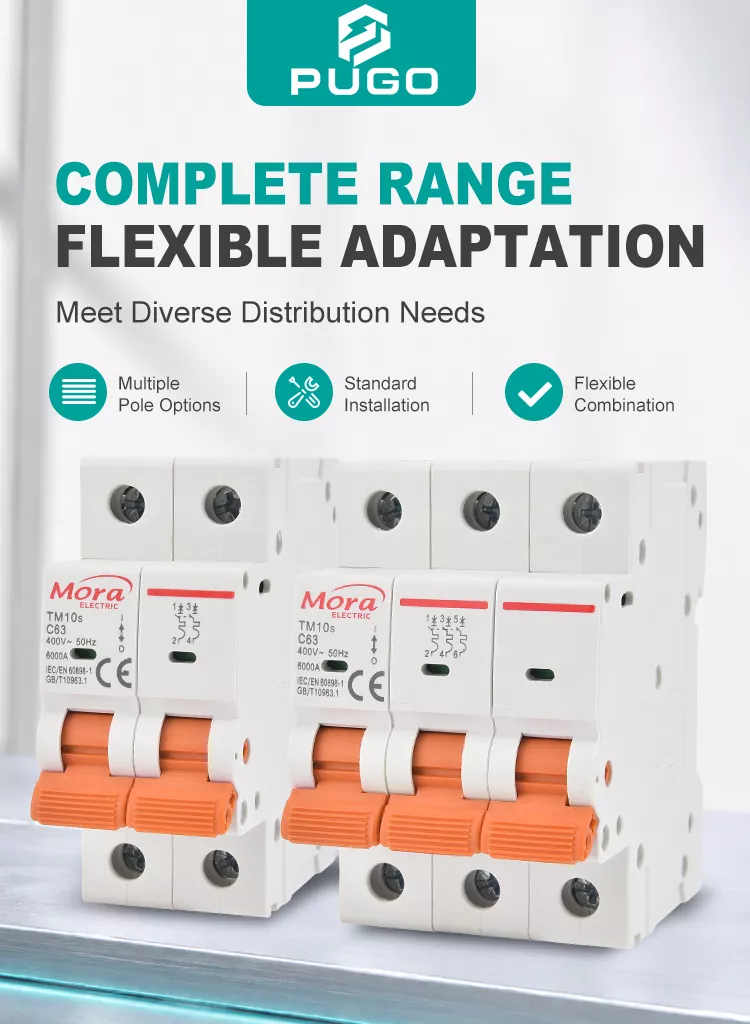

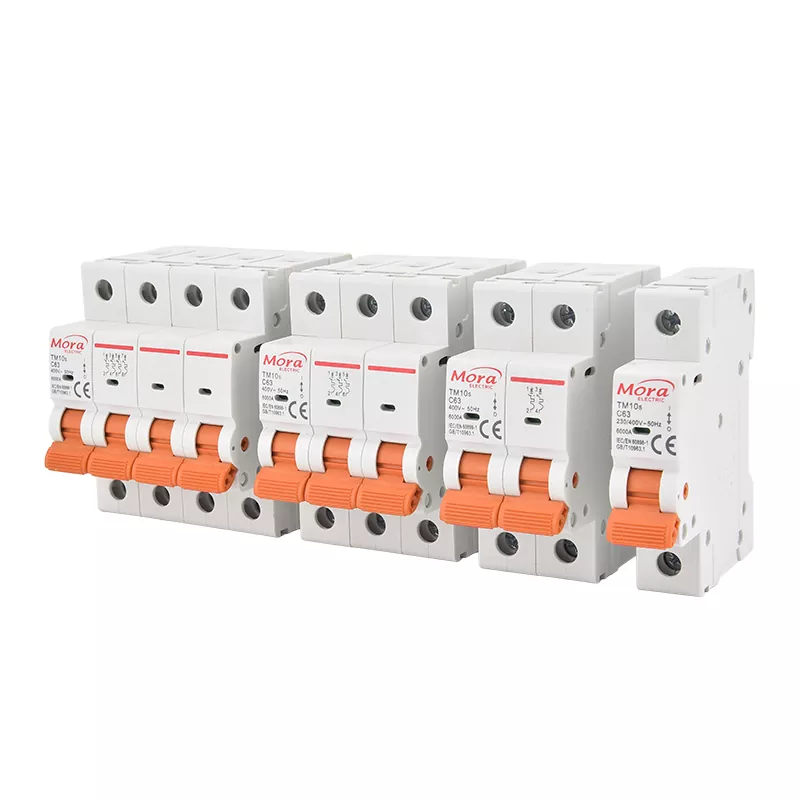

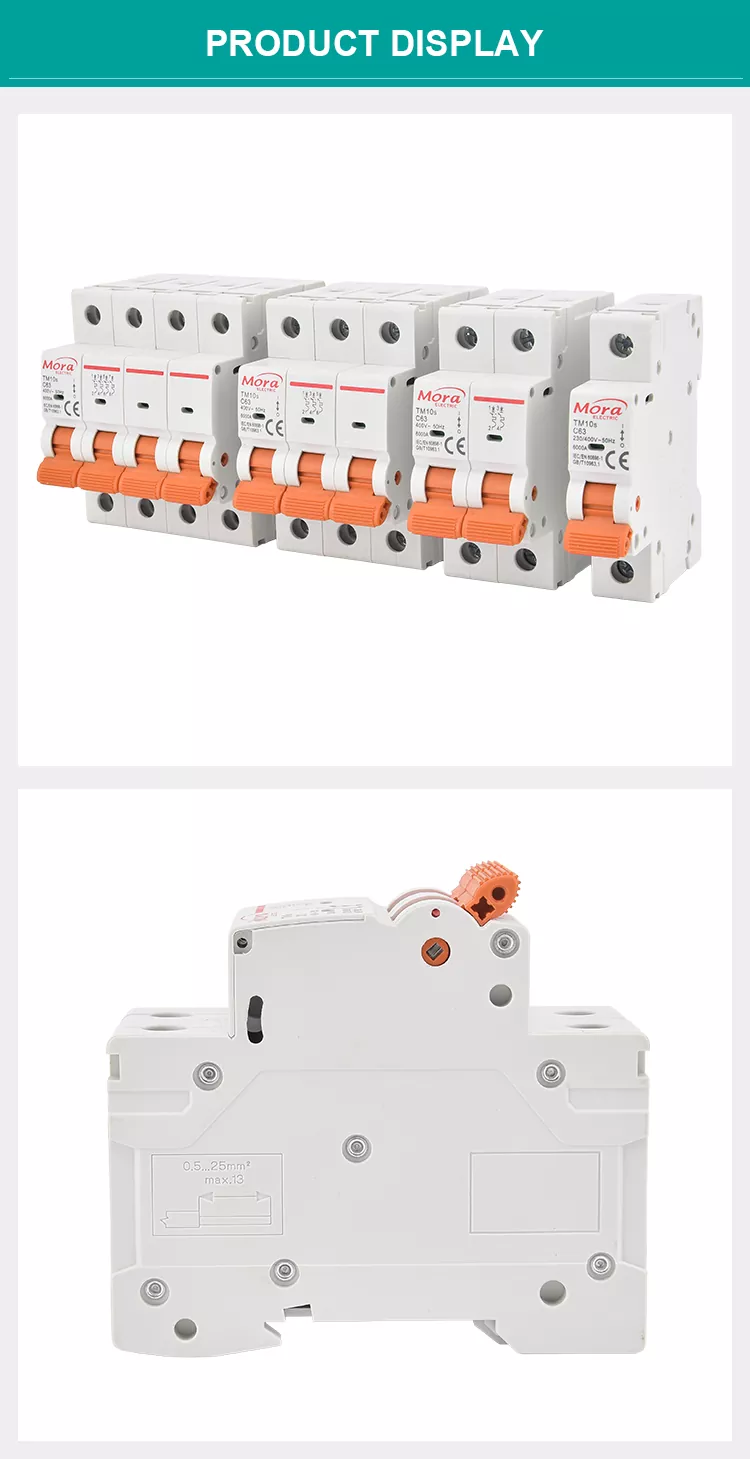

These four are Mora brand modular miniature circuit breakers MCBs, which only provide overload+short circuit protection, no leakage protection, rail installation, with 4 specifications in sequence: 1P/2P/3P/4P

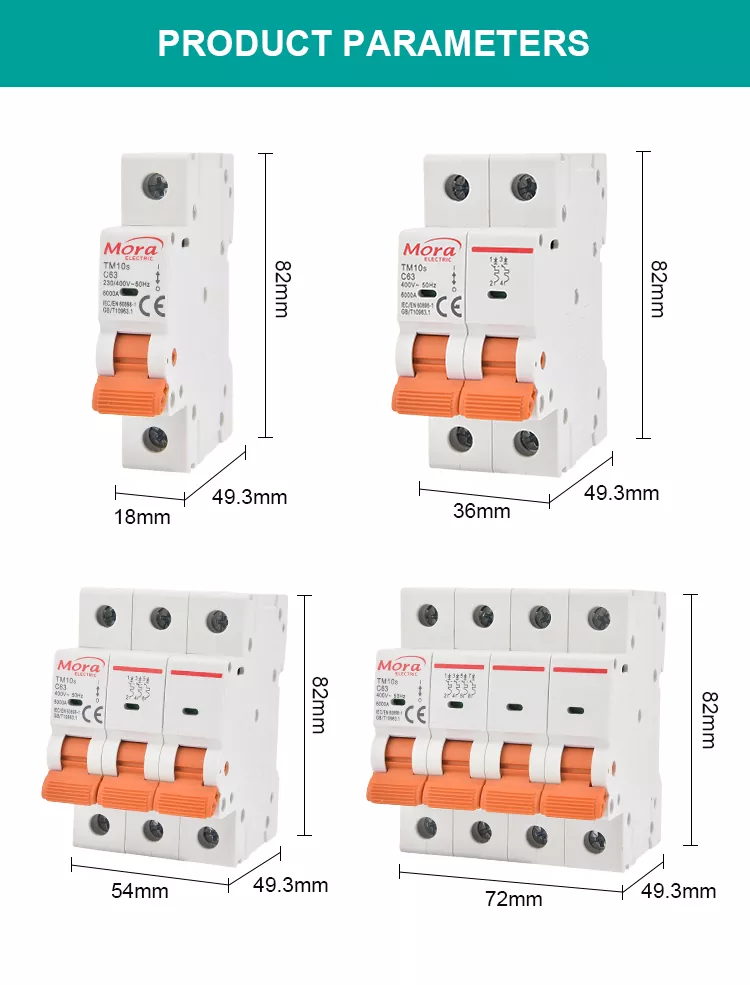

General Parameters

Brand: Mora

Model: TM10s C63

C63: C-type trip curve, rated current 63A

Rated voltage: 230/400V~50Hz

Rated short-circuit breaking capacity: 6000A (6kA)

Execution standards: IEC/EN 60898-1, GB/T10963.1, CE certification

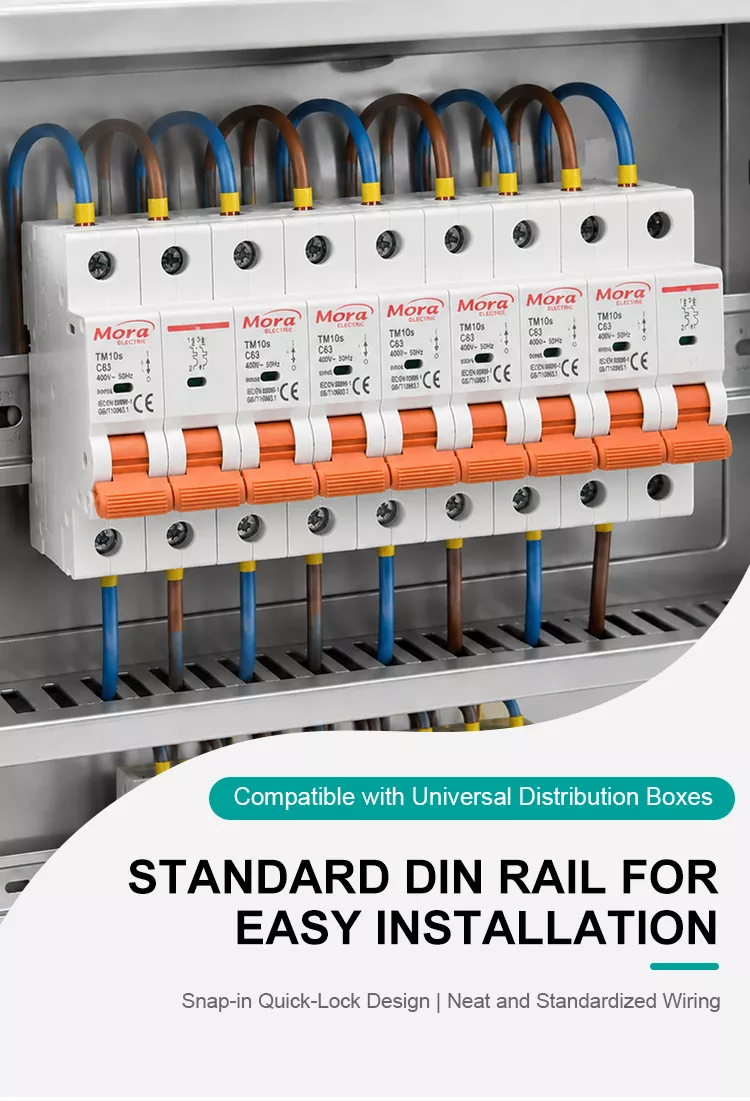

Installation: Standard 35mm DIN rail buckle installation

C-curve: suitable for lighting, ordinary household appliances, and conventional distribution circuits, capable of withstanding instantaneous surge current during equipment startup, and not easily tripped by mistake

Model Description

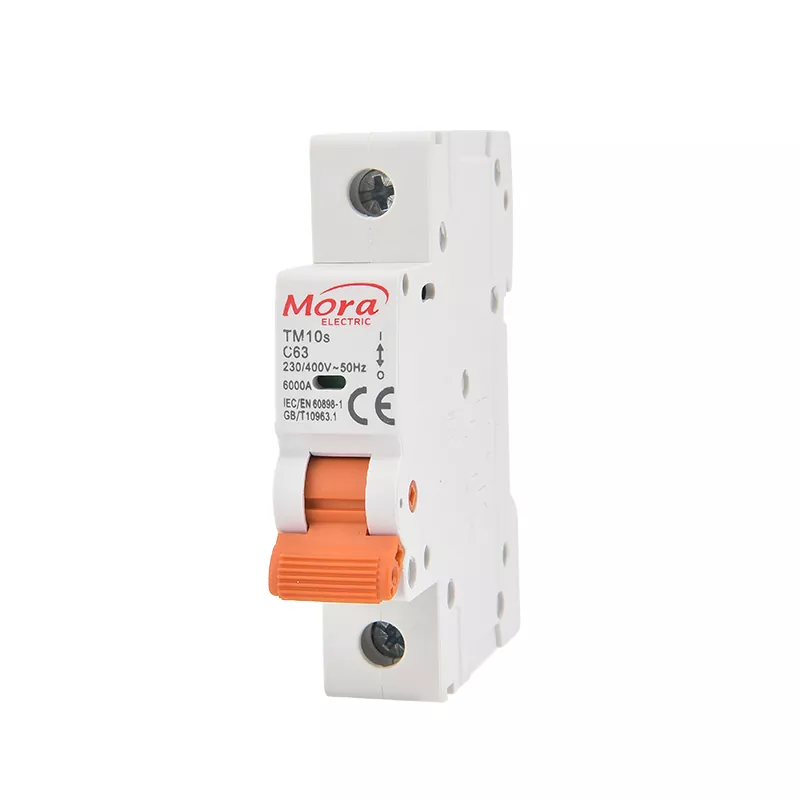

TM10s 1P C63 (1-pole)

Single pole, only cut off the live line L; used for single-phase 220V branch, single load for household/commercial use.

Protection: Overload+Short Circuit Protection

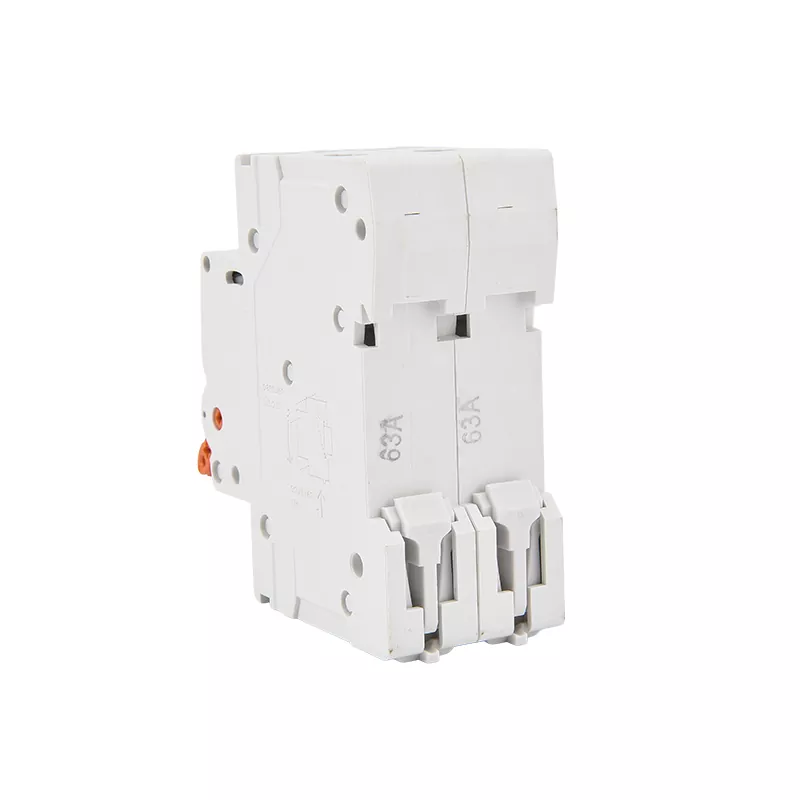

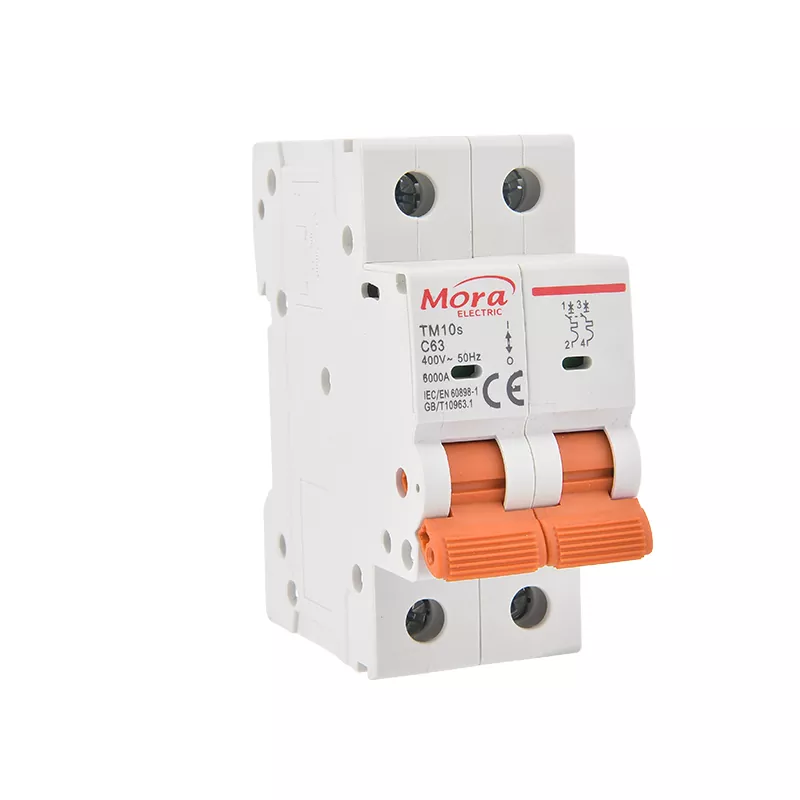

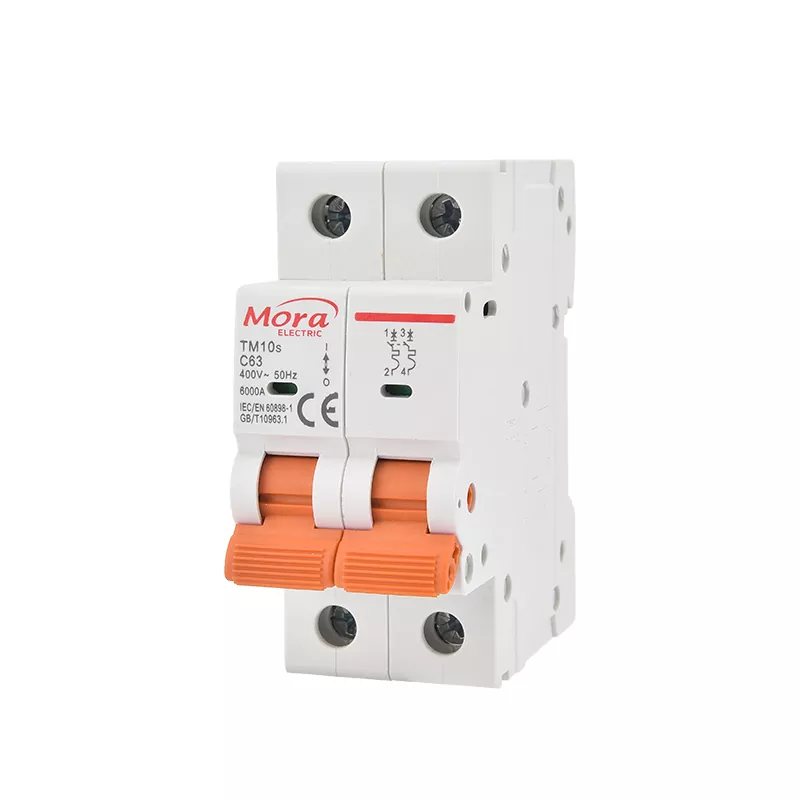

TM10s 2P C63 (2-pole)

Two pole linkage, capable of simultaneously cutting off the live wire L and neutral wire N; single-phase 220V main circuit.

Protection: Overload+Short Circuit Protection

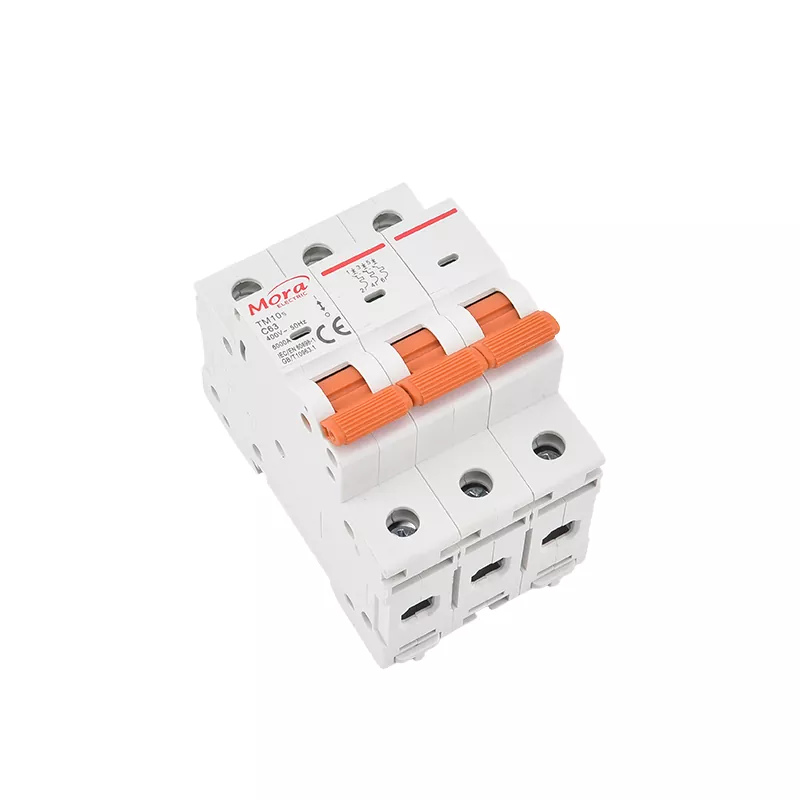

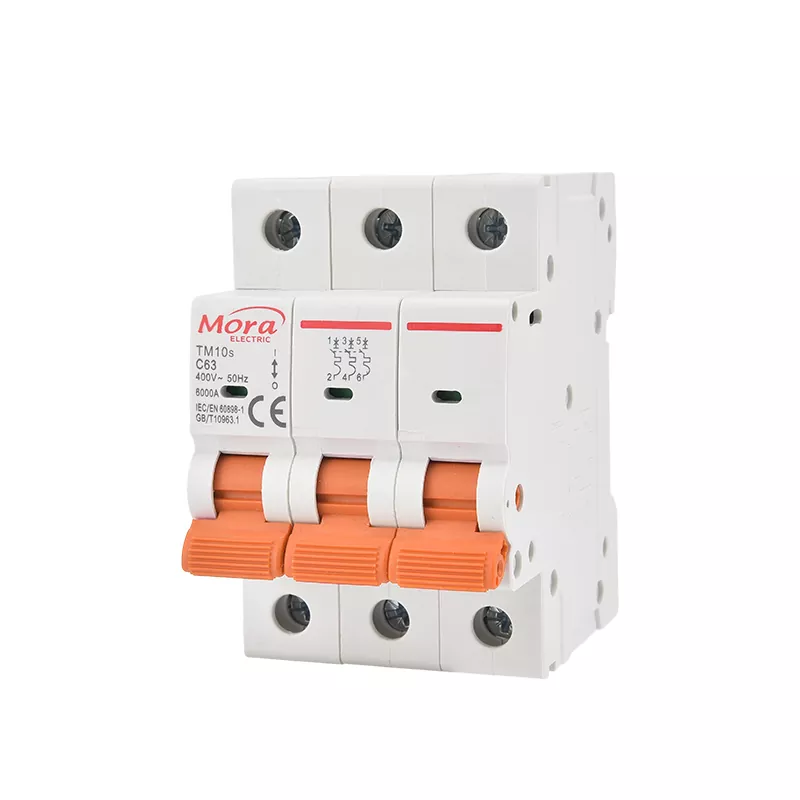

TM10s 3P C63 (3 poles)

Triple pole linkage, cutting off three live wires L1/L2/L3; Three phase 400V motor, three-phase power load.

Protection: Overload+Short Circuit Protection

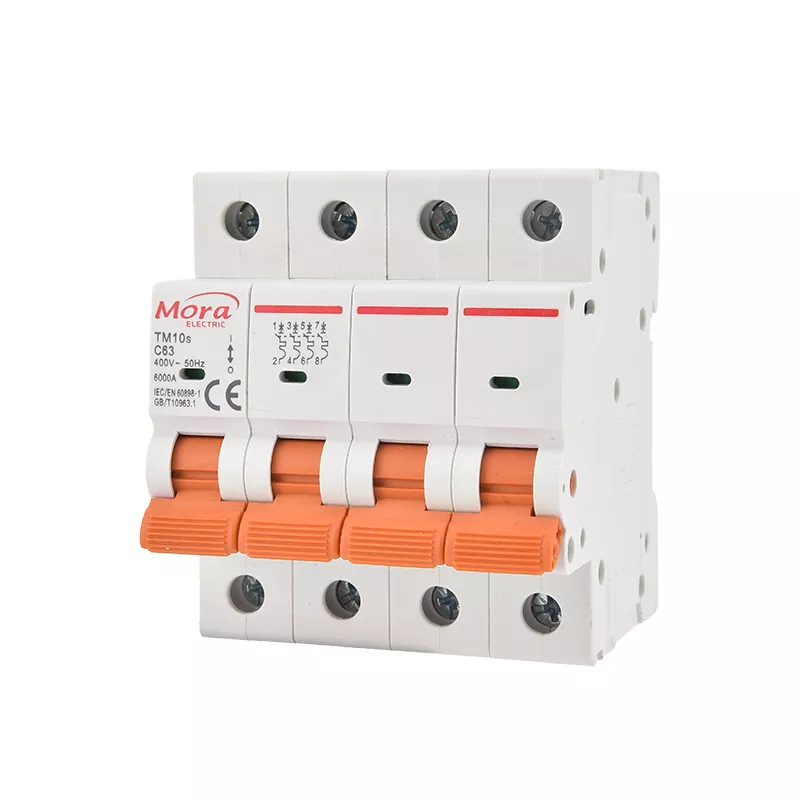

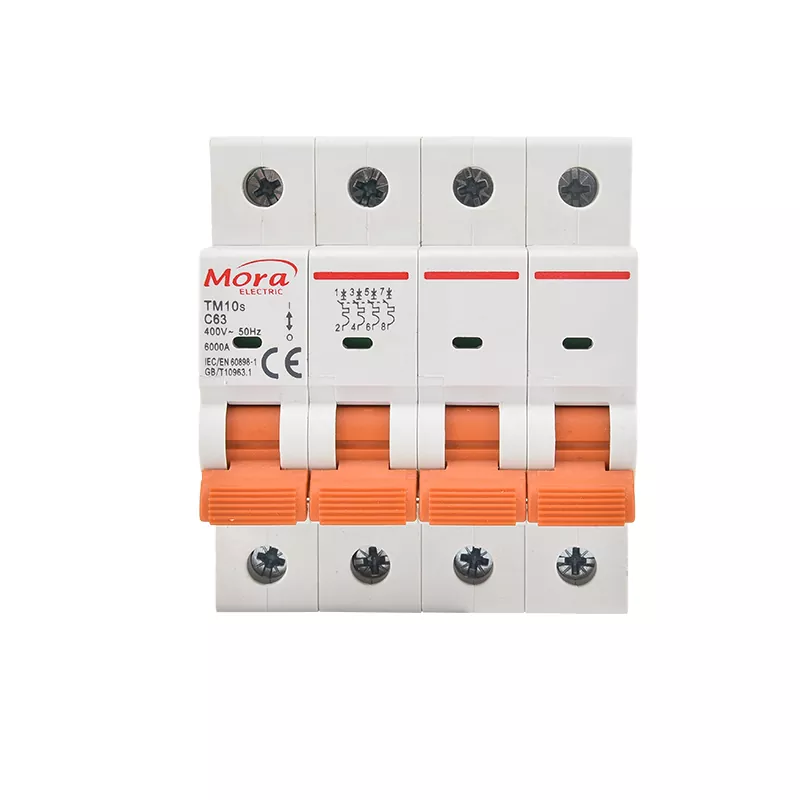

TM10s 4P C63 (4-pole)

Four pole linkage, simultaneously cutting off three live and neutral wires; Three phase four wire 400V main incoming switch.

Protection: Overload+Short Circuit Protection

⚠️ Tip: MCB circuit breakers do not have leakage and electric shock protection. If leakage protection is required, additional leakage accessories should be added, or RCBO integrated leakage circuit breakers should be used.

Application：

Household distribution box, apartment building unit distribution panel, residential decoration electrical renovation.

Office building power distribution, retail store power distribution boxes, hotel room branch circuits, school campus power supply, shopping center lighting and socket circuits.

OEM assembled distribution cabinets, control panel branch circuit protection, PLC cabinet auxiliary circuit protection, and low-voltage switchgear components.

Small workshop power distribution, generator auxiliary circuit, RV/RV electrical system, renewable energy AC side power distribution.

Factory strength and OEM/ODM capability

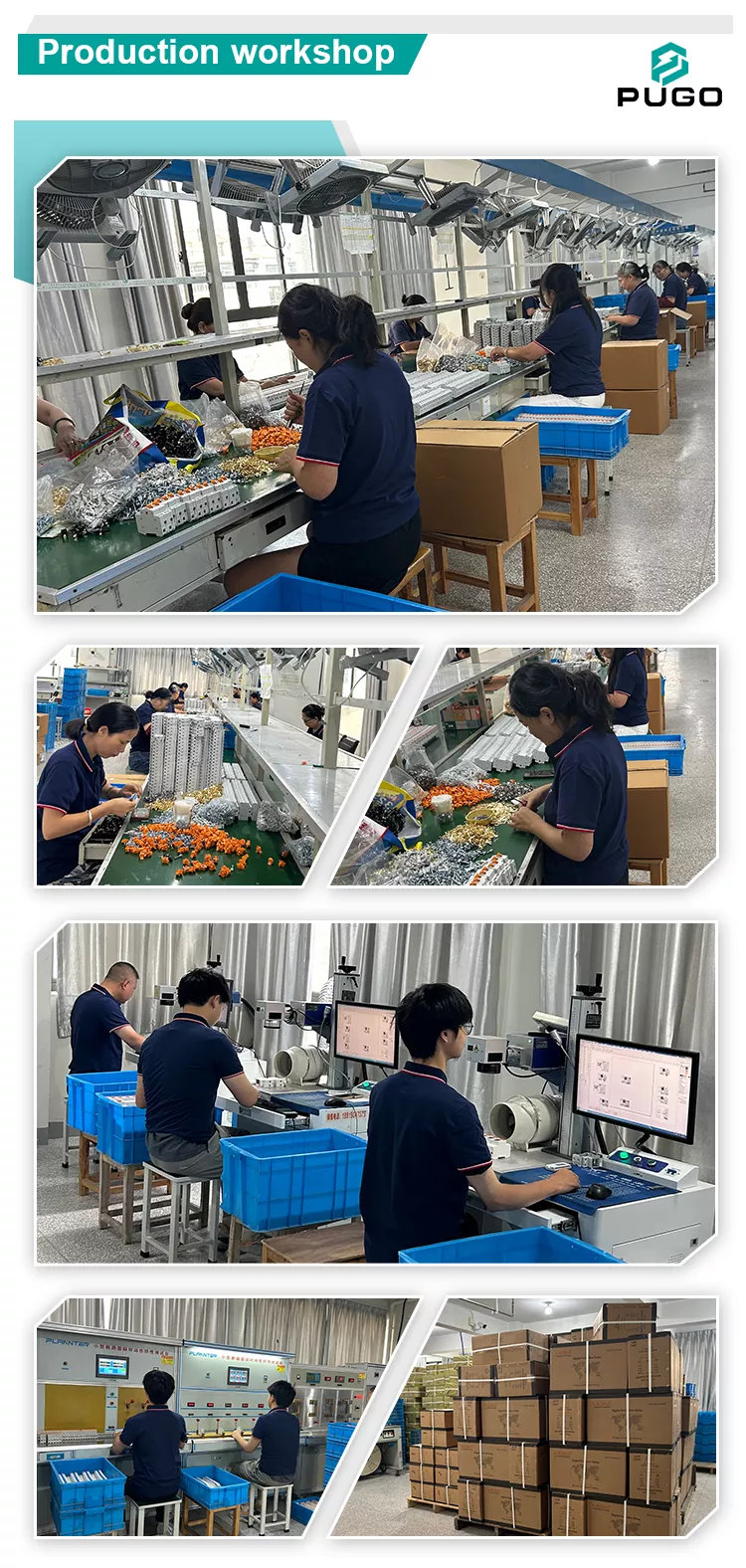

Zhejiang Pugao Electric was established in 2011, with a 5000 square meter factory facility and an independent electrical performance verification workbench certified by ISO 9001 and intellectual property management system for full batch testing. We are not a trading company; The incoming inspection, assembly, and functional testing of core components are all completed internally.

1. Laser mark or transfer print your own brand logo on the MCB Miniature Circuit Breaker casing; Custom markings for model and specifications. We can handle the assembly of mixed rated mixed poles from distributor inventory.

2. Support small-scale trial production for market validation, while also being able to conduct large-scale production of full containers. Adjust production scheduling to adapt to peak season electrical project delivery.

3. Raw material incoming inspection (flame retardant shell, bimetallic sheet, electromagnetic coil components) → Visual inspection of semi-finished product assembly → Thermal magnetic trip laboratory testing of 100 units per batch → Appearance and mechanical lever function inspection of finished products before packaging. We can provide bulk testing reports for your import customs clearance.

Shipping and Trade Terms

Sample order: DHL/FedEx/UPS/TNT door-to-door express delivery.

Small batch bulk: air freight to airport or door-to-door air freight, used for emergency project replenishment.

FCL/LCL sea freight (main wholesale solution): Container loading is completed in the factory warehouse. Supports container loading and full container loading.

Delivery cycle reference:

Inventory standard specifications for neutral products: 7-12 working days

OEM proprietary label marking: 18-28 business days, depending on the order quantity.

Installation and Maintenance Guide

1. Install onto a standard 35mm DIN rail; Ensure that the clamp is securely locked to avoid loose installation vibration issues.

2. When wiring, follow the local national electrical installation regulations; Tighten the terminal screws according to the rated torque value. Excessive tightening may damage the casing, while insufficient tightening may pose a risk of terminal overheating.

3. After fault tripping: Before manually resetting the operating lever, identify and eliminate the root cause of the circuit fault. Do not repeatedly force reset without troubleshooting.

4. Regular visual inspection: Check the position and status of the lever, ensure that there are no cracks/burn marks on the housing, and that the terminals are not overheated or discolored.

5. The mechanical electrical service life of MCB Miniature Circuit Breaker is limited. If abnormal tripping is found with carbon marks on the shell, unreliable reset, or no obvious load fault, please replace the device.
