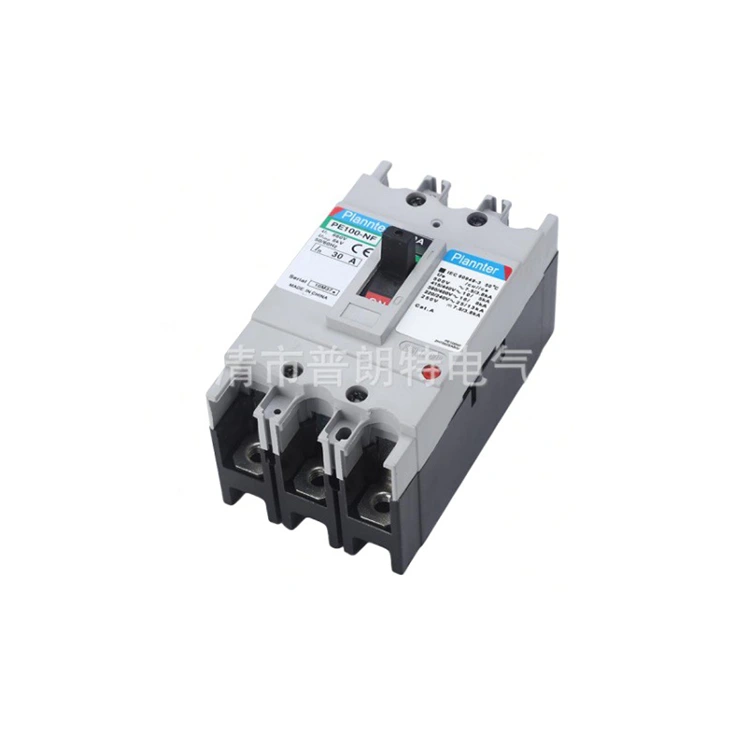

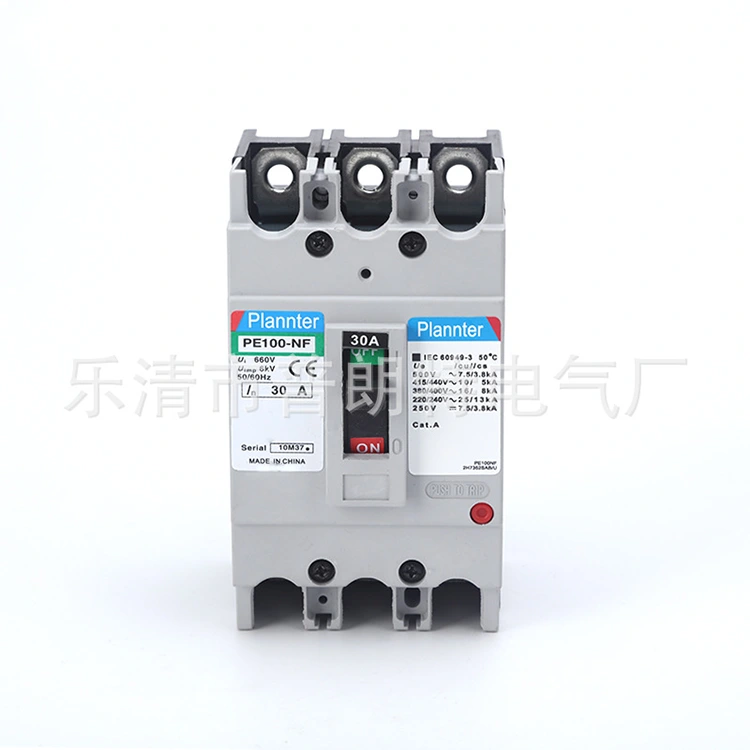

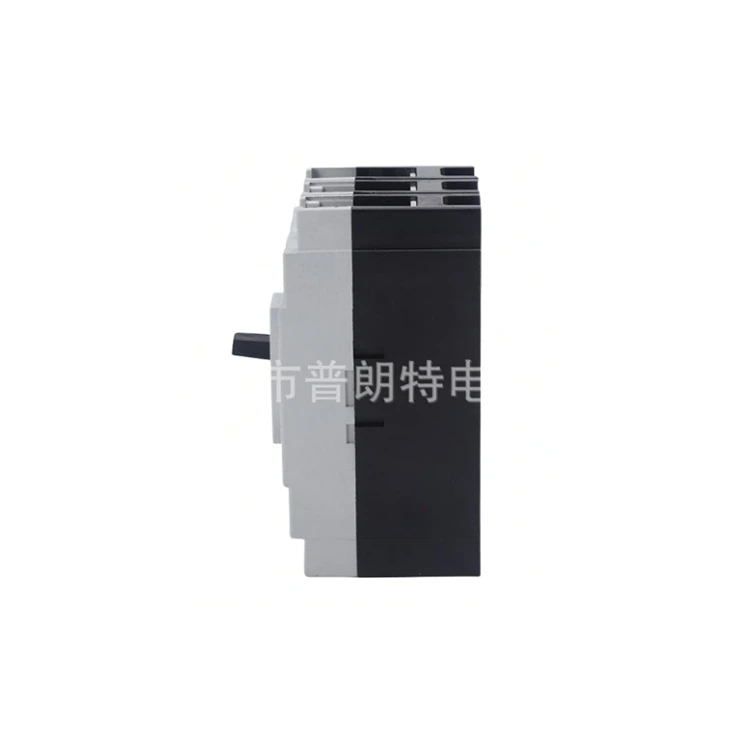

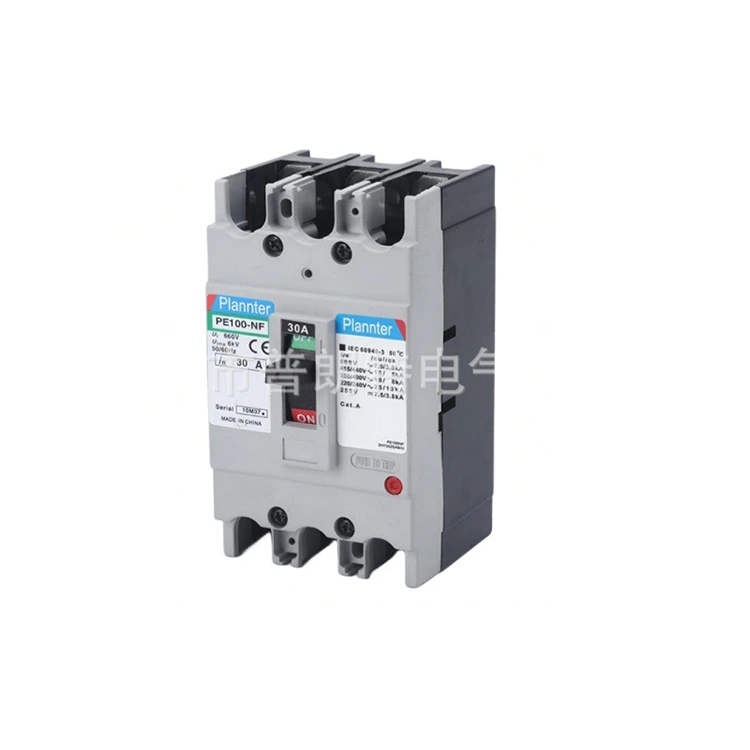

AC Magnetic Trip Circuit Breaker

What Is a AC Magnetic Trip Circuit Breaker?

The AC Magnetic Trip Circuit Breaker is a protective device engineered for three-phase, three-wire AC systems. It utilizes a thermal-magnetic trip unit to guard against overloads and short circuits. Unlike traditional black breakers, this unit features a premium white finish, making it the ideal choice for projects where visual clarity, cleanliness, and professional aesthetics are paramount.

Why Choose the White Housing Design?

The white color of our PUGAO Electric breaker is not just cosmetic—it serves critical functional roles:

• Enhanced Visibility: In poorly lit distribution boards or light-painted enclosures, the white housing stands out, allowing technicians to locate and operate the breaker faster for safer maintenance.
• Thermal Management: The light-colored casing reflects more thermal energy than black plastic, potentially helping to manage temperature rise during extended operation.
• Aesthetic Consistency: Through precise injection molding, we achieve even, stable coloring with minimal variation, ensuring a clean look that fits upscale environments.

Ideal Applications

Market data indicates a shift towards light-colored components in modern installations. Our AC Magnetic Trip Circuit Breaker is frequently selected for:

• Data Centers: Coordinates perfectly with the light-gray cabinets found in 9 out of 10 server rooms, supporting a clean visual environment.
• Cleanrooms (Pharma & Food): Fits GMP guidelines which often specify light interiors to maintain hygiene visibility and cleanliness standards.
• Upscale Commercial Spaces: Ideal for hotels and office electrical rooms where bright, tidy spaces are preferred over industrial black boxes.

Manufacturing Process & Quality

At Pugao(Plannter Electric), we apply stricter criteria to the white series to ensure both beauty and safety:

• Arc Extinguishing System: Built with multiple iron grid plates and high-temperature resistant insulation materials to reliably extinguish arcs.
• Precision Mechanics: All metal components are precision-stamped and treated for anti-corrosion, ensuring responsive switching operations.
• Strict Visual Inspection: From material selection to the final inspection, the white housing undergoes rigorous visual checks to deliver a pure, uniform finish.
