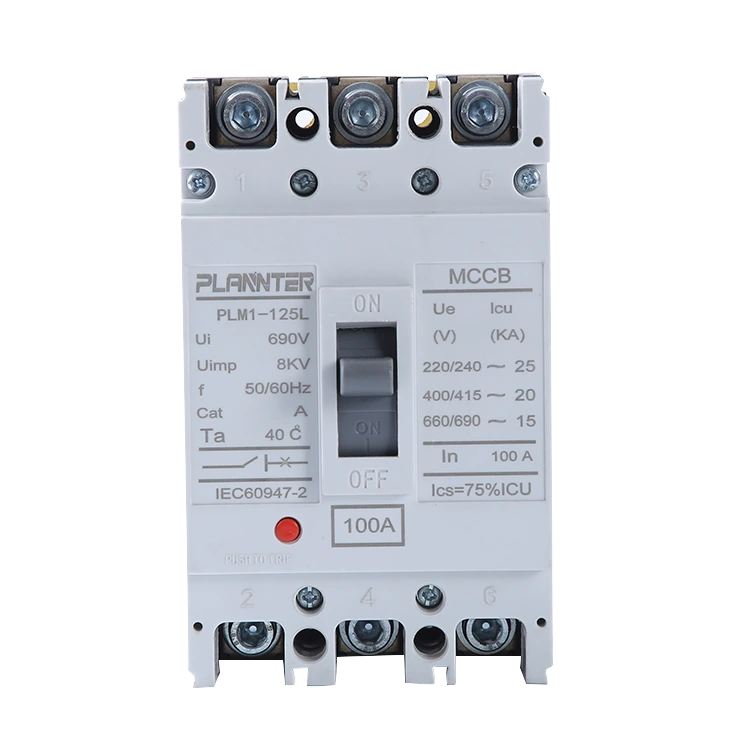

Plug In Base Mounted Molded Case Switch Device
Pugao supplies Plug In Base Mounted Molded Case Switch Device for electrical system integrators, switchgear manufacturers, and maintenance-focused power distribution projects where breaker replacement efficiency directly affects operational downtime. Unlike conventional fixed-mounted MCCB installation methods that require extensive conductor disassembly during replacement, the plug-in base structure provides a more convenient connection approach for inspection, replacement, and maintenance procedures.
In large distribution cabinets, the circuit breaker is not only a protection component but also a service point that may require periodic inspection or replacement during the equipment lifecycle. When a fixed installation design connects the breaker directly with internal copper bars, maintenance teams may need to remove multiple connections before accessing the device, increasing shutdown time and labor requirements.
The Plug In Base Mounted Molded Case Switch Device provides a practical solution for customers designing modular electrical distribution systems where maintenance accessibility and equipment service efficiency are important considerations.
Maintenance Efficiency Becomes Critical In Modern Distribution Systems
For industrial facilities, commercial buildings, and infrastructure projects, electrical downtime creates direct operational costs.
Traditional fixed-mounted MCCB installation may create several maintenance challenges:
Breaker replacement requires disconnecting multiple electrical connections.
Maintenance work requires longer shutdown preparation.
Heavy copper busbar structures increase service difficulty.
Replacement operations require more labor and technical coordination.
For equipment manufacturers and electrical contractors, improving maintenance accessibility during the design stage can reduce future service complexity.
A plug-in mounting solution changes the maintenance approach by separating the breaker body from the fixed connection base. This allows technicians to isolate and remove the breaker unit more efficiently during planned maintenance or replacement.
Plug-In Base Design Simplifies Breaker Replacement Process
The key value of the Plug-In Base structure is not only installation convenience but also lifecycle maintenance efficiency.
Compared with fixed-mounted solutions, the plug-in configuration provides:
Reduced Connection Disassembly
Traditional installation may require removing:
Cable terminals.
Copper bar connections.
Internal cabinet wiring.
With a plug-in base design, the breaker can be separated from the dedicated mounting interface, reducing unnecessary dismantling work.
Faster Maintenance Access
During inspection or replacement:
The breaker can be isolated from the system.
Maintenance personnel can access the switching device more efficiently.
Replacement procedures become easier to standardize.
Improved Cabinet Modularity
For switchgear manufacturers, modular components simplify:
Cabinet design.
Future upgrades.
Spare part replacement planning.
The Plug In Base Mounted Molded Case Switch Device helps manufacturers create distribution equipment with better serviceability.
Designed For Switchgear Builders Planning Long-Term Equipment Service
A distribution cabinet is expected to operate for many years. During its service life, components may require:
Routine inspection.
Electrical testing.
Fault replacement.
Capacity upgrades.
Because of this, experienced equipment manufacturers consider maintenance access before production.
The plug-in structure is suitable for:
Industrial Distribution Cabinets
Industrial users often operate continuously and require shorter maintenance windows.
Commercial Power Systems
Commercial facilities need efficient maintenance methods to minimize disruption.
Customized Electrical Assemblies
Panel builders can integrate plug-in MCCB structures into projects requiring:
Easier component replacement.
Standardized cabinet layouts.
Simplified service procedures.
For OEM customers, the Plug In Base Mounted Molded Case Switch Device provides flexibility during both manufacturing and after-sales maintenance stages.
Structural Design Supporting Reliable Electrical Connection
Although the plug-in structure focuses on maintenance convenience, connection reliability remains essential.
Pugao MCCB components are manufactured with attention to:
Stable Mechanical Connection
The plug-in interface is designed to maintain secure mechanical positioning between the breaker and mounting base.
This supports:
Reliable installation.
Consistent positioning.
Reduced installation variation.
Durable Internal Components
Pugao MCCB products use engineering materials and electrical components selected for low-voltage distribution applications.
Features include:
Engineering plastic housing for insulation and mechanical protection.
Silver-tungsten alloy contacts for stable current conduction.
Thermal-magnetic protection structure for overload and short circuit protection.
Production Quality Control
Zhejiang Pugao Electric Power Co., Ltd. has specialized in low-voltage electrical equipment manufacturing since 2011.

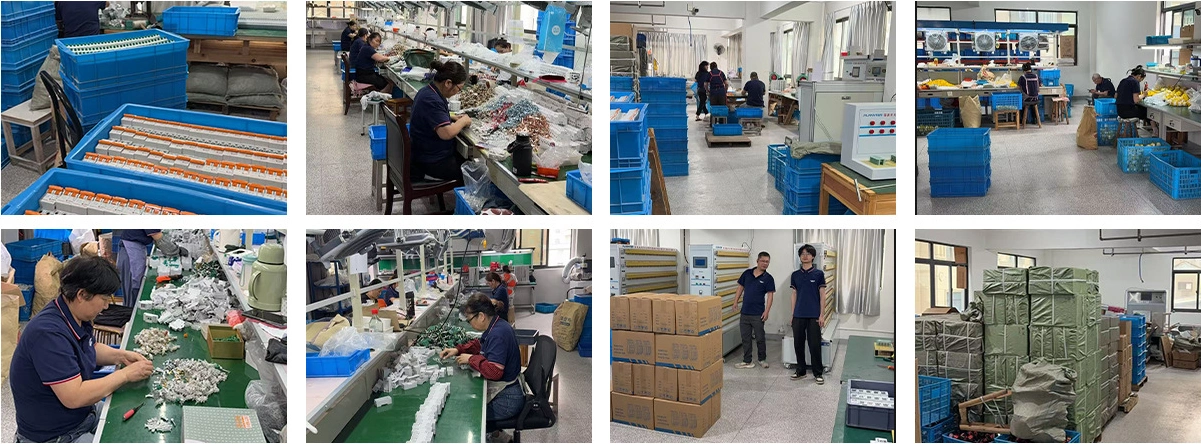

The company operates production resources including:
Automated small circuit breaker semi-production lines.
Product inspection and validation workstations.
Automated laser marking equipment.
Packaging production lines.
Multiple assembly production lines.
These manufacturing capabilities support consistent production for overseas electrical distributors and equipment manufacturers.
Why Plug-In MCCB Structure Provides More Value Than Fixed Installation?
Different mounting structures influence maintenance efficiency and equipment lifecycle cost.
|
Comparison Item
|
Fixed Mounted MCCB
|
Plug-In Base Mounted MCCB
|
|
Replacement Method
|
Requires more connection removal work
|
Breaker separates from mounting base
|
|
Maintenance Time
|
Usually longer
|
More efficient service process
|
|
Cabinet Flexibility
|
Limited after installation
|
Easier future replacement planning
|
|
Application Focus
|
Standard installations
|
Maintenance-oriented distribution systems
|
For projects where downtime and maintenance labor are important factors, plug-in mounting provides additional value beyond basic circuit protection.
Pugao Supports Customized Electrical Component Supply For Global Buyers
For international buyers, choosing a MCCB supplier requires evaluation of both product structure and manufacturing capability.
Zhejiang Pugao Electric Power Co., Ltd. (Plannter Electric) provides:
Low-voltage electrical equipment manufacturing experience.
OEM/ODM cooperation.
Batch production support.
International export experience.
Established in 2011, Pugao has developed production capabilities for power distribution switches, control equipment, motors, instrumentation, and circuit protection components.
The company completed a new factory building of approximately 5,000 square meters in 2020 and passed ISO9001 international quality system certification in 2024.
For customers requiring customized labeling, project supply, or long-term cooperation, Pugao provides manufacturing support based on established production processes.
Compliance Support For International Electrical Projects
Electrical equipment buyers often require compliance documents during supplier evaluation.
Pugao provides relevant verification documents including:
|
Document
|
Organization
|
|
Verification of EMC Compliance
|
GTS
|
|
Declaration of Conformity – EMC Directive
|
—
|
|
Verification of Compliance
|
Eurofins
|
|
Electromagnetic Compatibility Directive Attestation of Conformity
|
UDEM
|
|
Certificate of Compliance
|
ECM
|
These documents support overseas customers reviewing supplier qualifications for electrical component procurement.
Applications Requiring Faster MCCB Maintenance Access
The Plug In Base Mounted Molded Case Switch Device is suitable for electrical systems where maintenance efficiency is an important design consideration.
Industrial Power Distribution
Used in factories and production facilities where reducing equipment downtime is important.
Commercial Building Distribution
Suitable for power systems requiring convenient inspection and replacement procedures.
Switchgear Manufacturing Projects
Applicable for panel builders producing modular distribution cabinets.
Electrical Equipment OEM Integration
Suitable for manufacturers requiring easier component replacement during equipment lifecycle management.
FAQ For Plug-In MCCB Procurement
What is the main advantage of a plug-in MCCB structure?
The main advantage is improved maintenance efficiency by allowing the breaker unit to be separated from its mounting base without extensive dismantling of the complete cabinet connection system.
Does plug-in installation reduce maintenance time?
Yes. Compared with fixed-mounted structures, plug-in designs can simplify breaker replacement procedures and reduce labor requirements.
Is the breaker replaced while the system is energized?
No. Electrical isolation procedures must always be followed before maintenance or replacement operations.
Can Pugao provide OEM supply?
Yes. Pugao supports OEM/ODM cooperation for overseas distributors, switchgear manufacturers, and electrical equipment suppliers.
What information should buyers provide?
Recommended information includes:
MCCB specifications.
Application environment.
Cabinet design requirements.
Quantity requirements.
Customization needs.
For switchgear manufacturers and electrical system integrators seeking easier maintenance solutions, the Plug In Base Mounted Molded Case Switch Device provides a modular MCCB installation approach that improves service efficiency and reduces unnecessary replacement work.
