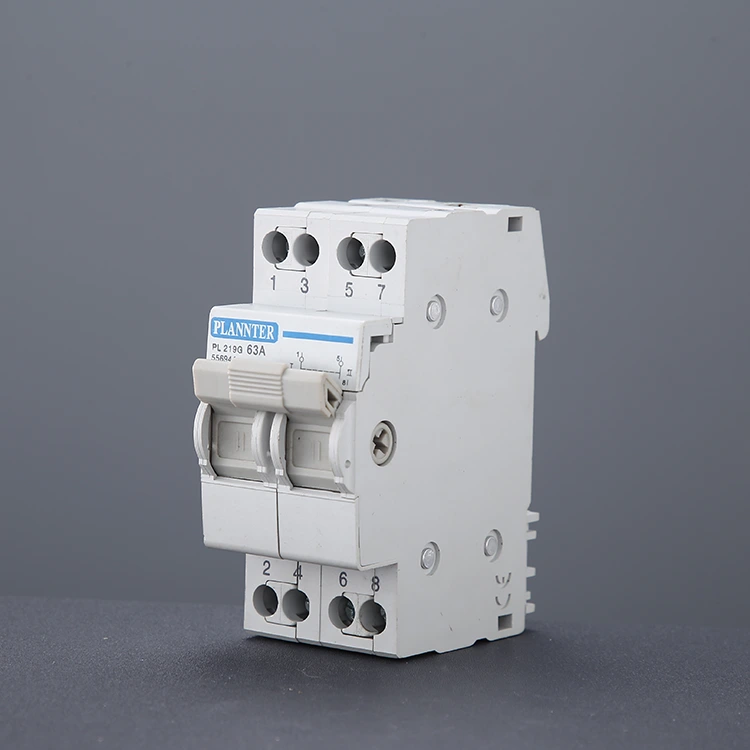

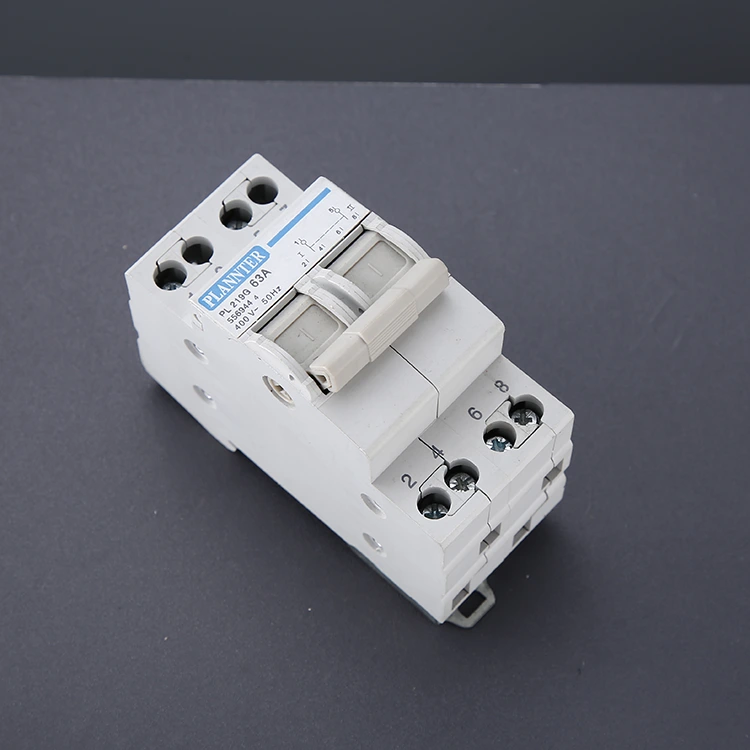

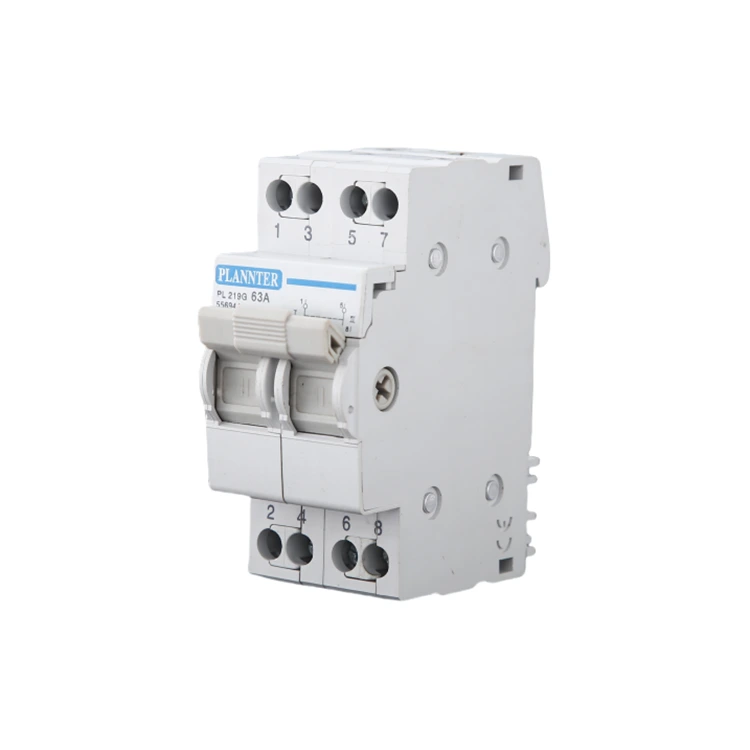

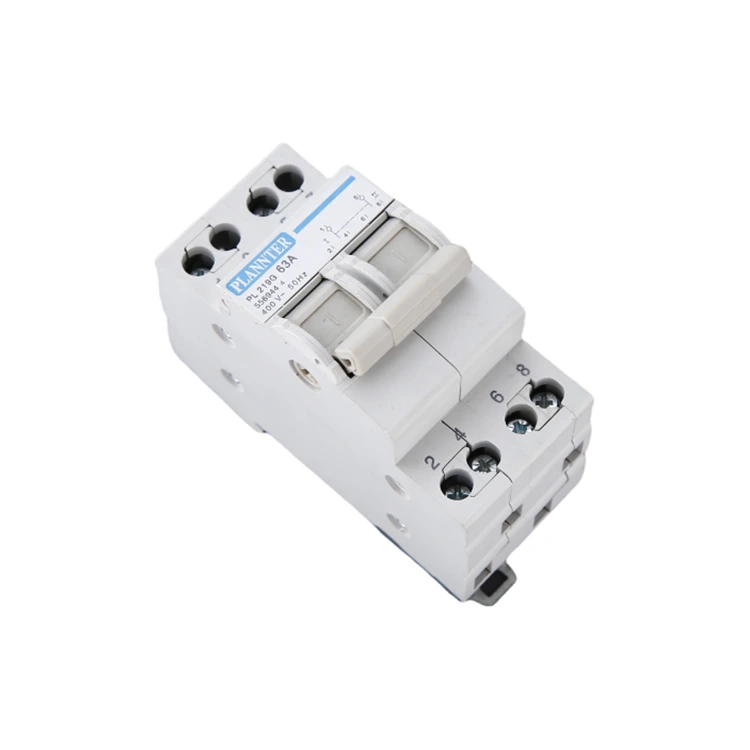

What Is a Modular Electrical Change Switch?

A Modular Electrical Change Switch (often referred to as a Manual Transfer Switch or MTS) is a safety device used to switch a load circuit between two power sources. It performs four key functions: connecting, disconnecting, switching, and isolating.

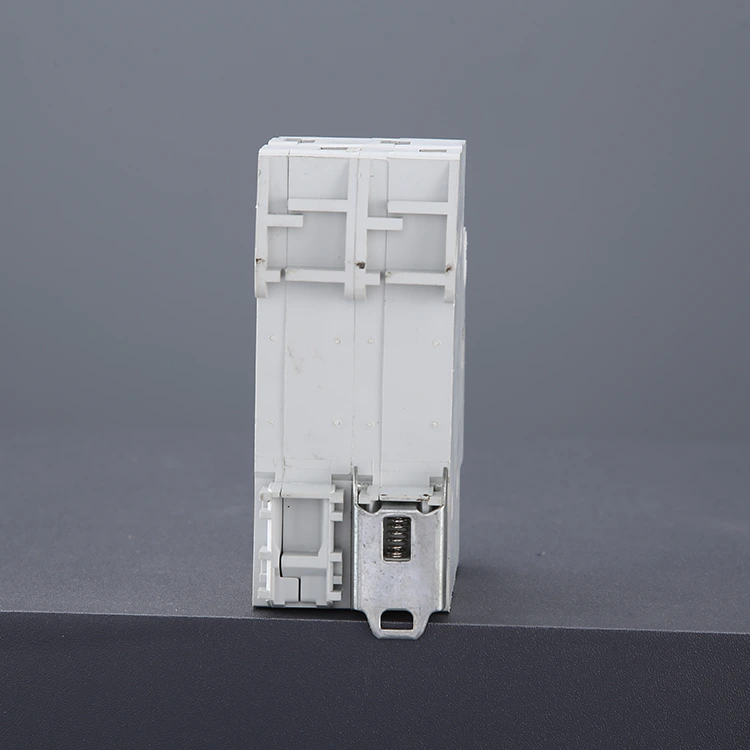

Engineered for AC 50Hz/60Hz systems with a rated voltage of 230V～400V, this switch is DIN-rail mounted for easy integration into standard distribution boxes. It ensures that when the common power supply fails, the system can be manually switched to a backup generator or secondary supply, maintaining reliability for sensitive equipment.

The Modular Electrical Change Switch is very suitable for industrial and residential use, applicable to AC 50HZ/60HZ, rated working voltage 230V～400V, rated current 40/63A dual circuit power supply system. When the common power supply fails, the power supply can be manually switched to the backup power supply or generator to ensure the reliability and safety of power supply. It is especially suitable for places where power failure is not allowed, such as fire fighting, hospitals, shopping malls, military projects, high-rise buildings, banks, TV stations, etc.

Instructions for use

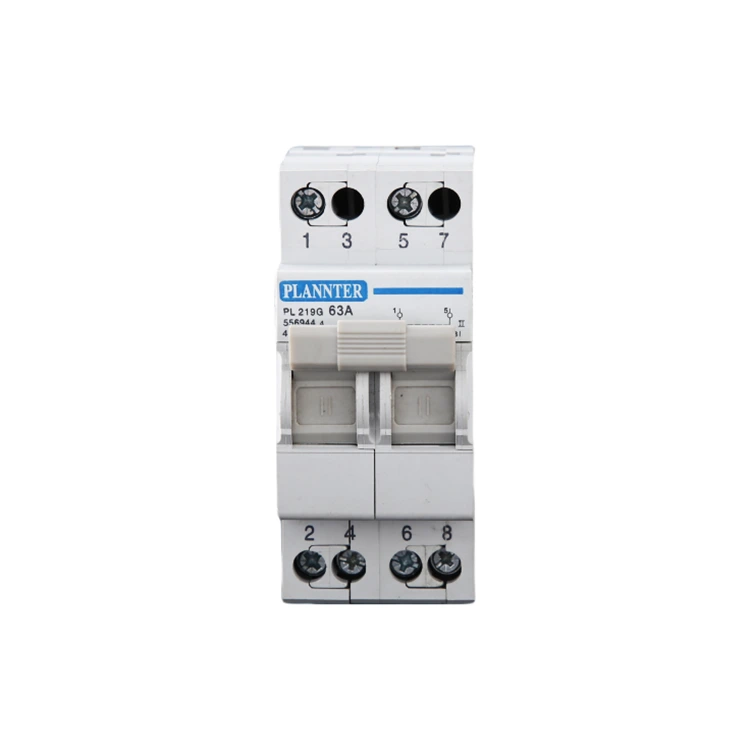

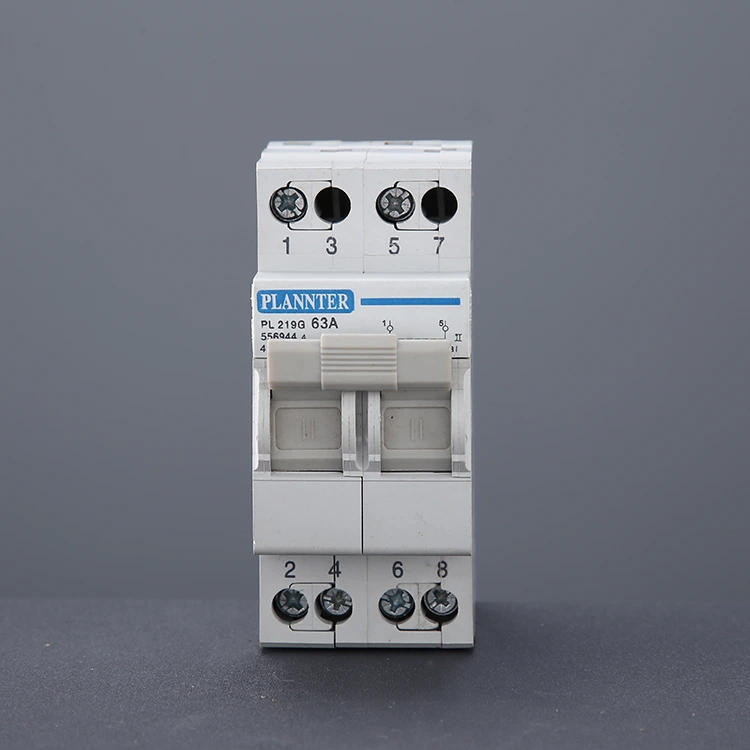

2P MTS: 1. When the handle of Modular Electrical Change Switch is hit to I position: 1 and 2 are connected, 5 and 6 are connected. 2. When the handle is hit to II position: 1 and 4 are connected, 5 and 8 are connected. 3. When the handle is hit to the middle position: both groups are disconnected. 4P MTS: 1.

4P MTS: 1. When the handle of Modular Electrical Change Switch hits the I position: 1 and 2 are connected, 5 and 6 are connected, 9 and 10 are connected, 13 and 14 are connected. 2. When the handle hits the II position: 1 and 4 are connected, 5 and 8 are connected, 9 and 12 are connected, 13 and 16 are connected. 3. When the handle hits the intermediate position: two sets of disconnections.

The position of the inlet and outlet lines can be adjusted according to actual needs. Note: The upper inlet and lower outlet may not be set, and the lower inlet and upper outlet must be adopted when used for double power switching.

How to buy Pugao(Plannter Electric) Modular Electrical Change Switch?

Whether you are an electrical complete plant, engineering contractor, system integrator, or overseas distributor, you can cooperate with us in the following ways:

Send Inquiry: Provide the required model (such as PL 219G), quantity and special requirements.

Getting Quotation: Our sales team will provide detailed quotation, product manuals and certification documents within 4 hours.

Confirm order: Sign the contract and pay 30% prepayment (support T/T, L/C, Western Union).

Quality inspection and shipment: 100% full inspection, provide test report, arrange sea or air transportation.

After-sales support: provide installation guidance, technical training and long-term maintenance services.
